Neofactory Straight Risers - Chrome / 2, 4-1/2 or 6-1/2 inches

Straight chrome aluminum risers, supplied as a left/right pair in the selected height.

Specifications

• Brand: Neofactory
• Manufacturer part number: 000802
• Manufacturer part number: 000274
• Manufacturer part number: 000275
• Chrome finish; aluminum body.
• Riser mounting thread: 1/2-13; riser body diameter approximately 29 mm.

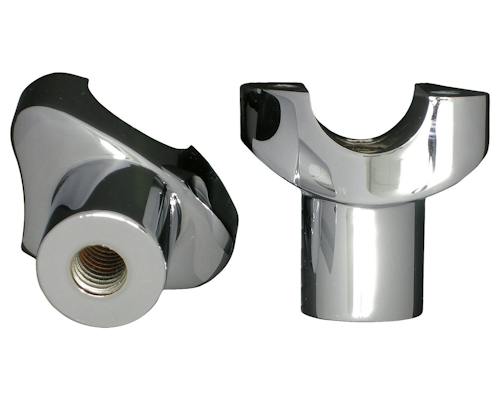

• 2-inch, MPN 000802: height approximately 50 mm.

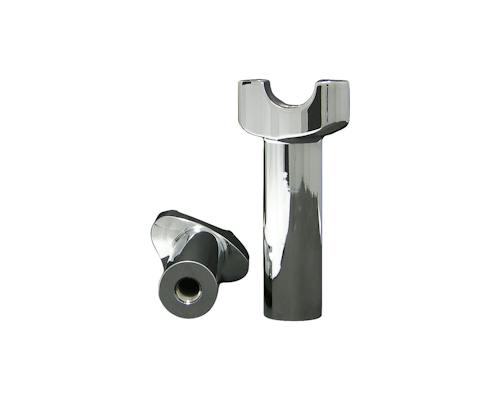

• 4-1/2-inch, MPN 000274: height approximately 110 mm; OEM reference 56063-82A.

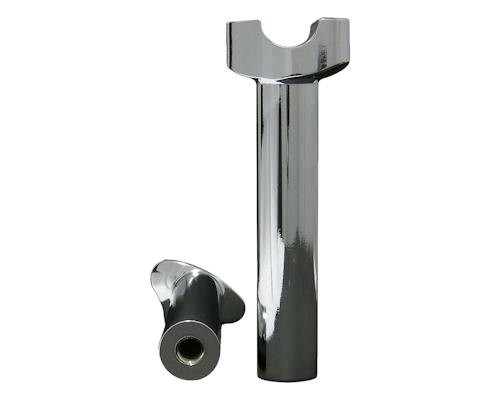

• 6-1/2-inch, MPN 000275: height approximately 165 mm.
• All stated heights are measured from the base to the handlebar center.

Fitment and installation

• For 1-inch handlebar assemblies with separate compatible risers and top clamp.
• Not compatible with Springer, V-ROD or standard Deuce mounts. Deuce requires a dedicated solid mount.
• Not compatible with fat handlebars, handlebar clamp integrated with the upper triple clamp, or integrated digital-meter/top-clamp assemblies.
• Excluded applications include 2007-on FLSTF, XL1200X, FXS, 2018-on FXBB, FXBR and FXST, and Revolution Max models.

Package contents

• Two risers, one left/right pair.

Supply and delivery

• Overseas warehouse. Estimated delivery: 7–10 business days.

Installation notes

• Tighten the top-clamp bolts evenly. Overtightening may damage the riser body.
• Coating or thread condition may require reworking the threads with a tap or die.
• Check handlebar clearance to the fuel tank before use.
• 4-1/2-inch 000274 and 6-1/2-inch 000275: original riser bolts cannot be used; compatible bolts must be obtained separately.
• 2-inch 000802 requires a separate top clamp. Top clamps whose bolt positions are parallel when viewed from the seat, rather than a reverse-trapezoid pattern, are not compatible.
• 2-inch 000802: check for interference from projections on the underside of the top clamp; minor removal of the interfering projection may be required.
