Neofactory Stitched Pillion Pad - Black / 2 Sizes / 3 Stitch Patterns

Black pillion pad for a custom installation. Choose the full pad dimensions and stitch pattern, then check fender curvature, mounting surface and secure attachment.

Specifications

• Brand: Neofactory
• Manufacturer part number: 011083
• Manufacturer part number: 011084
• Manufacturer part number: 011085
• Manufacturer part number: 011086
• Manufacturer part number: 011087
• Manufacturer part number: 011088
• Synthetic-leather cover and steel base; both black.
• 42 mm option: approximately 220 × 120 × 42 mm (length × width × thickness).
• 52 mm option: approximately 255 × 145 × 52 mm (length × width × thickness).
• Thickness excludes the suction cups.

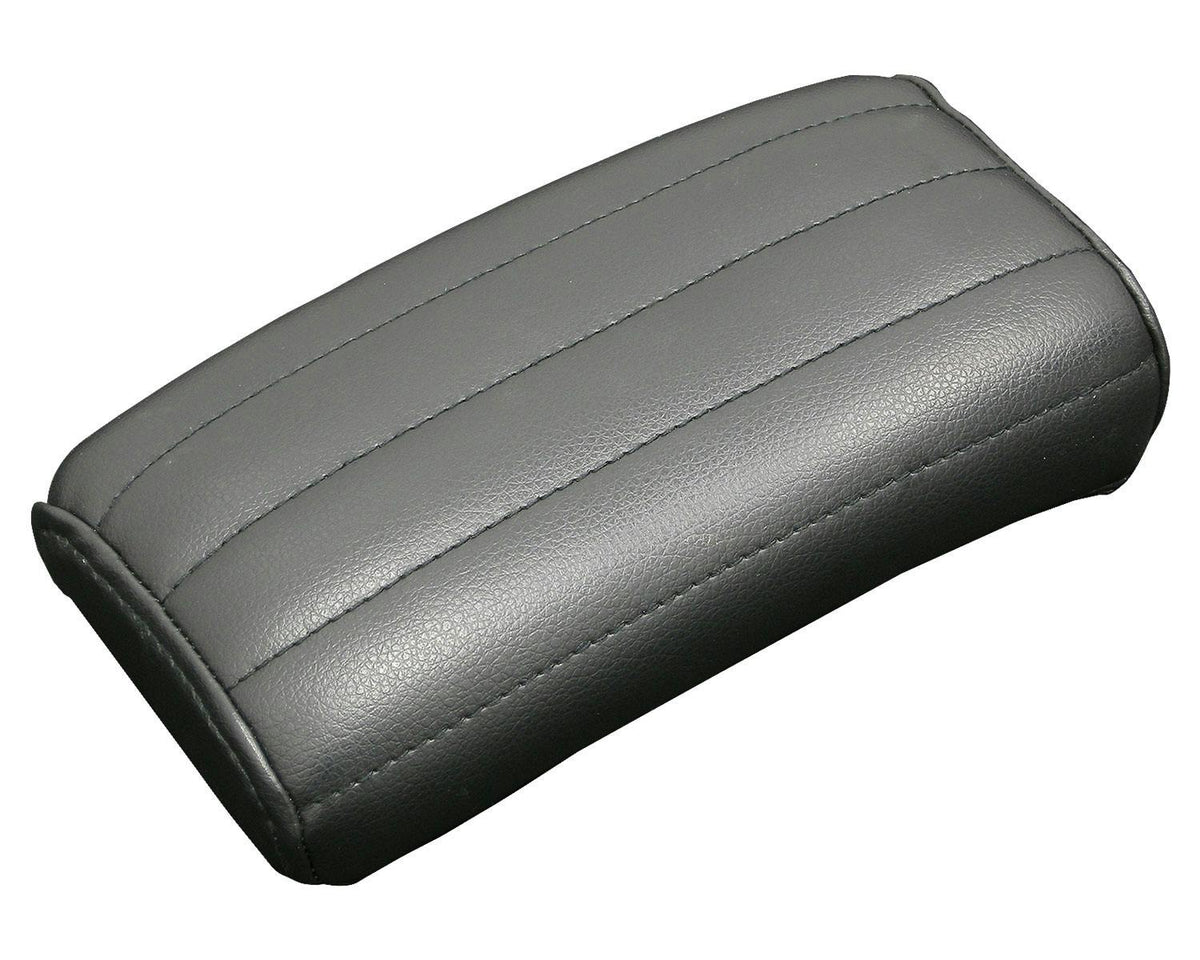

• 011083: 220 × 120 × 42 mm / Vertical tuck-and-roll.

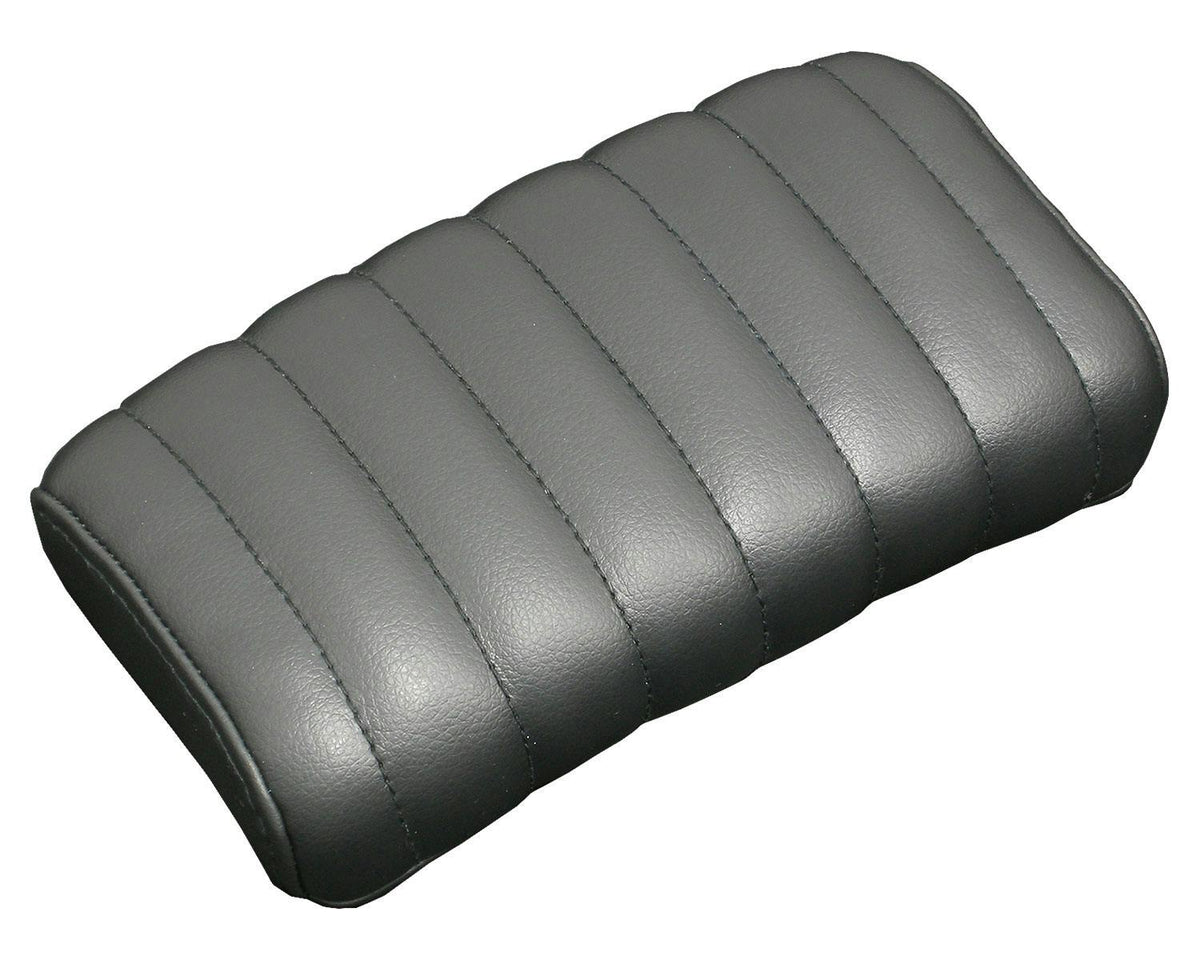

• 011084: 220 × 120 × 42 mm / Horizontal tuck-and-roll.

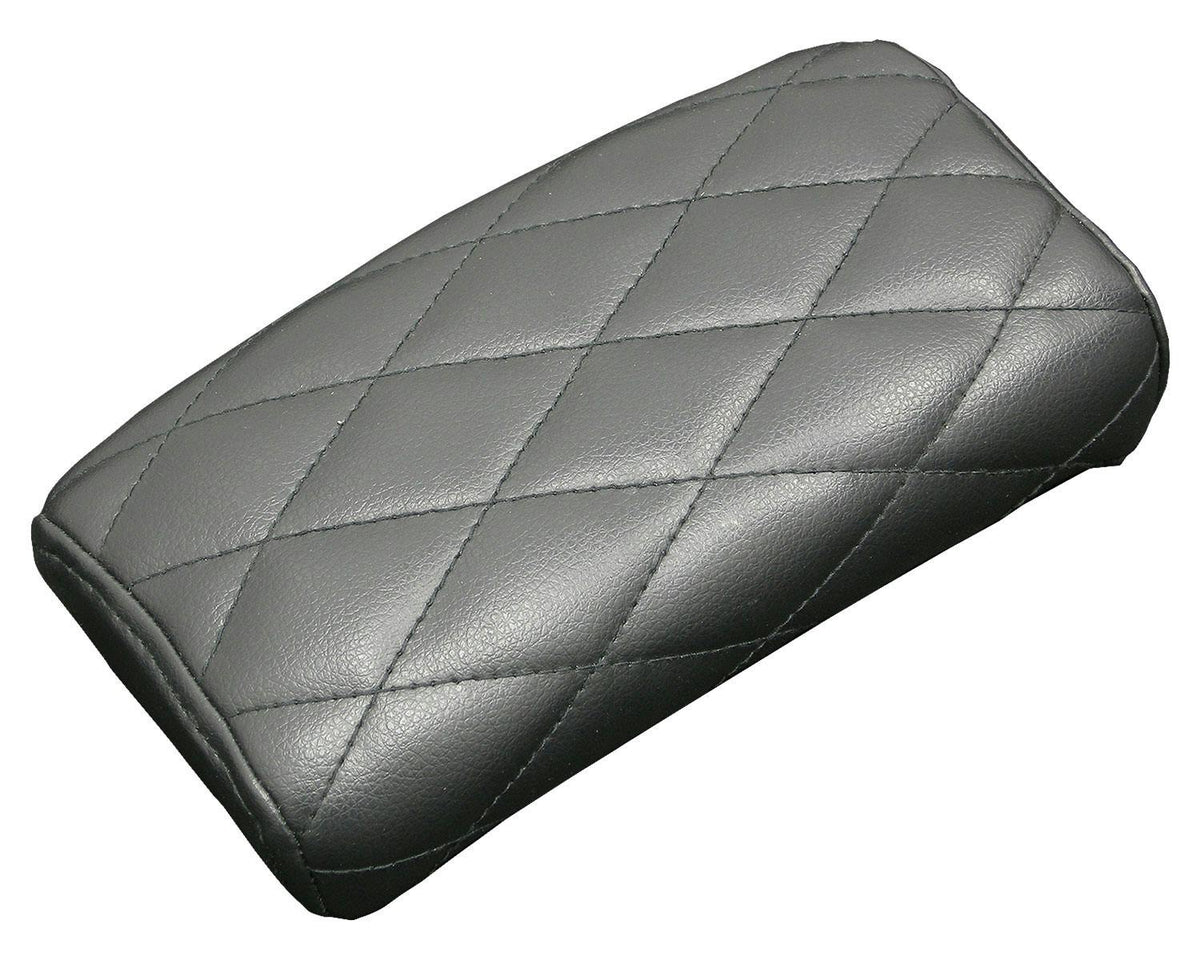

• 011085: 220 × 120 × 42 mm / Diamond stitch.

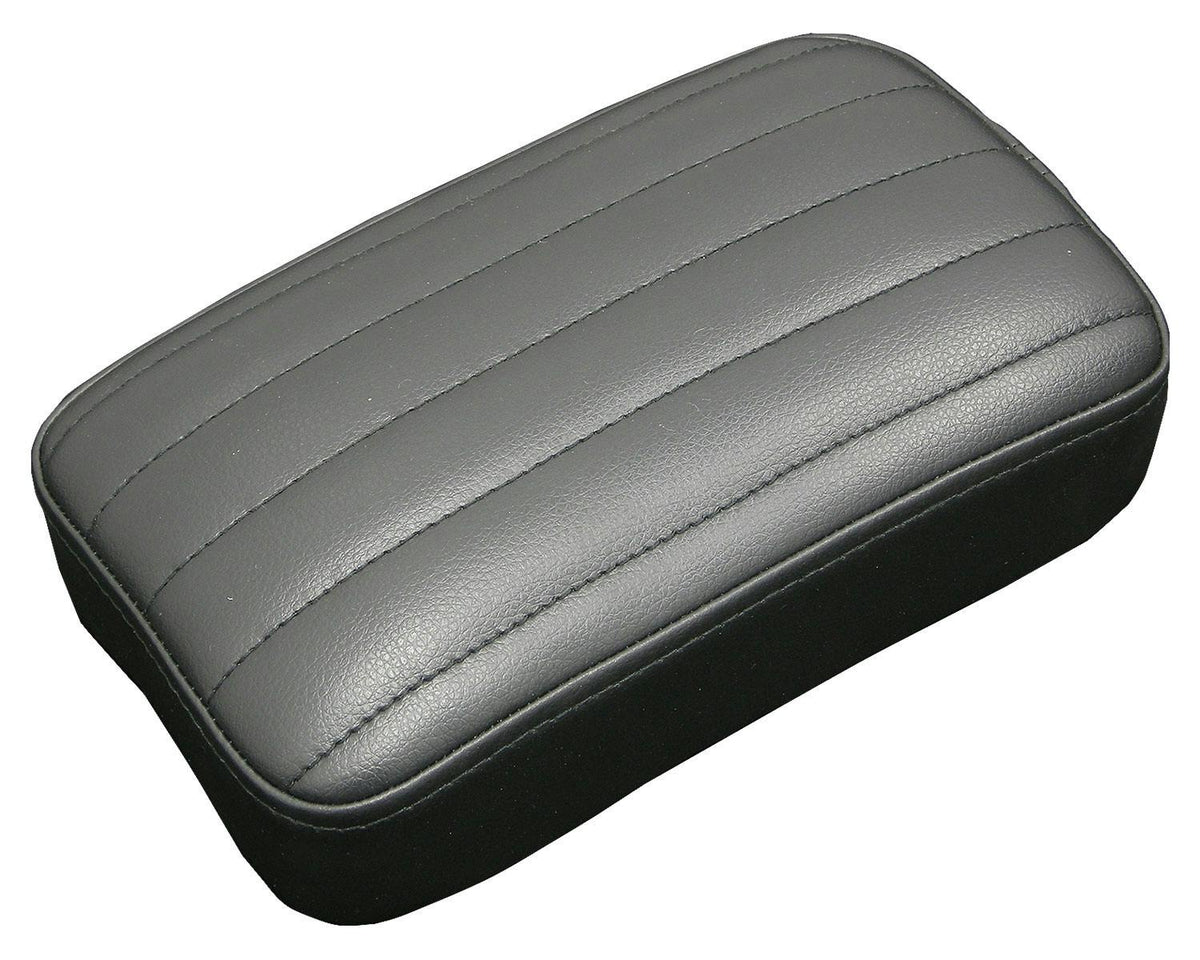

• 011086: 255 × 145 × 52 mm / Vertical tuck-and-roll.
• 011087: 255 × 145 × 52 mm / Horizontal tuck-and-roll.

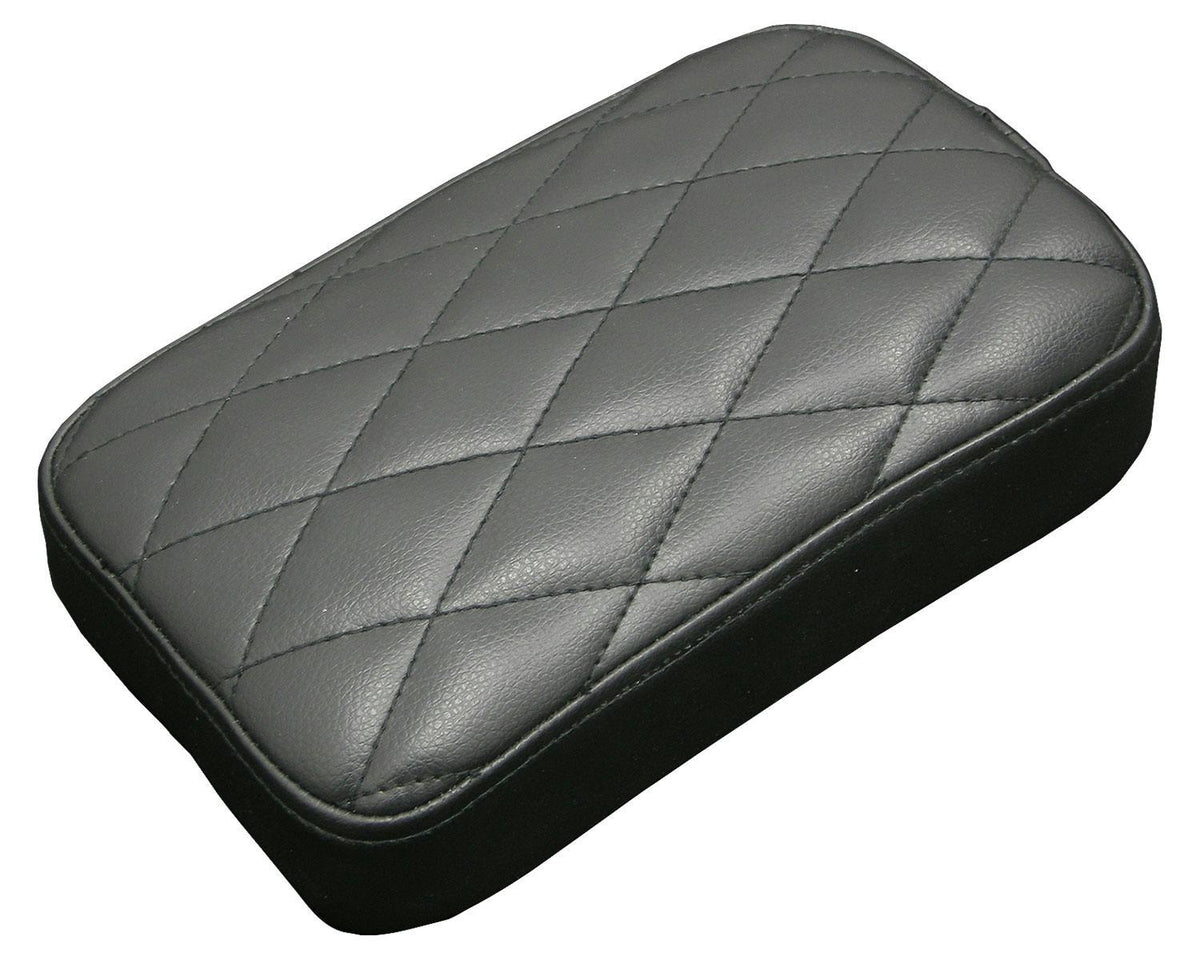

• 011088: 255 × 145 × 52 mm / Diamond stitch.

Fitment and installation

• Universal custom installation; verify pad footprint, fender curvature and mounting surface.
• The underside suction cups provide attachment; paint finish can reduce adhesion.
• Modification may be needed to match the fender curvature.
• The base has threaded holes for mounting stays. A custom bolted mounting arrangement requires checking the actual hole spacing and thread.

Package contents

• One pillion pad.

Supply and delivery

• Overseas warehouse; estimated delivery in 7–10 business days.
• The supplier lists this item as discontinued when remaining stock sells out.

Installation notes

• The manufacturer states that this product is not supported for Japanese vehicle inspection.
