Neofactory Ape Handlebars - Chrome / 1 in / Dimples

Chrome steel Ape handlebars with wiring-relief dimples. Choose the model using its full dimensions, mounting section and control conditions.

Features

• Standard Low / Medium / High — A chrome steel Ape handlebar with wiring relief dimples. Choose Low, Medium or High using the full dimensions below.

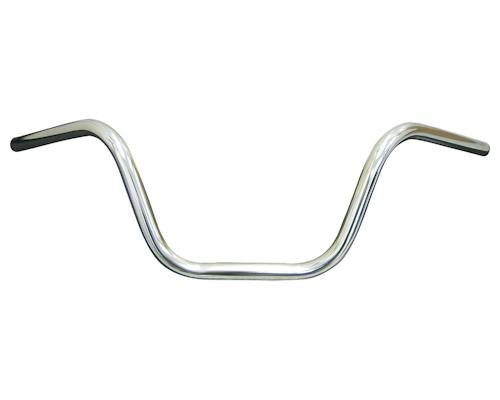

• 000835 — Chrome steel Narrow Medium handlebar with wiring-relief dimples, supplied as one complete bar.

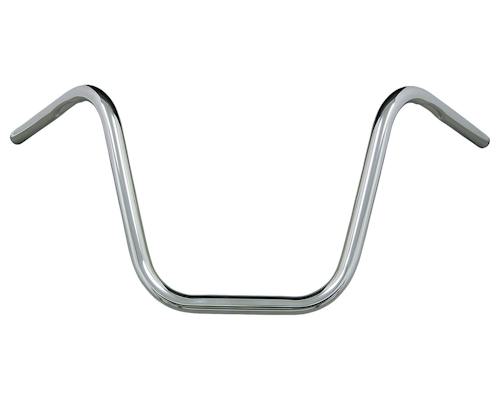

• 000836 — Chrome steel Narrow High handlebar with wiring-relief dimples, supplied as one complete bar.

Specifications

• Brand: Neofactory
• Manufacturer part number: 000125
• Manufacturer part number: 000126
• Manufacturer part number: 000127
• Manufacturer part number: 000835
• Manufacturer part number: 000836
• Chrome steel; 1-inch handlebar diameter.

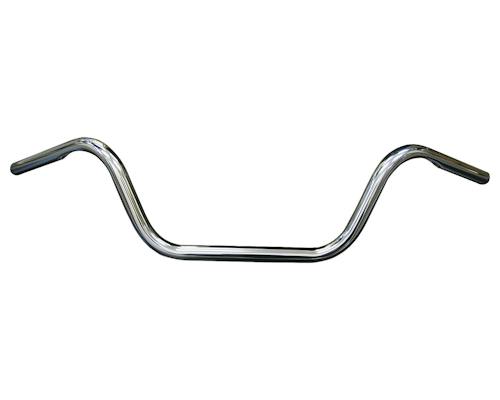

• 000125 — Low: width approx. 855 mm; height approx. 185 mm; Pullback approx. 175 mm; End Rise approx. 130 mm; mounting width approx. 175 mm.

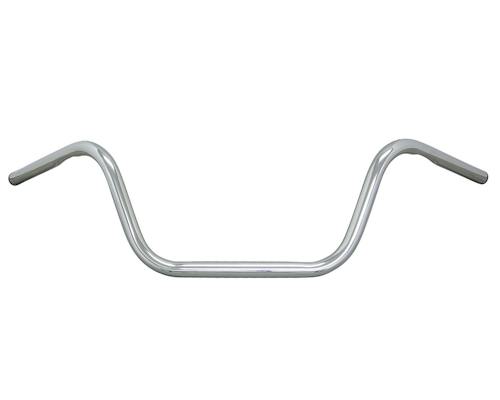

• 000126 — Medium: width approx. 855 mm; height approx. 215 mm; Pullback approx. 195 mm; End Rise approx. 162 mm; mounting width approx. 175 mm.

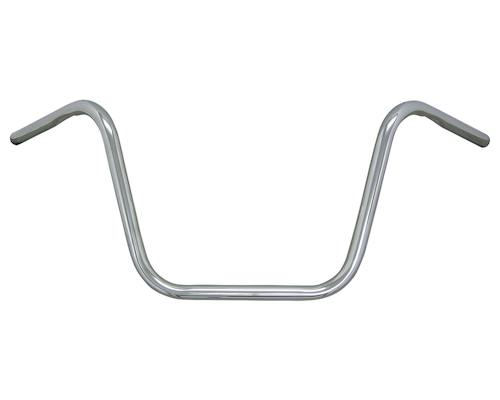

• 000127 — High: width approx. 875 mm; height approx. 315 mm; Pullback approx. 175 mm; End Rise approx. 280 mm; mounting width approx. 175 mm.
• 000835 — Width approx. 780 mm; height approx. 190 mm; Pullback approx. 190 mm; End Rise approx. 180 mm; mountable center width approx. 130 mm.
• 000835 — Chrome steel; 1-inch riser-clamp diameter.
• 000836 — Width approx. 820 mm; height approx. 300 mm; Pullback approx. 175 mm; End Rise approx. 253 mm; mountable center width approx. 135 mm.
• 000836 — Chrome steel; 1-inch riser-clamp diameter.

Fitment and installation

• For Harley models using 1-inch handlebars, subject to matching riser clamp width, switch housings and throttle. Check the selected bar dimensions and cable routing.
• 000835 — Match the actual 1-inch riser clamp, mounting span, switch housings and throttle assembly. The 130 mm center section is available clamp width, not riser-bolt center spacing.
• 000836 — Match the actual 1-inch riser clamp, mounting span, switch housings and throttle assembly. The 135 mm center section is available clamp width, not riser-bolt center spacing.

Package contents

• One handlebar in the selected height version.
• 000835 — One complete handlebar.
• 000836 — One complete handlebar.

Supply and delivery

• Overseas warehouse. Estimated delivery: 7–10 business days.

Installation notes

• Electronic throttle models require modification; this is not a direct bolt-on TBW handlebar.
• The handlebar has wiring relief dimples near the switch housings. The manufacturer specifies non-dimpled bars through 1982 and dimpled bars for later models; check your controls before ordering.
• 000835 — Electronic throttle models require modification; this is not a direct-fit TBW handlebar.
• 000835 — Wiring-relief dimples are present. The manufacturer specifies non-dimpled bars through 1982 and dimpled bars thereafter; verify the actual motorcycle's wiring and controls. Dimples do not establish internal-routing holes.
• 000836 — Electronic throttle models require modification; this is not a direct-fit TBW handlebar.
• 000836 — Wiring-relief dimples are present. The manufacturer specifies non-dimpled bars through 1982 and dimpled bars thereafter; verify the actual motorcycle's wiring and controls. Dimples do not establish internal-routing holes.
