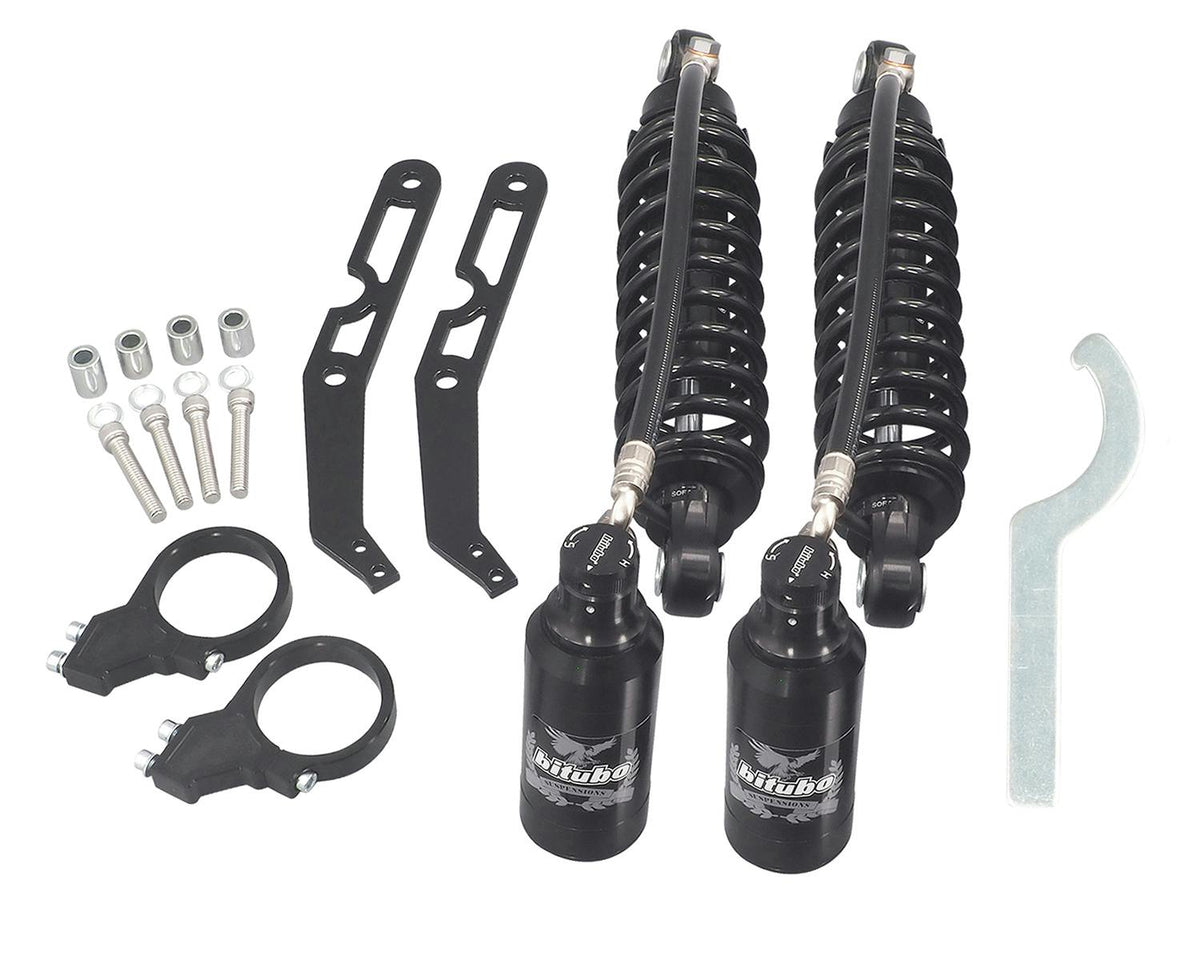

Bitubo WMM Rear Shock Absorbers - 316 mm / Dark Edition | HD051WMM02V2

Adjustable rear shock-absorber pair for the specified Harley-Davidson applications.

Specifications

• Brand: Bitubo
• Manufacturer part number: HD051WMM02V2
• Series: WMM
• Length: 316 mm
• Edition: Dark Edition
• Adjustments: Spring preload, rebound damping, compression damping

Fitment and installation

• Harley-Davidson FLHRC, 2014–2019.
• Harley-Davidson FLHRXS, 2017–2018.
• Harley-Davidson FLHTCU, 2017–2019.
• Harley-Davidson FLHTK, 2014–2016.
• Harley-Davidson FLHTK, 2017–2019.
• Harley-Davidson FLHX, 2014–2019.
• Only the supported model/year scope above is stated. Other applications remain unverified; omission does not establish incompatibility. Match the actual motorcycle and check all installation clearances before ordering.

Package contents

• Two rear shock absorbers, supplied as one set.
• Application-specific fitting instructions, suspension manual and spring-preload adjustment tool.

Installation notes

• Keep the supplied mounting spacers fully seated during installation.
• Install the correct right and left shocks with the head-tube fittings facing the inside of the vehicle; route the hose against the supplied brackets to avoid saddlebag contact.
• Complete final upper and lower shock-mount tightening with both wheels resting on the ground, using the vehicle manufacturer’s specified torque.
• The manufacturer requires installation exclusively by a specialised workshop. Consult the exact application manual; contact a Bitubo technician if its instructions are unclear.
• For vehicles without a Tour-Pak only. Select the corresponding Tour-Pak-equipped application for vehicles fitted with a Tour-Pak.
• Follow the exact application manual for shock orientation and reservoir-hose routing; check clearance to the saddlebags.
• Check rear-fender and belt-guard clearance and the alignment of the upper and lower shock mounts.
• A change in ride height may require a different side stand.
• Product photographs are generic to the model and do not show the exact application. Spring dimensions and preload position vary by vehicle; supplied spacer types may vary by production batch.
