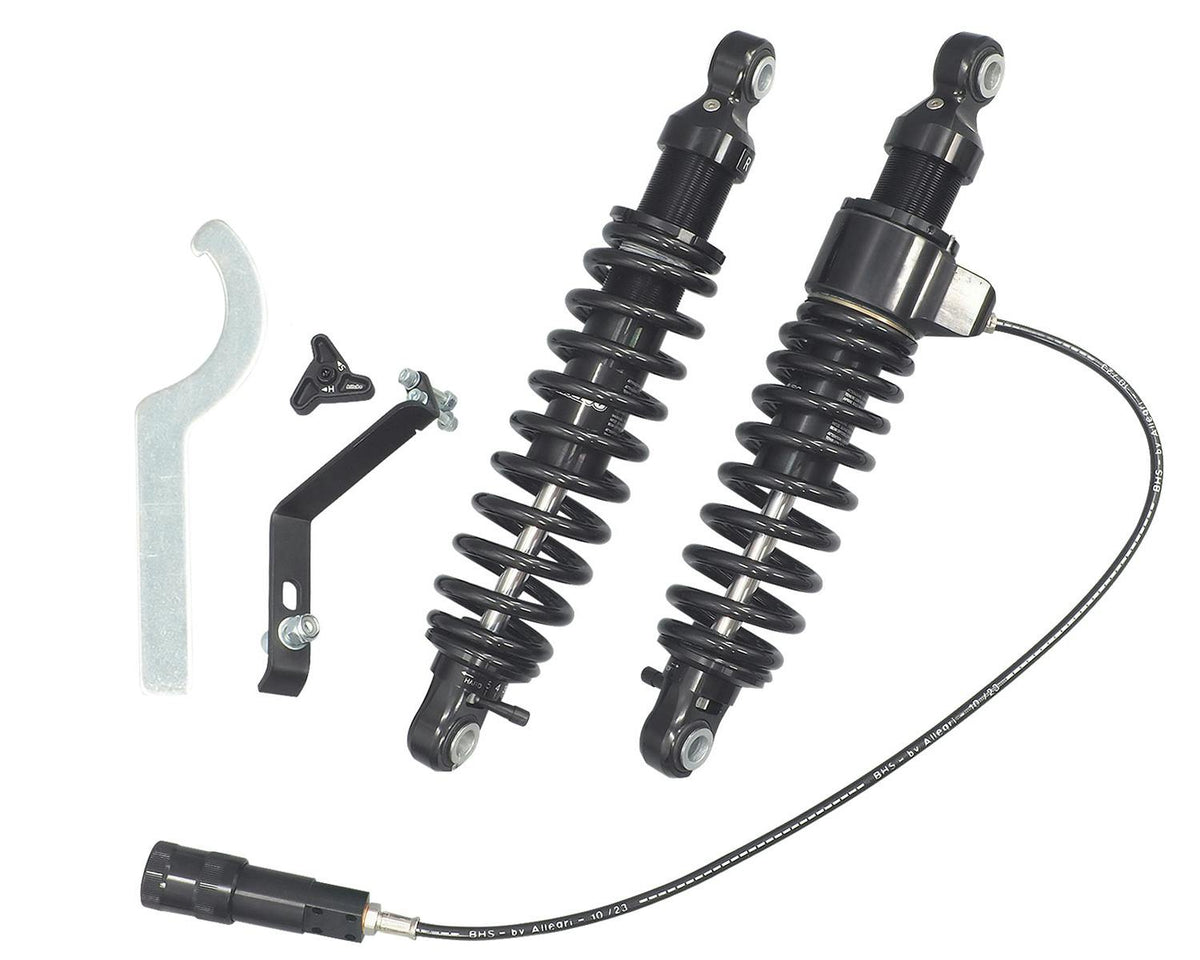

Bitubo WME Rear Shock Absorbers - 316 mm / Dark Edition | HD051WME22V3

Adjustable rear shock-absorber pair for the specified Harley-Davidson applications.

Specifications

• Brand: Bitubo
• Manufacturer part number: HD051WME22V3
• Series: WME
• Length: 316 mm
• Edition: Dark Edition
• Adjustments: Spring preload, rebound damping
• Hydraulic spring-preload adjustment

Fitment and installation

• Harley-Davidson FLHR, 2002–2005.
• Harley-Davidson FLHRC, 2014–2019.
• Harley-Davidson FLHTCU, 2009–2013.
• Harley-Davidson FLHTCU, 2014–2016.
• Harley-Davidson FLHTCU, 2017–2019.
• Harley-Davidson FLHTK, 2010–2013.
• Harley-Davidson FLHTK, 2014–2016.
• Harley-Davidson FLHTK, 2017–2019.
• Only the supported model/year scope above is stated. Other applications remain unverified; omission does not establish incompatibility. Match the actual motorcycle and check all installation clearances before ordering.

Package contents

• The WME22V3 set is supplied with one hydraulic preload adjuster.
• Two rear shock absorbers, supplied as one set.

Installation notes

• Keep the supplied mounting spacers seated. Route the single hydraulic preload adjuster behind the frame tubes, following the exact manual.
• Mount the adjuster on the left-frame bracket using the illustrated M8 mounting arrangement; follow the exact manual for component access and routing.
• Complete final upper and lower shock-mount tightening with both wheels resting on the ground, using the vehicle manufacturer’s specified torque.
• The manufacturer requires installation exclusively by a specialised workshop. Consult the exact application manual; contact a Bitubo technician if its instructions are unclear.
• Check rear-fender and belt-guard clearance and the alignment of the upper and lower shock mounts.
• A change in ride height may require a different side stand.
• Product photographs are generic to the model and do not show the exact application. Spring dimensions and preload position vary by vehicle; supplied spacer types may vary by production batch.
