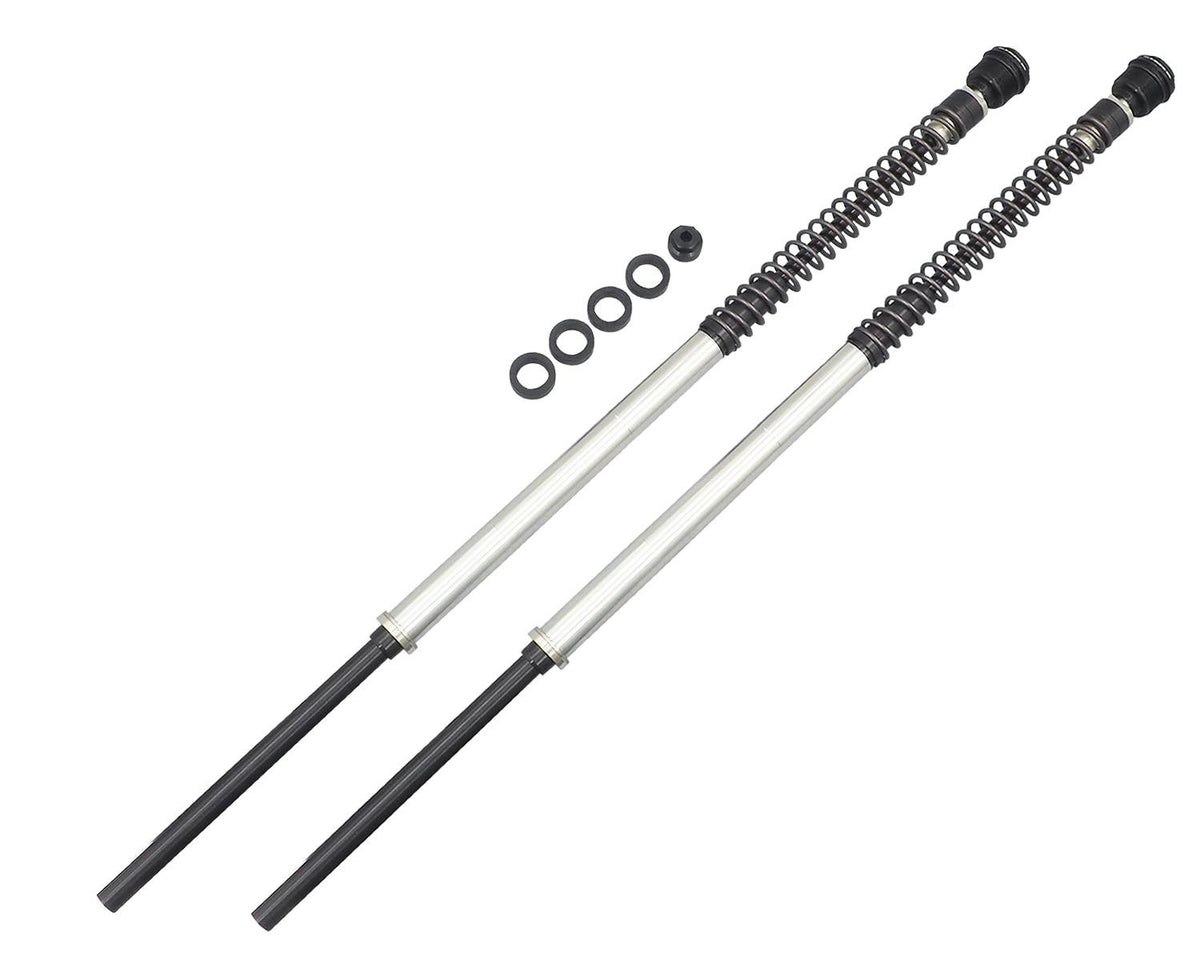

Bitubo Adjustable Front Fork Cartridge Kit | HD006JBH12WO

Front-fork cartridge conversion kit for the exact Harley-Davidson applications listed below.

Specifications

• Brand: Bitubo
• Manufacturer part number: HD006JBH12WO
• Pressurized front-fork cartridge kit
• Adjustments: spring preload, rebound damping and compression damping
• Fork oil is not included.
• Black adjustment rings
• Application-specific lowering adjustment: down to -20 mm.

Fitment and installation

• Harley-Davidson XL1200C Custom, model year 2007.
• Harley-Davidson XL1200R Roadster, 2004–2008.
• Harley-Davidson XL883, 2004–2008.
• Harley-Davidson XL883C Custom, 2007–2008.
• Harley-Davidson XL883R, 2006–2008.
• For the model/year combinations listed above. Confirm the exact motorcycle and fork configuration before ordering.

Package contents

• One left/right front-fork cartridge kit, containing two cartridges.
• Lowering kit and application-specific installation instructions.

Installation notes

• Designed for road use only. Off-road use may irreversibly impair operation and vehicle control. The cartridge contains pressurized nitrogen gas; have a qualified suspension workshop perform installation and service.
• Installation requires disassembly of the triple-tree/front-fork assembly. Have a qualified suspension workshop perform installation and setup.
• Use the exact application manual for oil viscosity, oil level and initial settings. Obtain fork oil separately.
• Images are generic, not exact-application photographs. Spring dimensions and preload position differ by application; spacer types may vary by production batch.
• Check cartridge operation every 10,000 km and at least once a year. Bitubo recommends an overhaul by an authorised Bitubo service centre every 20,000 km or 24 months, and periodic checks of damping response. Do not direct high-pressure water at the fork oil seals or upper cartridge caps; use a non-aggressive cleaner.
