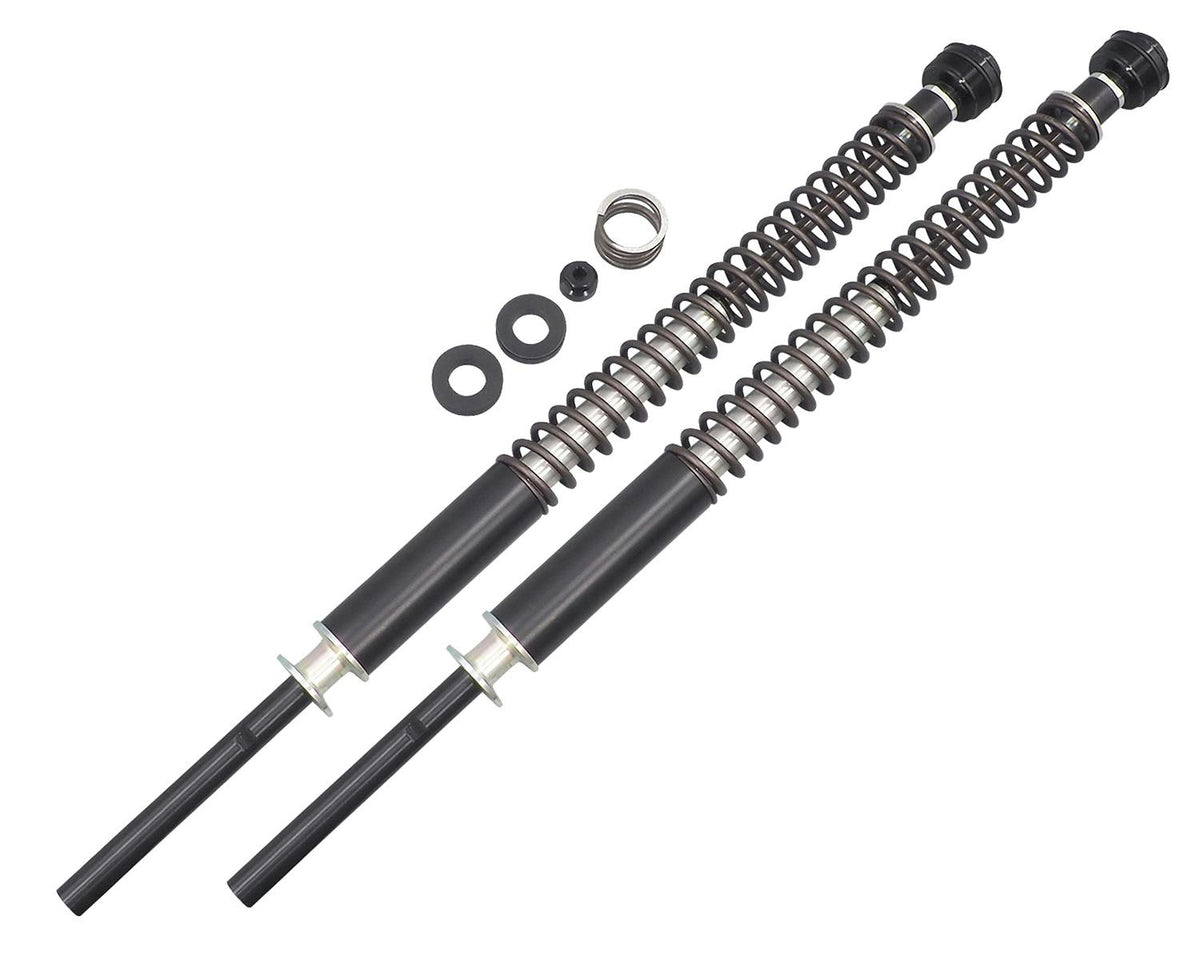

Bitubo Adjustable Front Fork Cartridge Kit | HD005JBH12WO

Front-fork cartridge conversion kit for the exact Harley-Davidson applications listed below.

Specifications

• Brand: Bitubo
• Manufacturer part number: HD005JBH12WO
• Pressurized front-fork cartridge kit
• Adjustments: spring preload, rebound damping and compression damping
• Fork oil is not included.
• Black adjustment rings
• Application-specific lowering adjustment: down to -10 mm.

Fitment and installation

• Harley-Davidson SPORTSTER XL1200X ANX (48), 1200 cc, 2018-2018 (type XL2/LN).
• Harley-Davidson SPORTSTER XL1200X FORTY-EIGHT, 1200 cc, 2016-2018 (type XL2/LC).
• Harley-Davidson SPORTSTER XL1200XS (48) SPE., 1200 cc, 2018-2018 (type XL2/LR).
• Match the exact model, year, fork configuration and type before ordering. Open-ended source years do not guarantee every later model year.

Package contents

• One left/right front-fork cartridge kit, containing two cartridges.
• Lowering kit and application-specific installation instructions.

Installation notes

• Designed for road use only. Off-road use may irreversibly impair operation and vehicle control. The cartridge contains pressurized nitrogen gas; have a qualified suspension workshop perform installation and service.
• Installation requires disassembly of the triple-tree/front-fork assembly. Have a qualified suspension workshop perform installation and setup.
• Use the exact application manual for oil viscosity, oil level and initial settings. Obtain fork oil separately.
• Images are generic, not exact-application photographs. Spring dimensions and preload position differ by application; spacer types may vary by production batch.
• Check cartridge operation every 10,000 km and at least once a year. Bitubo recommends an overhaul by an authorised Bitubo service centre every 20,000 km or 24 months, and periodic checks of damping response. Do not direct high-pressure water at the fork oil seals or upper cartridge caps; use a non-aggressive cleaner.
