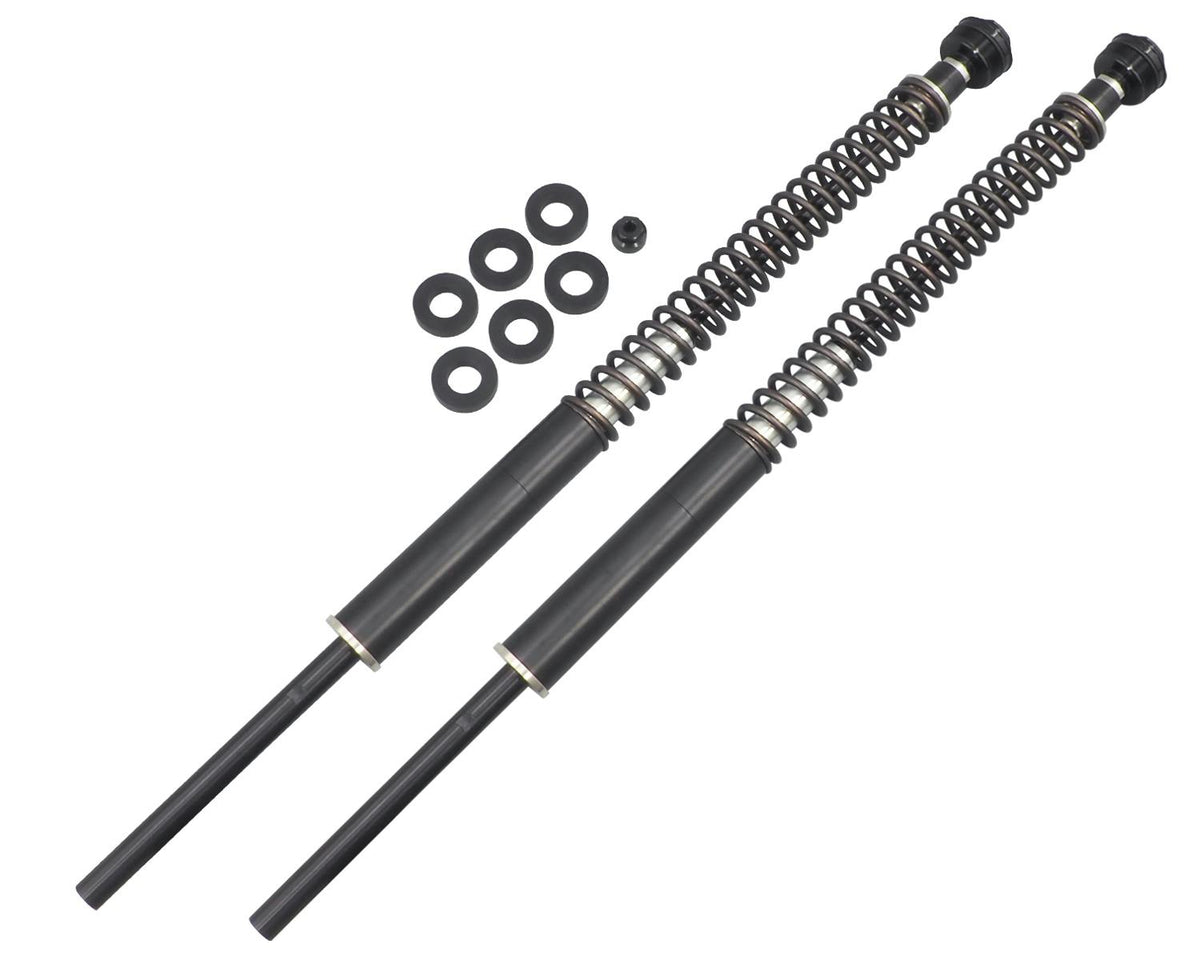

Bitubo Adjustable Front Fork Cartridge Kit | HD003JBH12WO

Front-fork cartridge conversion kit for the exact Harley-Davidson applications listed below.

Specifications

• Brand: Bitubo
• Manufacturer part number: HD003JBH12WO
• Pressurized front-fork cartridge kit
• Adjustments: spring preload, rebound damping and compression damping
• Fork oil is not included.
• Black adjustment rings
• Application-specific lowering adjustment: down to -30 mm.

Fitment and installation

• Harley-Davidson FXD35 Dyna Super Glide 35th Anniversary, 2006.
• Harley-Davidson FXD Dyna Super Glide, 2006–2010.
• Harley-Davidson FXDC Dyna Super Glide Custom, 2007–2014.
• Harley-Davidson FXDF Fat Bob, 2008–2017; the manual specifically lists the FXDF Fat Bob 103 variant for 2012–2017.
• Harley-Davidson FXDL Low Rider 103, 2014–2017.
• Harley-Davidson FXDB Street Bob, 2012, and FXDBP Street Bob 103, 2013–2016.
• FXDB/FXDBI naming and later FXDB/FXDBP years outside the scope above remain unresolved. Omitted applications are unverified, not established as incompatible.

Package contents

• One left/right front-fork cartridge kit, containing two cartridges.
• Lowering kit and application-specific installation instructions.

Installation notes

• Designed for road use only. Off-road use may irreversibly impair operation and vehicle control. The cartridge contains pressurized nitrogen gas; have a qualified suspension workshop perform installation and service.
• Installation requires disassembly of the triple-tree/front-fork assembly. Have a qualified suspension workshop perform installation and setup.
• Use the exact application manual for oil viscosity, oil level and initial settings. Obtain fork oil separately.
• Images are generic, not exact-application photographs. Spring dimensions and preload position differ by application; spacer types may vary by production batch.
