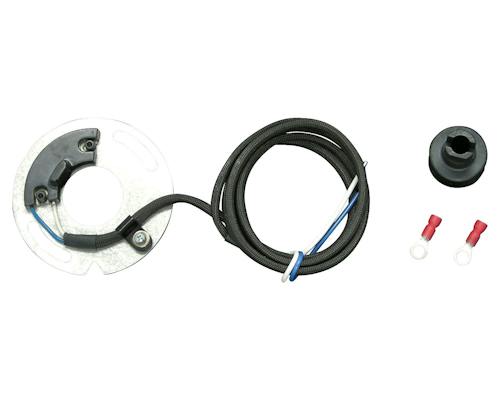

Dynatek Dyna S Ignition - Dual-fire / Carbureted Harley-Davidson | DS6-1

A self-contained electronic ignition assembly for the specified carbureted Harley-Davidson applications.

Features

• Fits behind the ignition cover and retains the original mechanical-advance operating principle.

Specifications

• Brand: Dynatek
• Manufacturer part number: DS6-1
• Ignition mode: Dual-fire
• Number of sensors: 1

Fitment and installation

• For the specified 1970–1999 Big Twin applications, excluding TC88, and 1970–2003 Sportster applications. Carbureted models only; verify exact model and mechanical-advance compatibility.
• Late models originally equipped with electronic ignition require a separate mechanical advance unit.

Package contents

• One Dyna S ignition assembly. Ignition coils and a separate mechanical advance unit are not included.

Installation notes

• Professional installation and ignition timing adjustment are required. Review the exact model’s installation and troubleshooting instructions before wiring.
• The product is designed around original components; aftermarket advance units may require fit adjustment. Confirm that the magnetic rotor turns freely without binding.
• For single-plug heads (two spark plugs total), the manufacturer specifies one 5 Ω primary-resistance coil for street use or one 3 Ω coil for racing. For dual-plug heads (four spark plugs total), its DS6-1 chart specifies two 1.5 Ω coils wired in series for street or racing use. Follow the exact ignition/coil wiring chart; these configurations are not interchangeable.
• Perform the specified standalone pre-connection electrical test. For resistance tests, disconnect the module from the coils and do not apply power; follow the exact manual’s lead identification and meter-polarity precautions.
• Incorrect wiring can damage the ignition. NEO states that damage caused by reversed wiring is excluded from manufacturer warranty.
