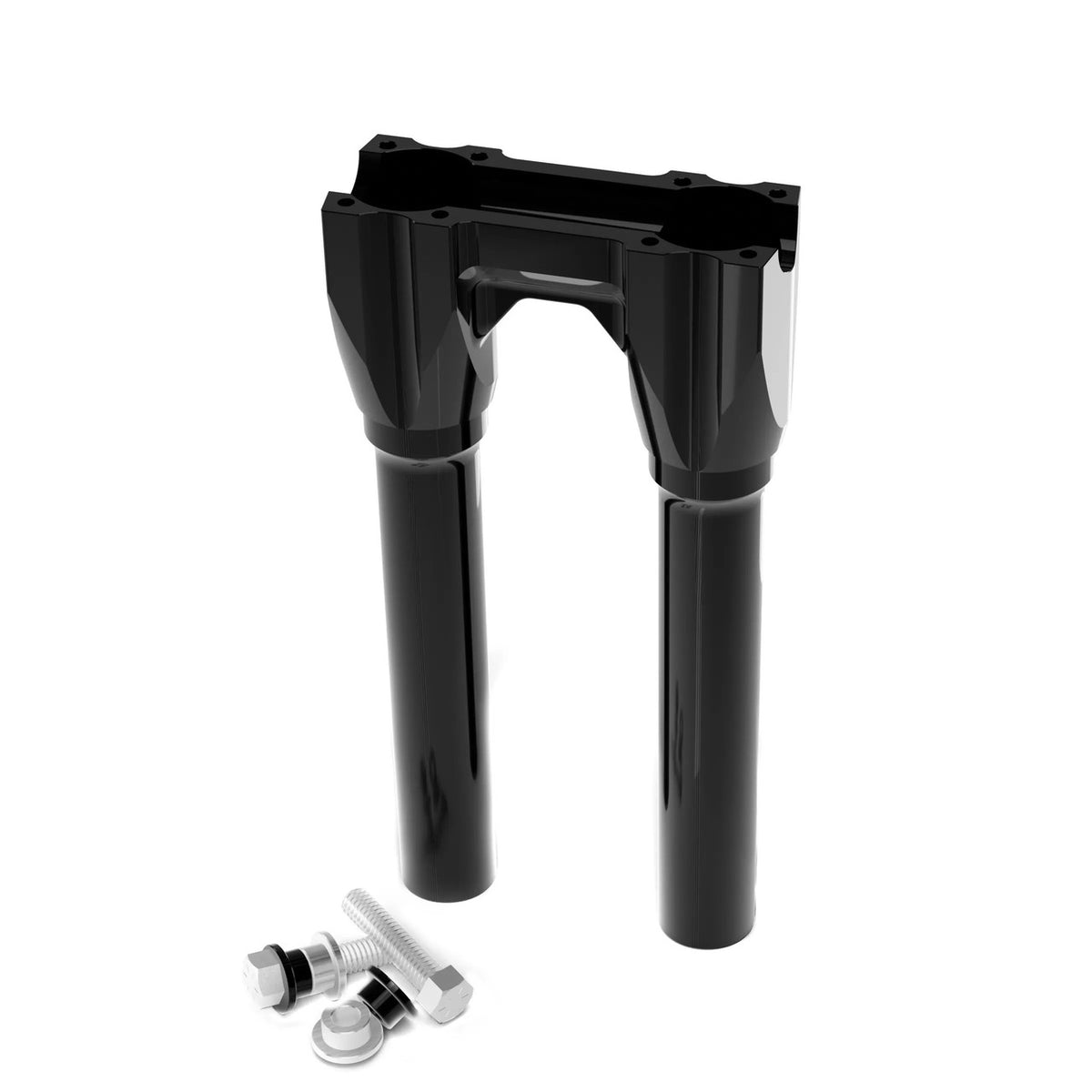

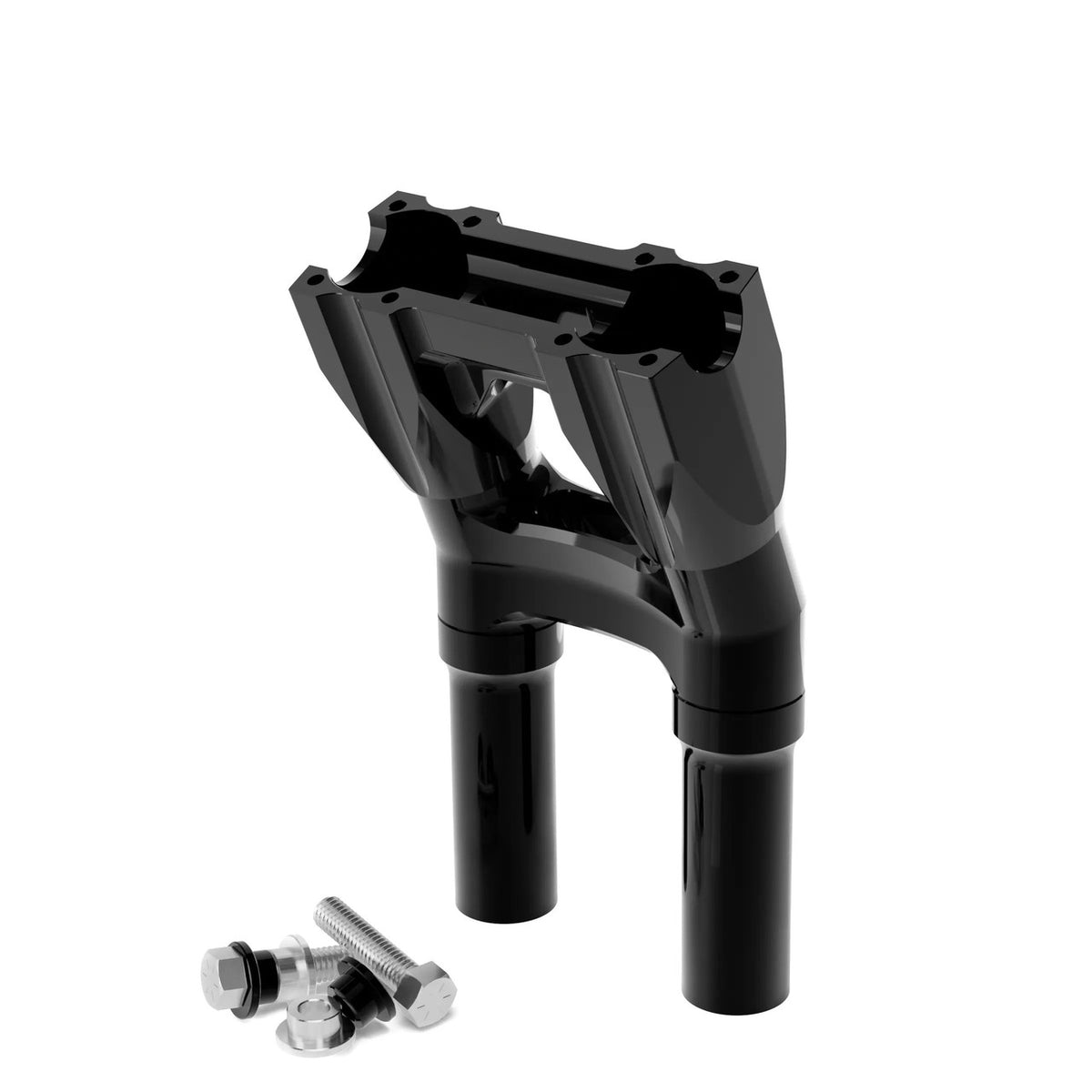

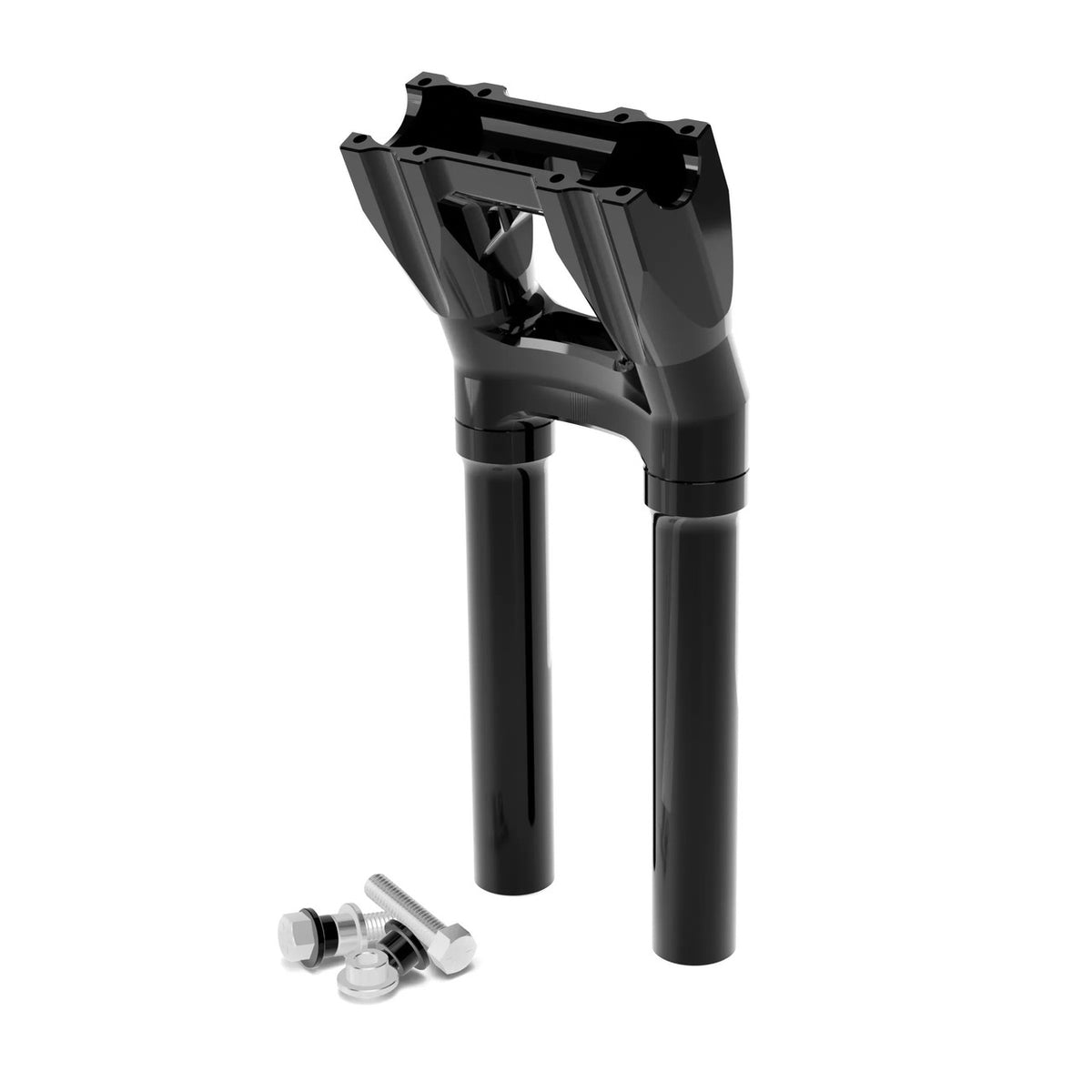

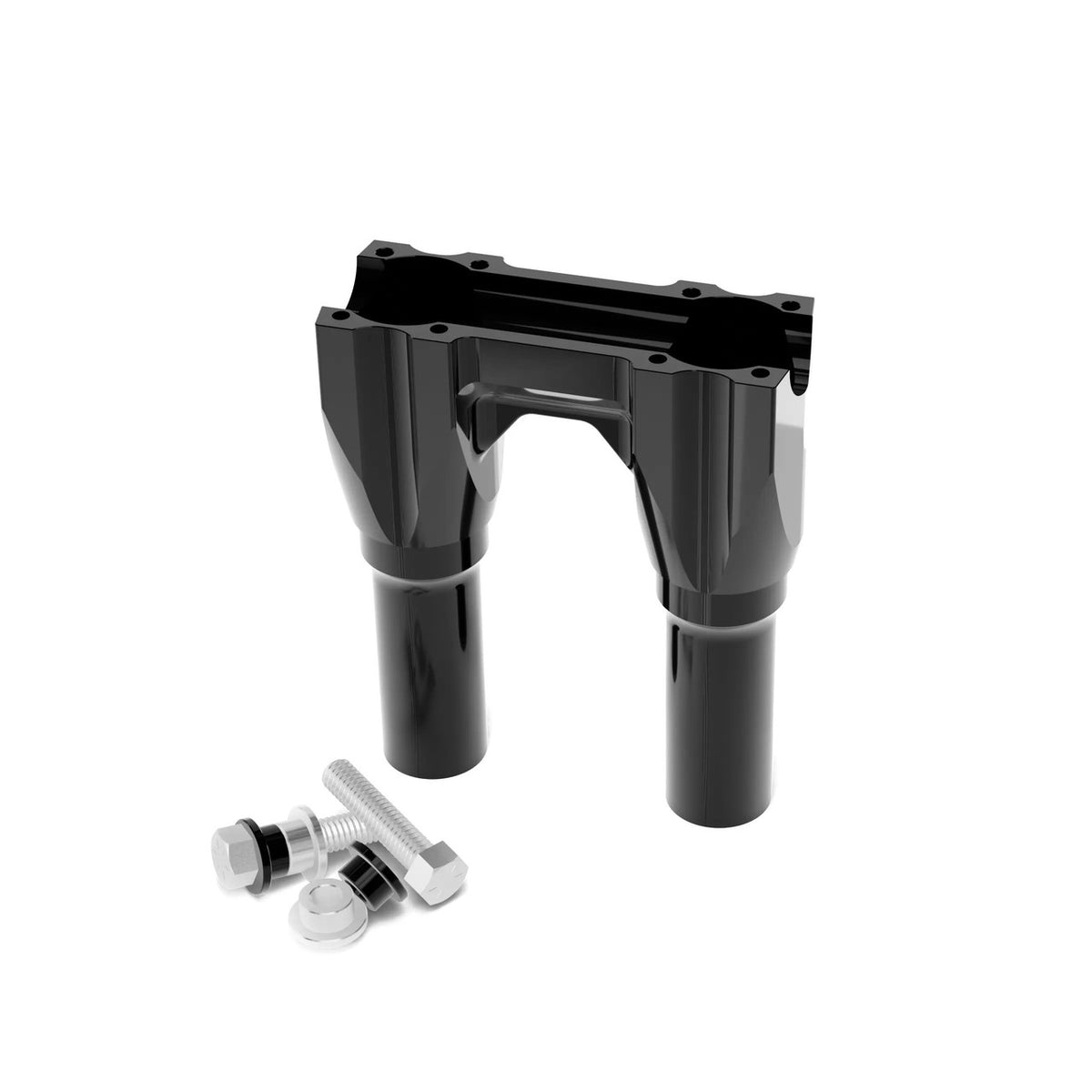

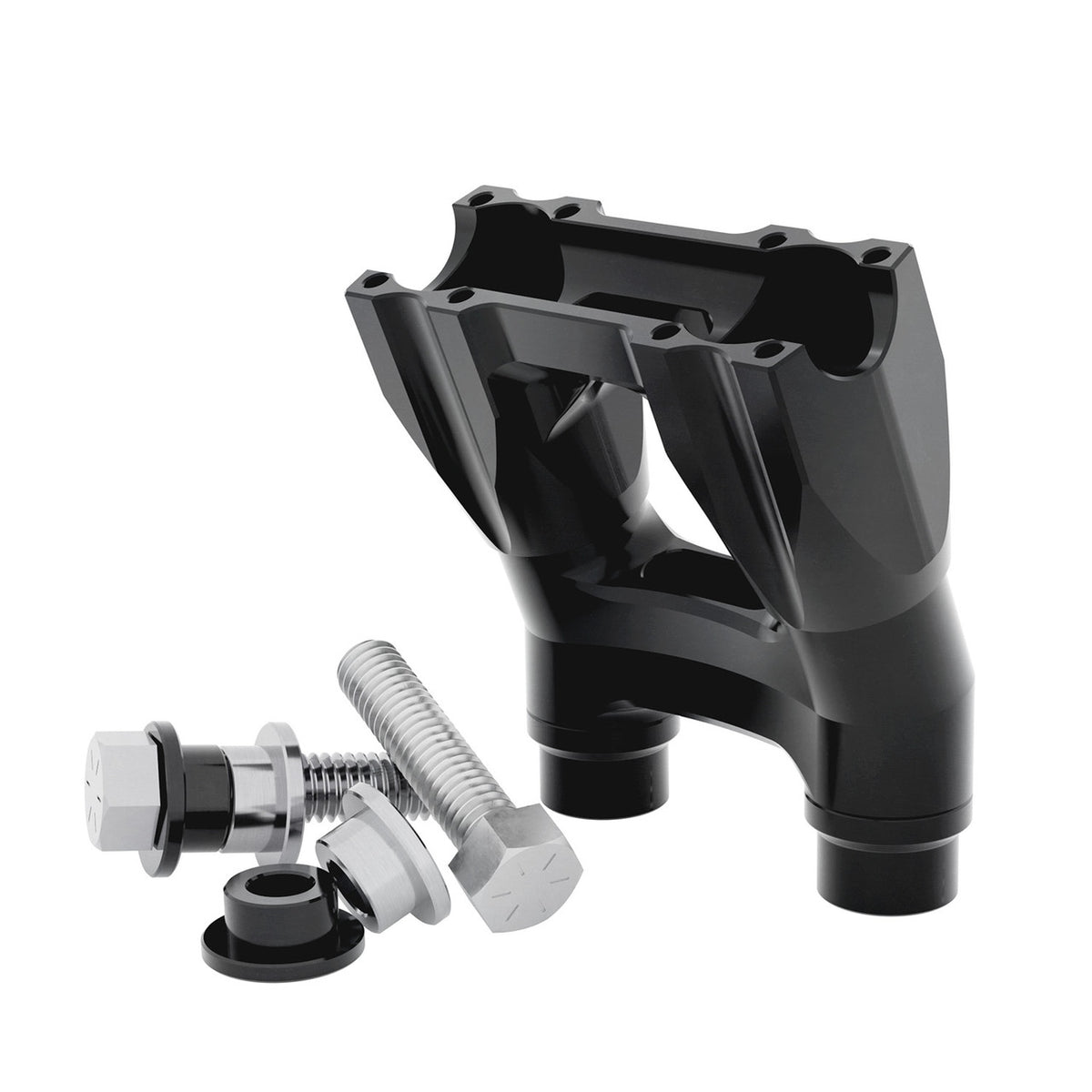

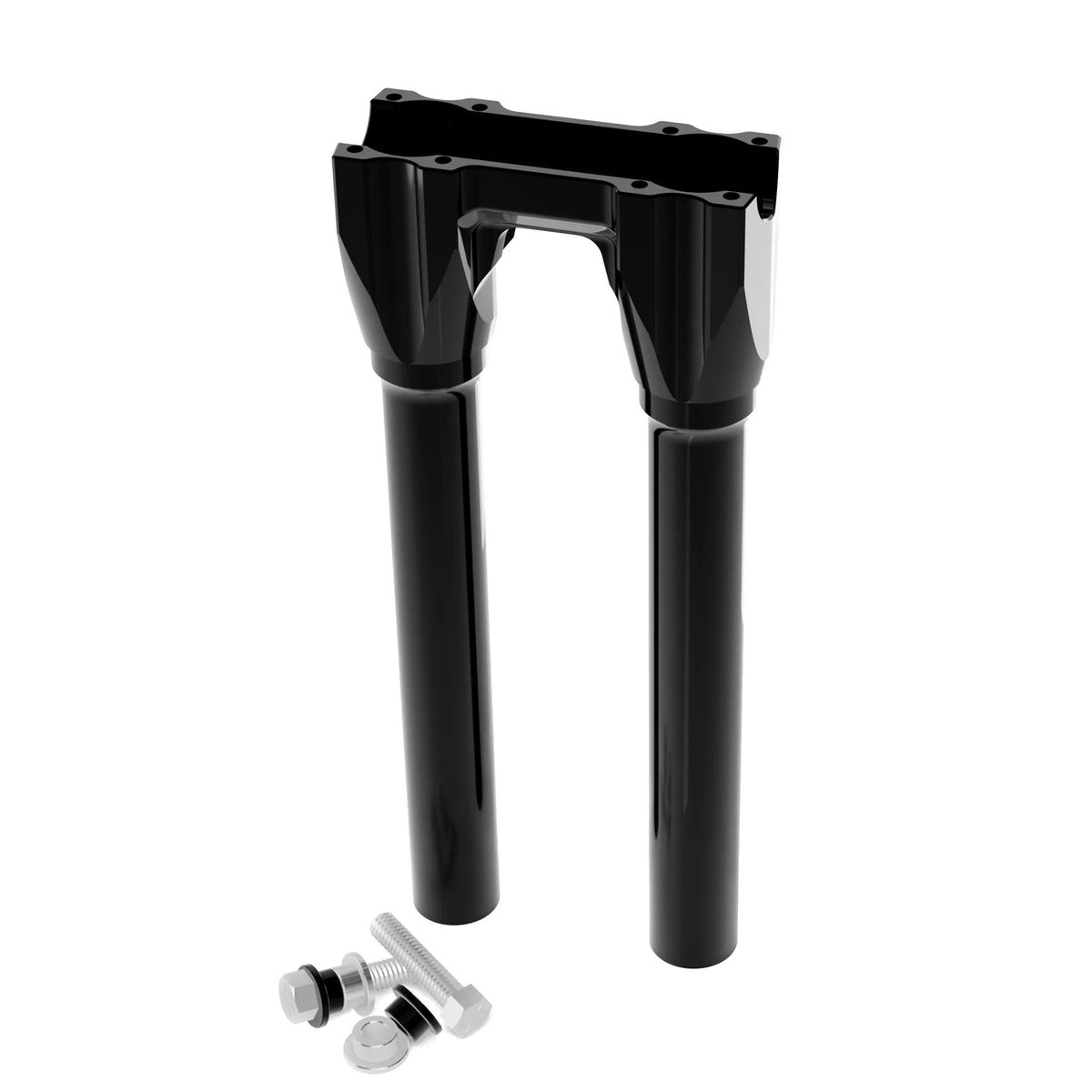

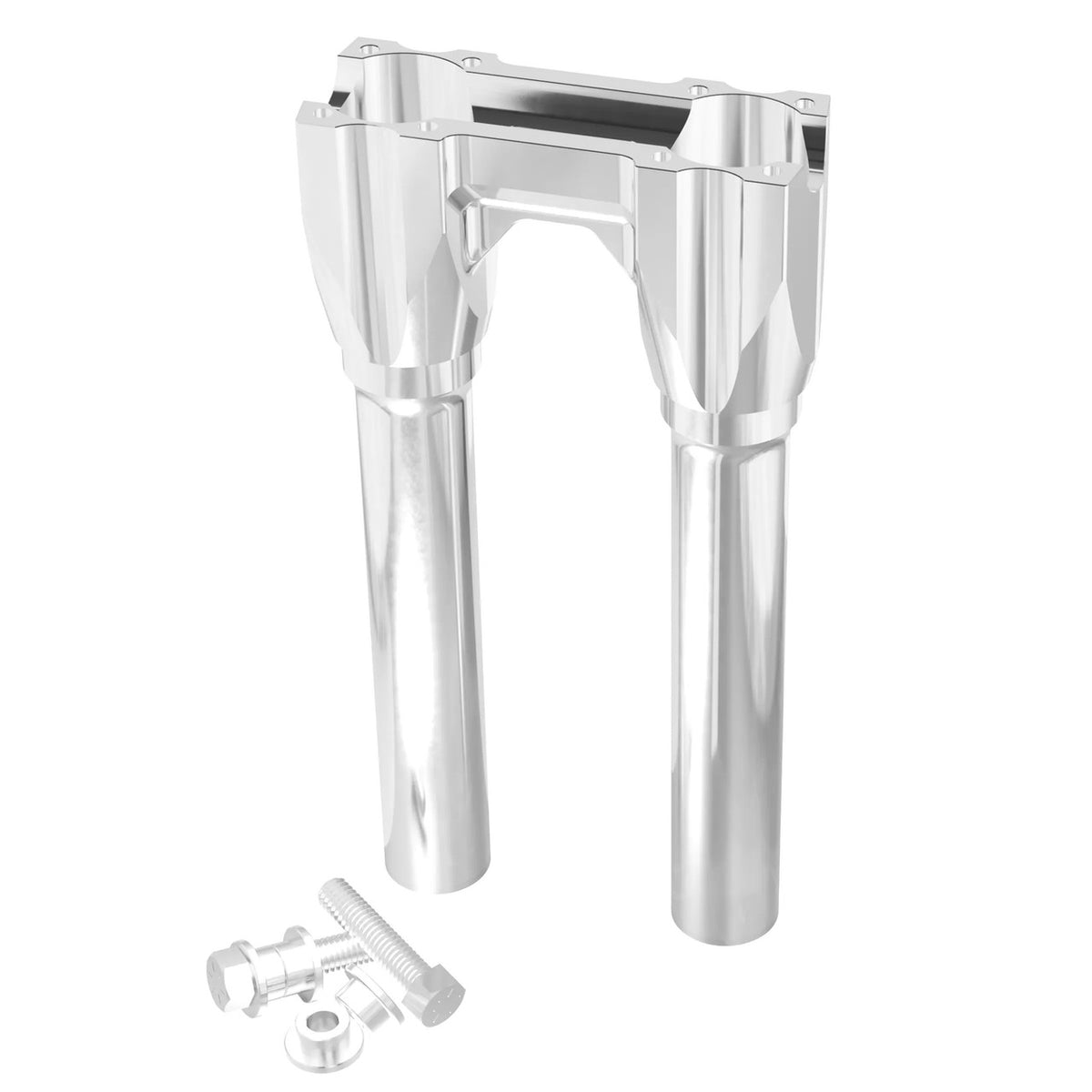

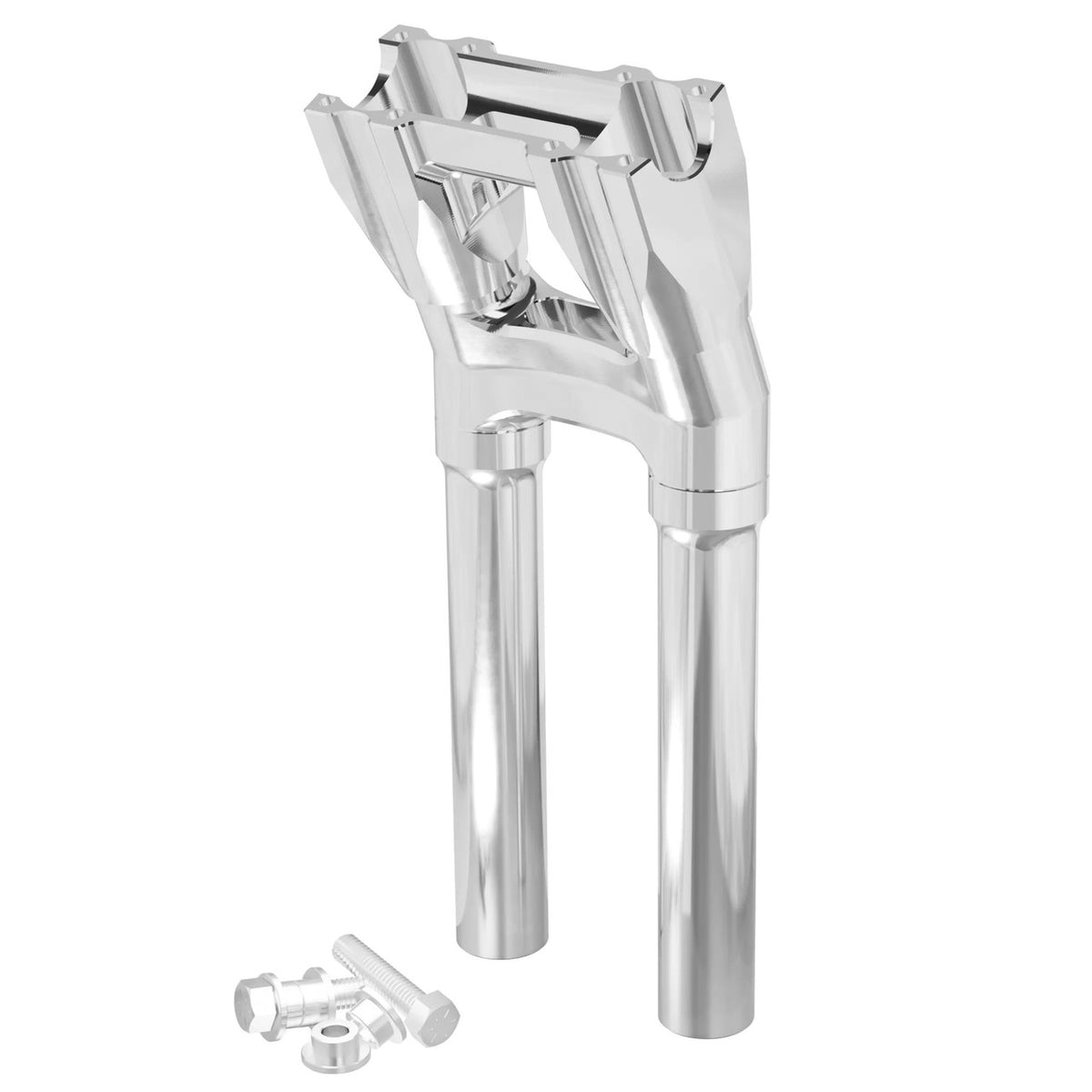

Kraus Motor Topless Isolated Risers - Bagger / 2018+ Softail

Kraus Motor Topless Isolated Risers - Bagger / 2018+ Softail

Price $27,499 TWD
Original price
Sale price $27,499 TWD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Specification
In stock — overseas warehouse Estimated arrival: 7–10 business days

Stock is held at our overseas supplier warehouse. After payment confirmation, cross-border delivery is arranged with an estimated arrival in 7–10 business days. This is not immediate dispatch from Taiwan stock.
Product identifiers
Vendor / brand
Product type
Risers, Clamps and Mounts
Need help confirming fitment? Send the part number and bike details to FANGSTER before checkout.
View full details

Product information

Overview

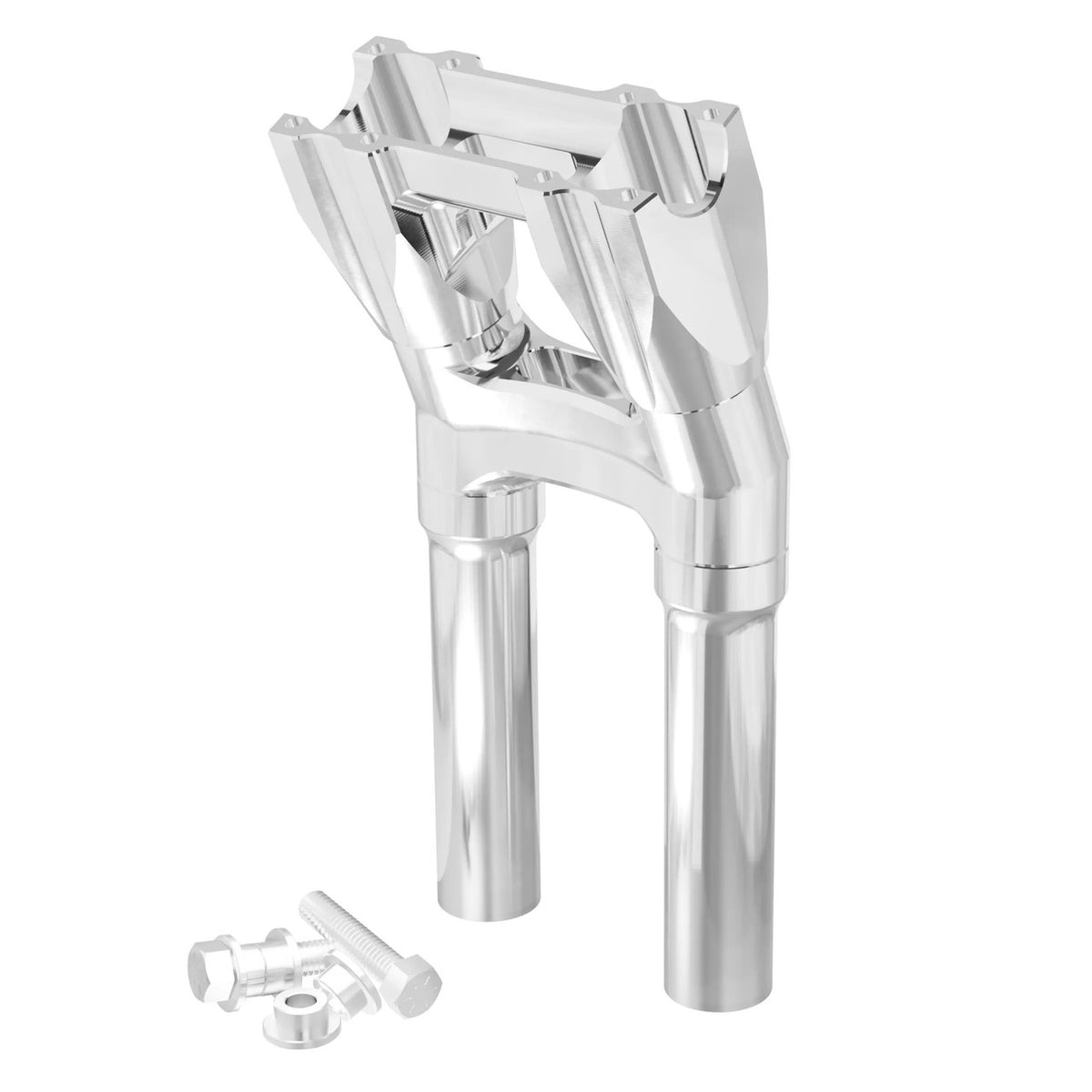

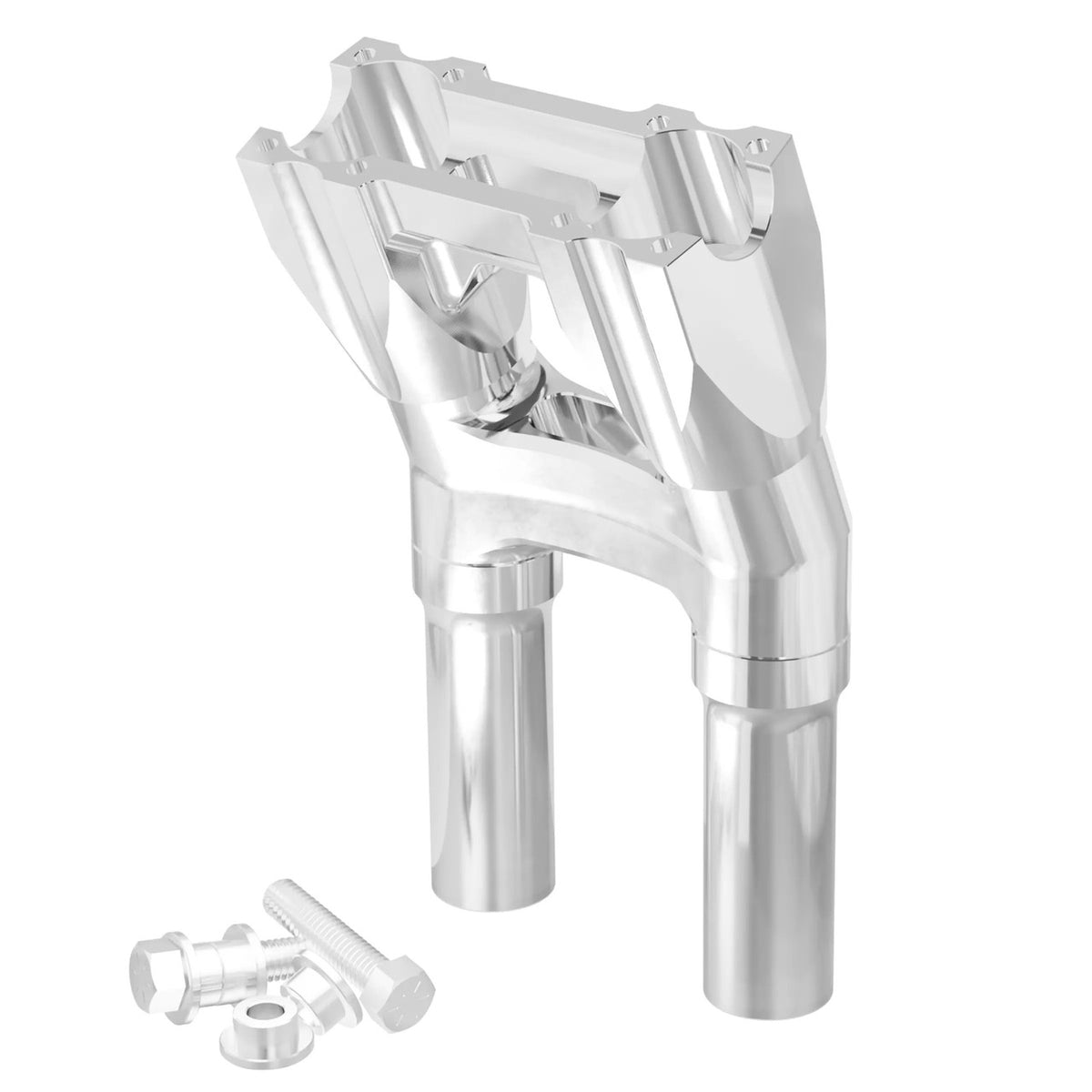

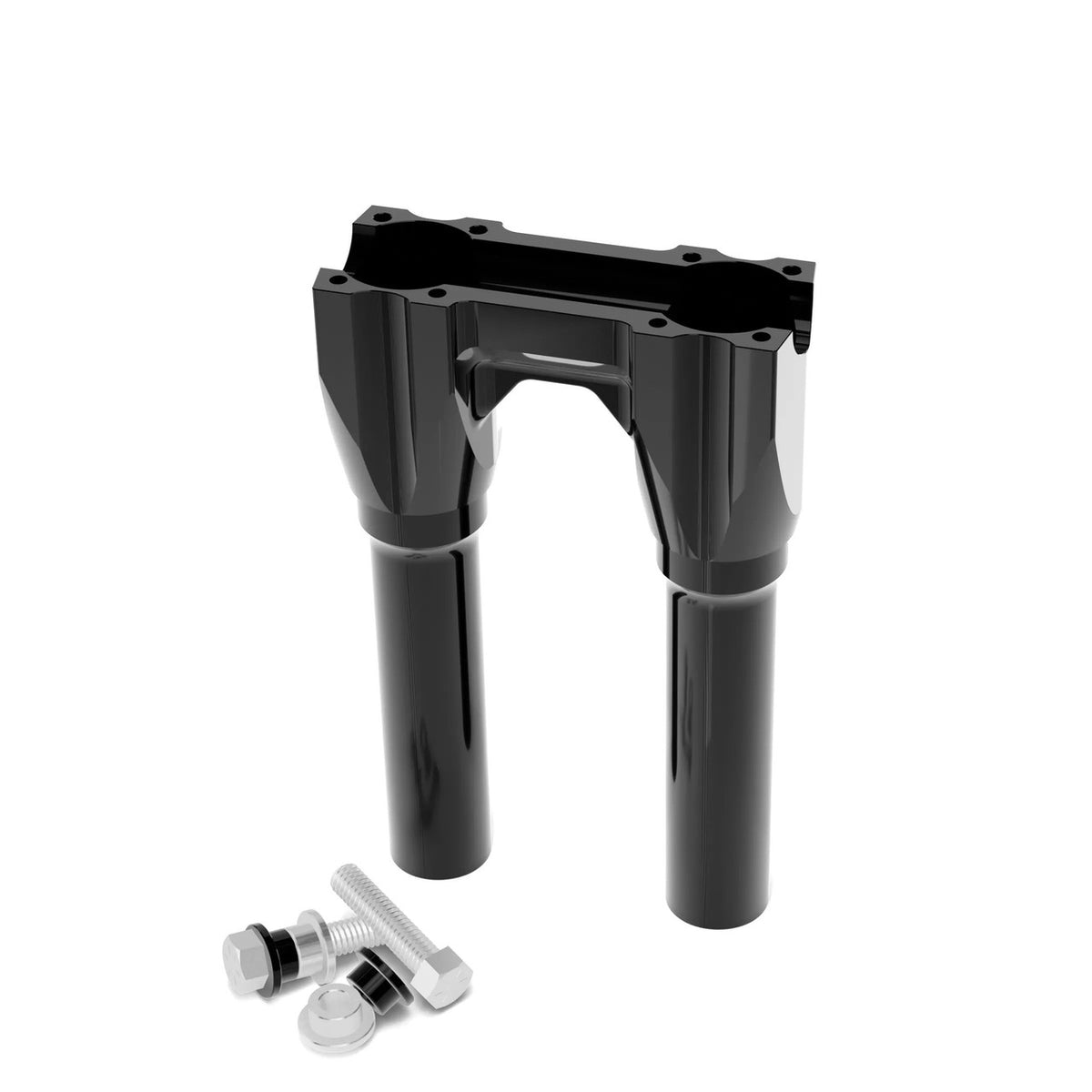

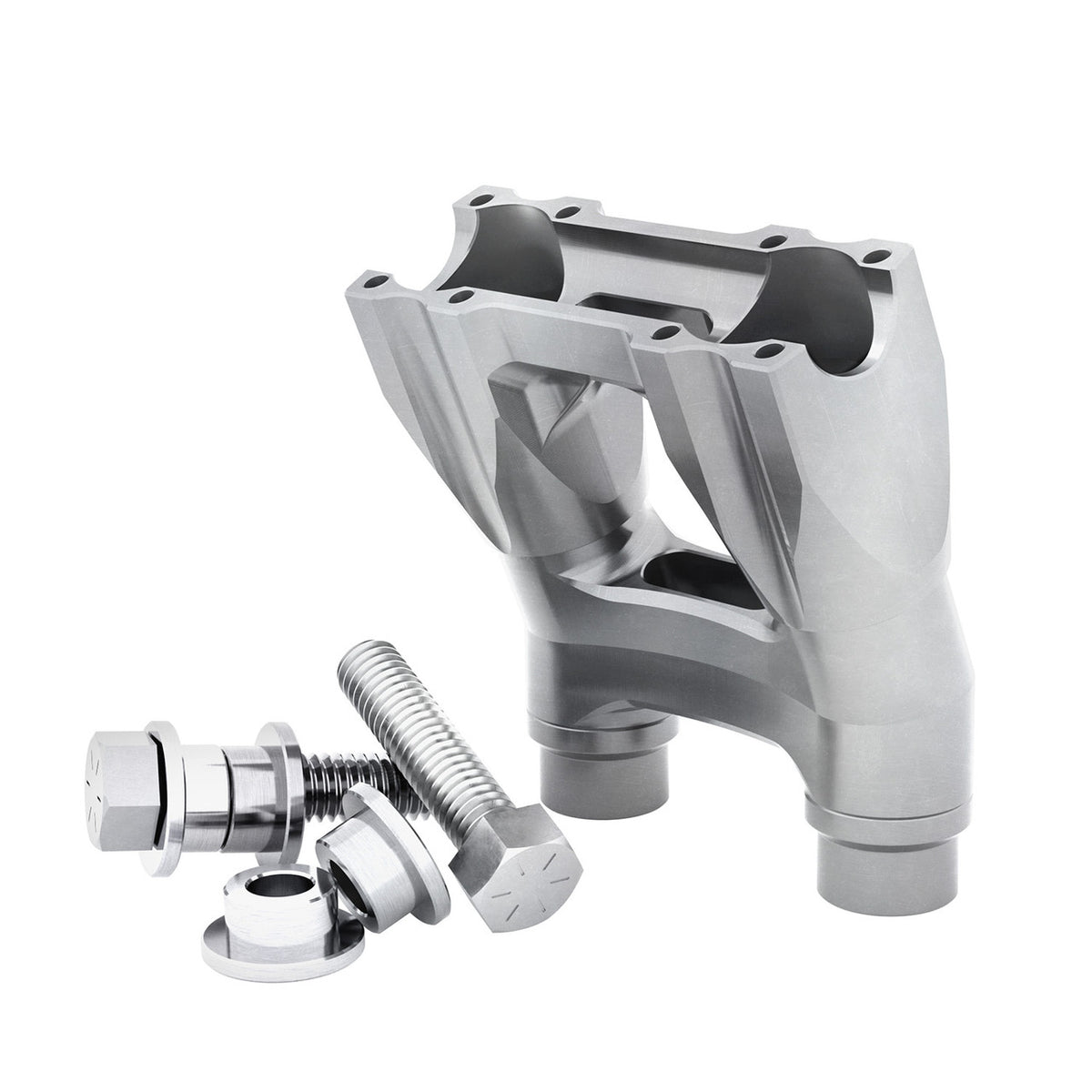

Topless risers have an open lower bar clamp and no upper cap; a matching upper-clamp assembly must be supplied separately before a bar can be secured. For matching Bagger/ 2018-up Softail 3.5-inch-center mounts, with billet mounting bushings and illustrated mounting hardware. Select 1-inch or 1-1/8-inch bore, 6/8/10/12-inch height and Straight or 1.5-inch Kickback. Compatible Core top plates are sold separately: SF-IN-10-B/M for 1-inch or SF-IN-12-B/M for 1-1/8-inch. Gauge, gasket/bronze bushings and necessary harness extensions remain separate/reused. Use only a compatible upper-clamp assembly.

Specifications

  • Brand: Kraus Motor
  • Manufacturer part number: UN-ISO-96-B
  • Manufacturer part number: UN-ISO-76-B
  • Manufacturer part number: UN-ISO-98-B
  • Manufacturer part number: UN-ISO-78-B
  • Manufacturer part number: UN-ISO-90-B
  • Manufacturer part number: UN-ISO-70-B
  • Manufacturer part number: UN-ISO-92-B
  • Manufacturer part number: UN-ISO-72-B
  • Manufacturer part number: UN-ISO-86-B
  • Manufacturer part number: UN-ISO-46-B
  • Manufacturer part number: UN-ISO-88-B
  • Manufacturer part number: UN-ISO-48-B
  • Manufacturer part number: UN-ISO-80-B
  • Manufacturer part number: UN-ISO-40-B
  • Manufacturer part number: UN-ISO-82-B
  • Manufacturer part number: UN-ISO-42-B
  • Manufacturer part number: UN-ISO-96-M
  • Manufacturer part number: UN-ISO-76-M
  • Manufacturer part number: UN-ISO-98-M
  • Manufacturer part number: UN-ISO-78-M
  • Manufacturer part number: UN-ISO-90-M
  • Manufacturer part number: UN-ISO-70-M
  • Manufacturer part number: UN-ISO-92-M
  • Manufacturer part number: UN-ISO-72-M
  • Manufacturer part number: UN-ISO-86-M
  • Manufacturer part number: UN-ISO-46-M
  • Manufacturer part number: UN-ISO-88-M
  • Manufacturer part number: UN-ISO-48-M
  • Manufacturer part number: UN-ISO-80-M
  • Manufacturer part number: UN-ISO-40-M
  • Manufacturer part number: UN-ISO-82-M
  • Manufacturer part number: UN-ISO-42-M
  • UN-ISO-96-B: Black Anodized / Kickback / 6" / 1-1/8"
  • UN-ISO-76-B: Black Anodized / Kickback / 6" / 1"
  • UN-ISO-98-B: Black Anodized / Kickback / 8" / 1-1/8"
  • UN-ISO-78-B: Black Anodized / Kickback / 8" / 1"
  • UN-ISO-90-B: Black Anodized / Kickback / 10" / 1-1/8"
  • UN-ISO-70-B: Black Anodized / Kickback / 10" / 1"
  • UN-ISO-92-B: Black Anodized / Kickback / 12" / 1-1/8"
  • UN-ISO-72-B: Black Anodized / Kickback / 12" / 1"
  • UN-ISO-86-B: Black Anodized / Straight / 6" / 1-1/8"
  • UN-ISO-46-B: Black Anodized / Straight / 6" / 1"
  • UN-ISO-88-B: Black Anodized / Straight / 8" / 1-1/8"
  • UN-ISO-48-B: Black Anodized / Straight / 8" / 1"
  • UN-ISO-80-B: Black Anodized / Straight / 10" / 1-1/8"
  • UN-ISO-40-B: Black Anodized / Straight / 10" / 1"
  • UN-ISO-82-B: Black Anodized / Straight / 12" / 1-1/8"
  • UN-ISO-42-B: Black Anodized / Straight / 12" / 1"
  • UN-ISO-96-M: Machine Finish / Kickback / 6" / 1-1/8"
  • UN-ISO-76-M: Machine Finish / Kickback / 6" / 1"
  • UN-ISO-98-M: Machine Finish / Kickback / 8" / 1-1/8"
  • UN-ISO-78-M: Machine Finish / Kickback / 8" / 1"
  • UN-ISO-90-M: Machine Finish / Kickback / 10" / 1-1/8"
  • UN-ISO-70-M: Machine Finish / Kickback / 10" / 1"
  • UN-ISO-92-M: Machine Finish / Kickback / 12" / 1-1/8"
  • UN-ISO-72-M: Machine Finish / Kickback / 12" / 1"
  • UN-ISO-86-M: Machine Finish / Straight / 6" / 1-1/8"
  • UN-ISO-46-M: Machine Finish / Straight / 6" / 1"
  • UN-ISO-88-M: Machine Finish / Straight / 8" / 1-1/8"
  • UN-ISO-48-M: Machine Finish / Straight / 8" / 1"
  • UN-ISO-80-M: Machine Finish / Straight / 10" / 1-1/8"
  • UN-ISO-40-M: Machine Finish / Straight / 10" / 1"
  • UN-ISO-82-M: Machine Finish / Straight / 12" / 1-1/8"
  • UN-ISO-42-M: Machine Finish / Straight / 12" / 1"

Supply and delivery

  • Overseas warehouse. Estimated delivery: 7–10 business days.

Installation notes

  • The matching Core-cap guide specifies blue threadlocker/18 in-lb for 8-32 gauge screws and alternating 6 ft-lb tightening of 1/4-20 top screws, keeping an even small gap. Touring/ 2018-up Softail solid bushings use specified 1/2-13 x 2.5-inch Grade 5 bolts at 55 ft-lb; do not substitute the Dyna/Dynamoto hardware setup. Configure the digital gauge/Koso D2, gasket and extensions separately following the matching top-cap instructions. Remove the riser assembly before changing legs. Have a qualified technician follow the matching vehicle and kit manuals, test slowly and recheck. Improper installation can cause severe injury or death.
  • Manufacturer installation guide: https://krausmotorco.com/content/pdfs/Core%20Riser%20Guide.pdf
