Kraus Motor Isolated Risers Without Mounting Hardware - 3.5 inch mounting centers

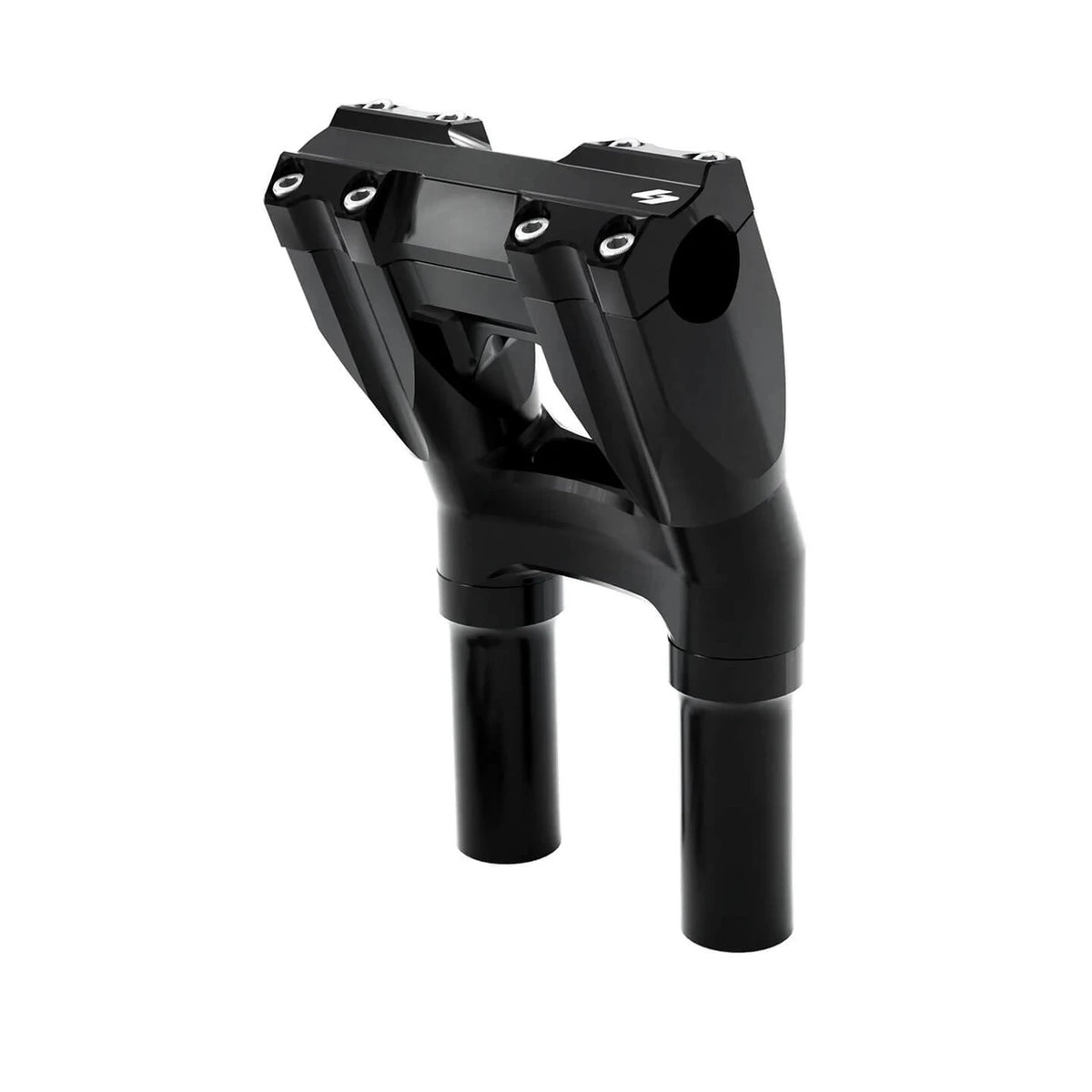

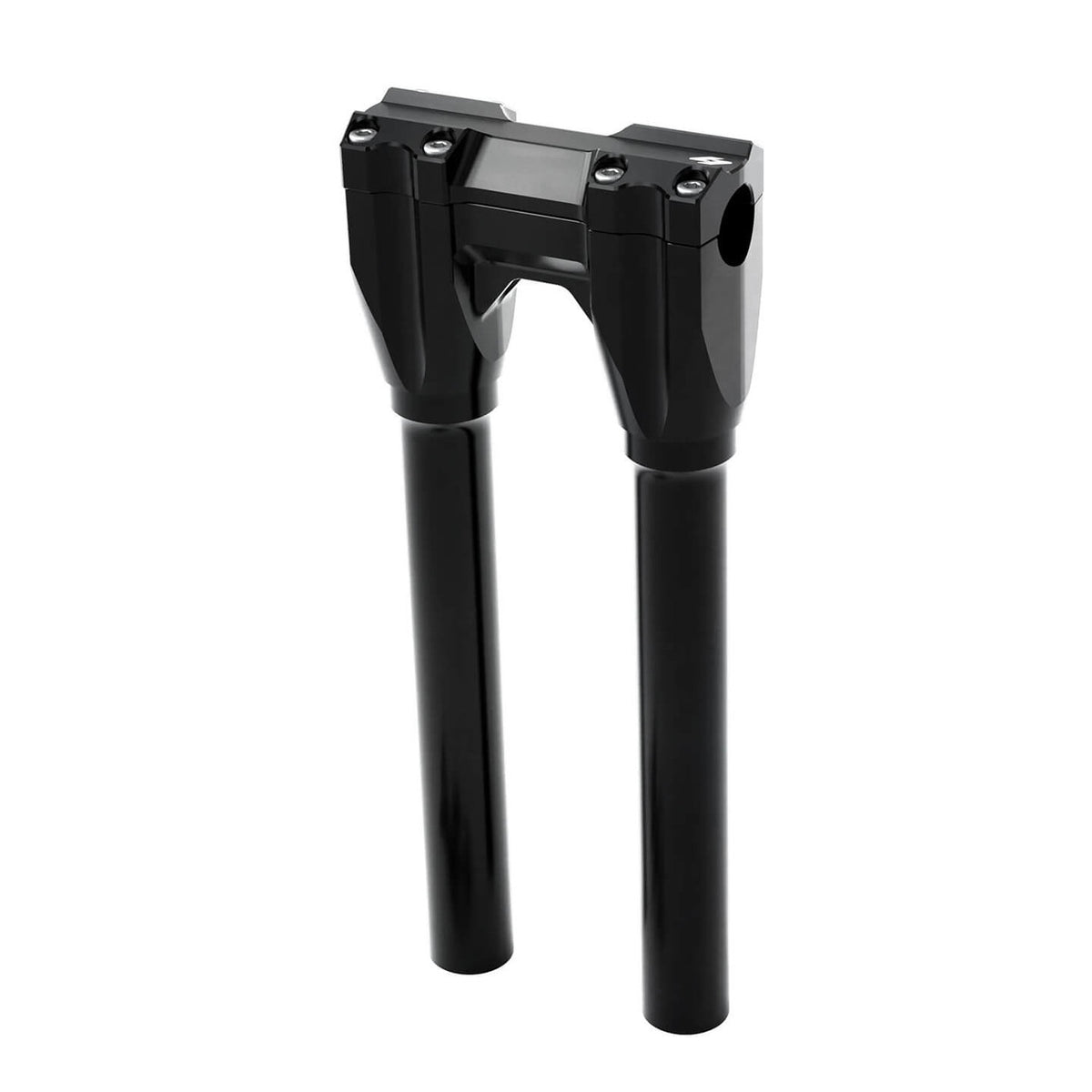

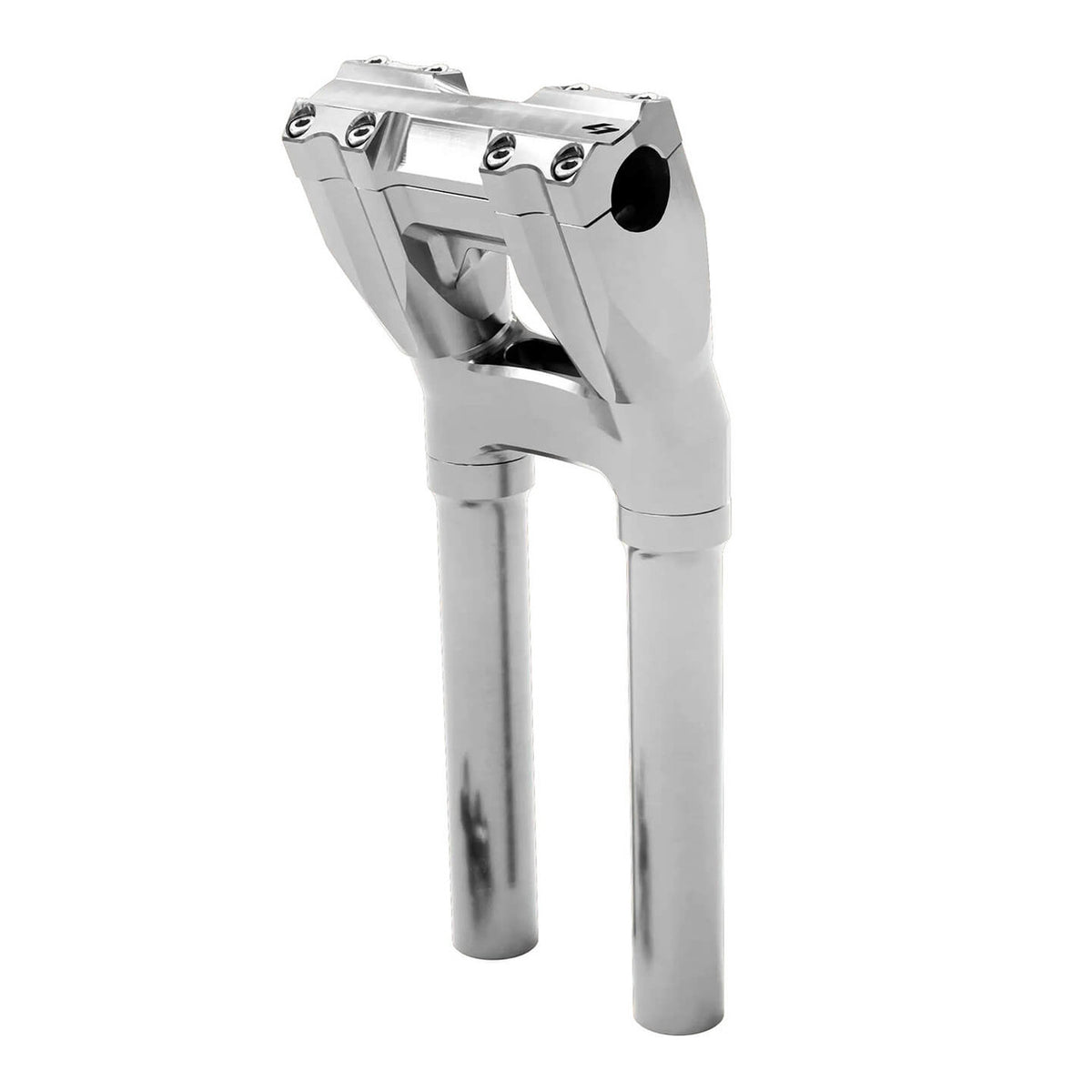

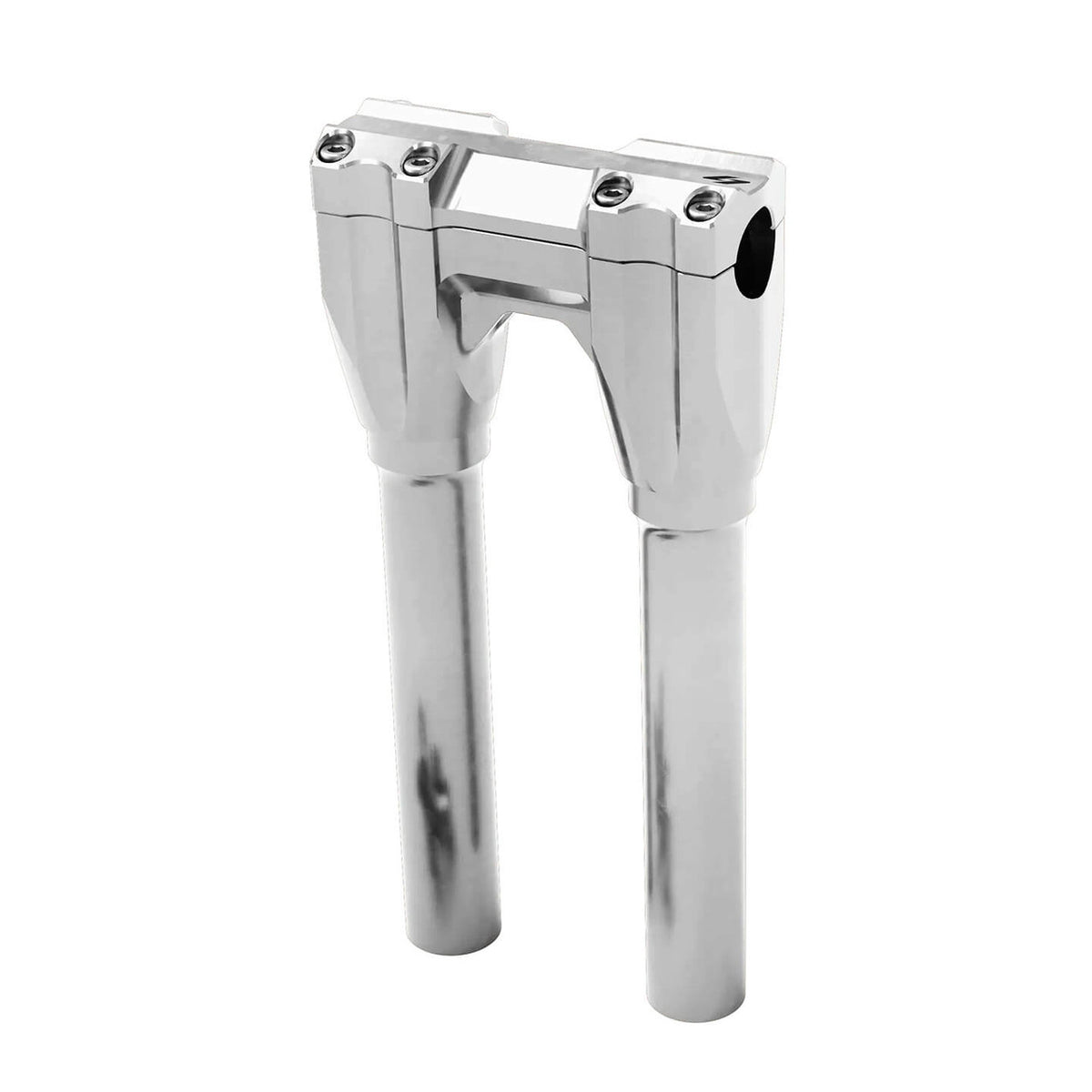

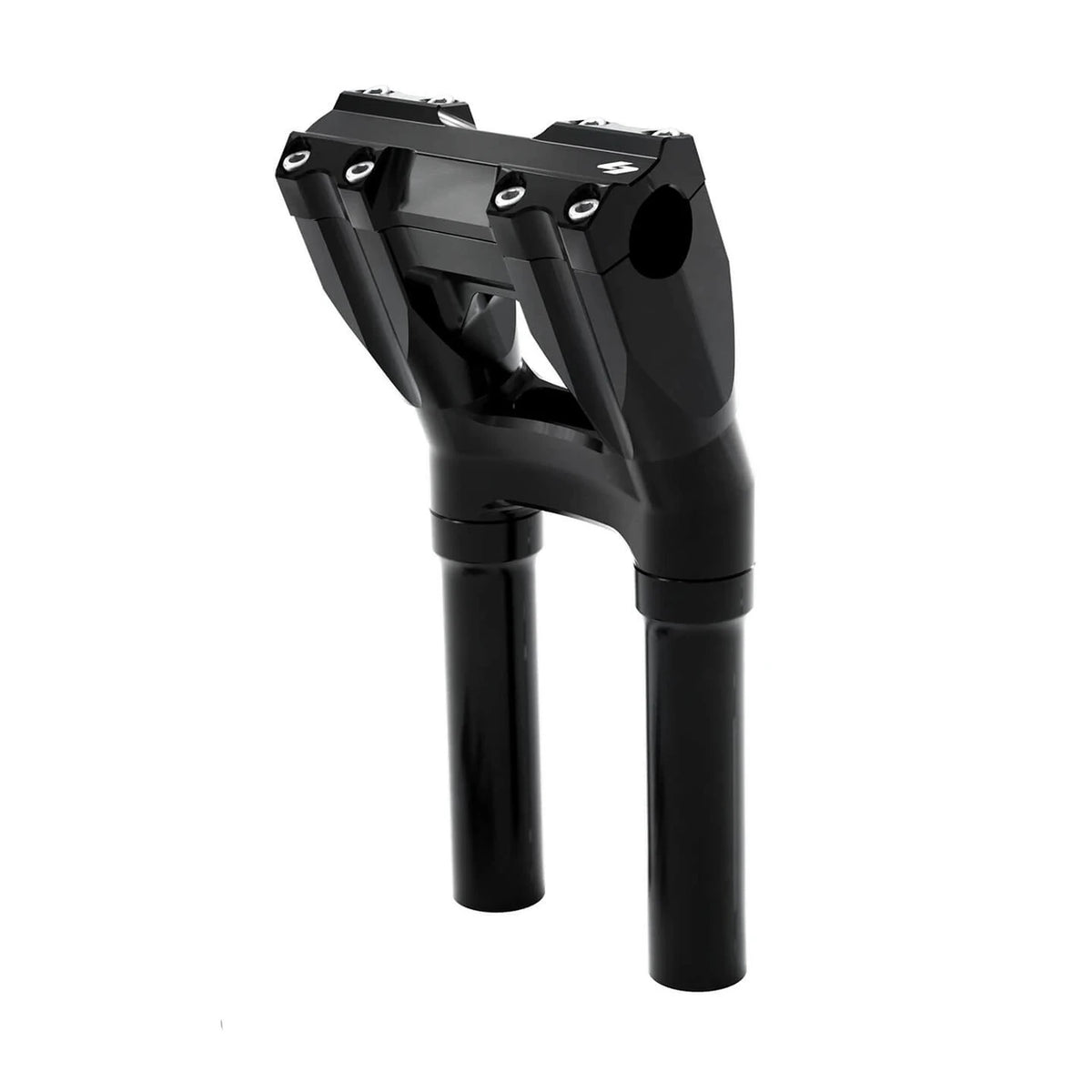

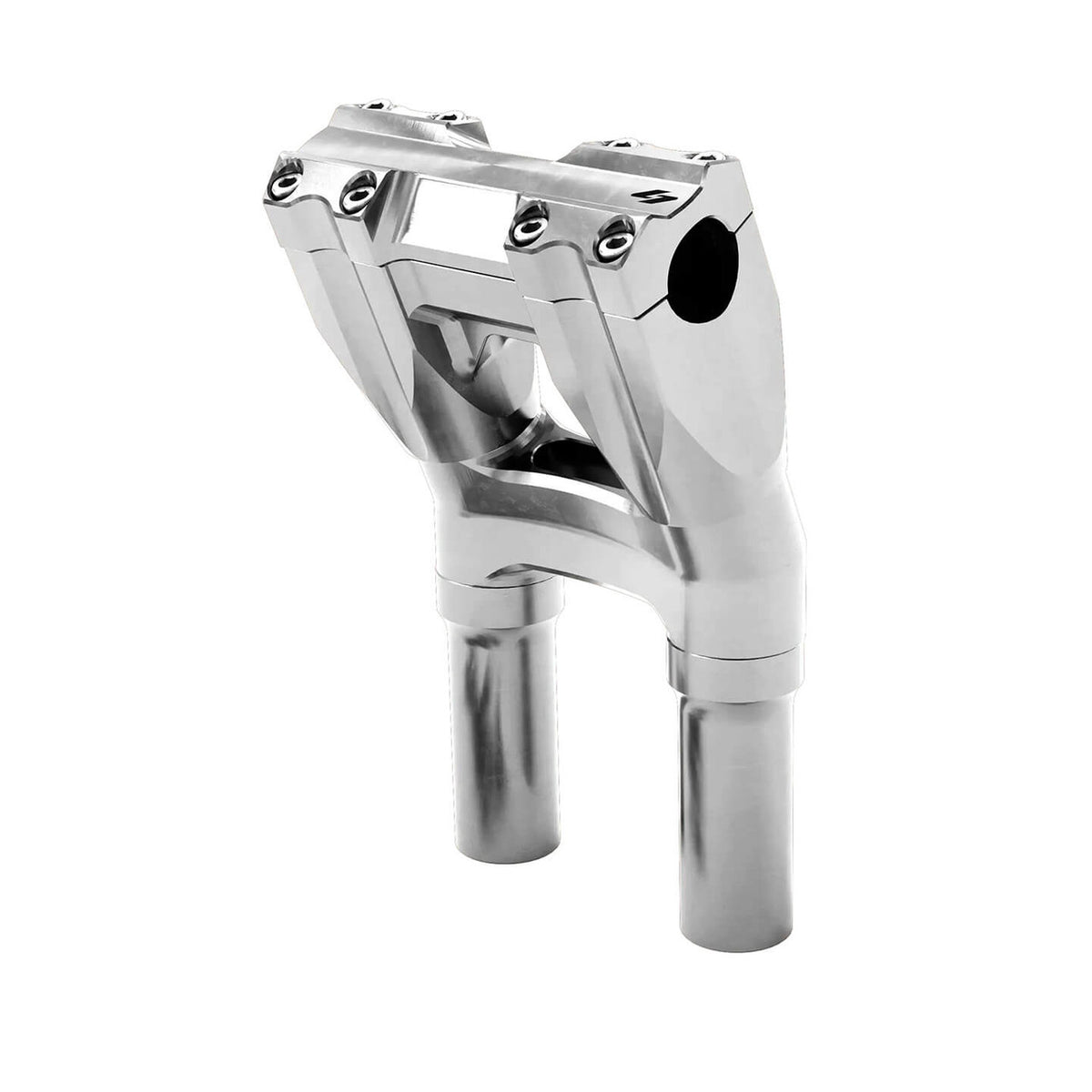

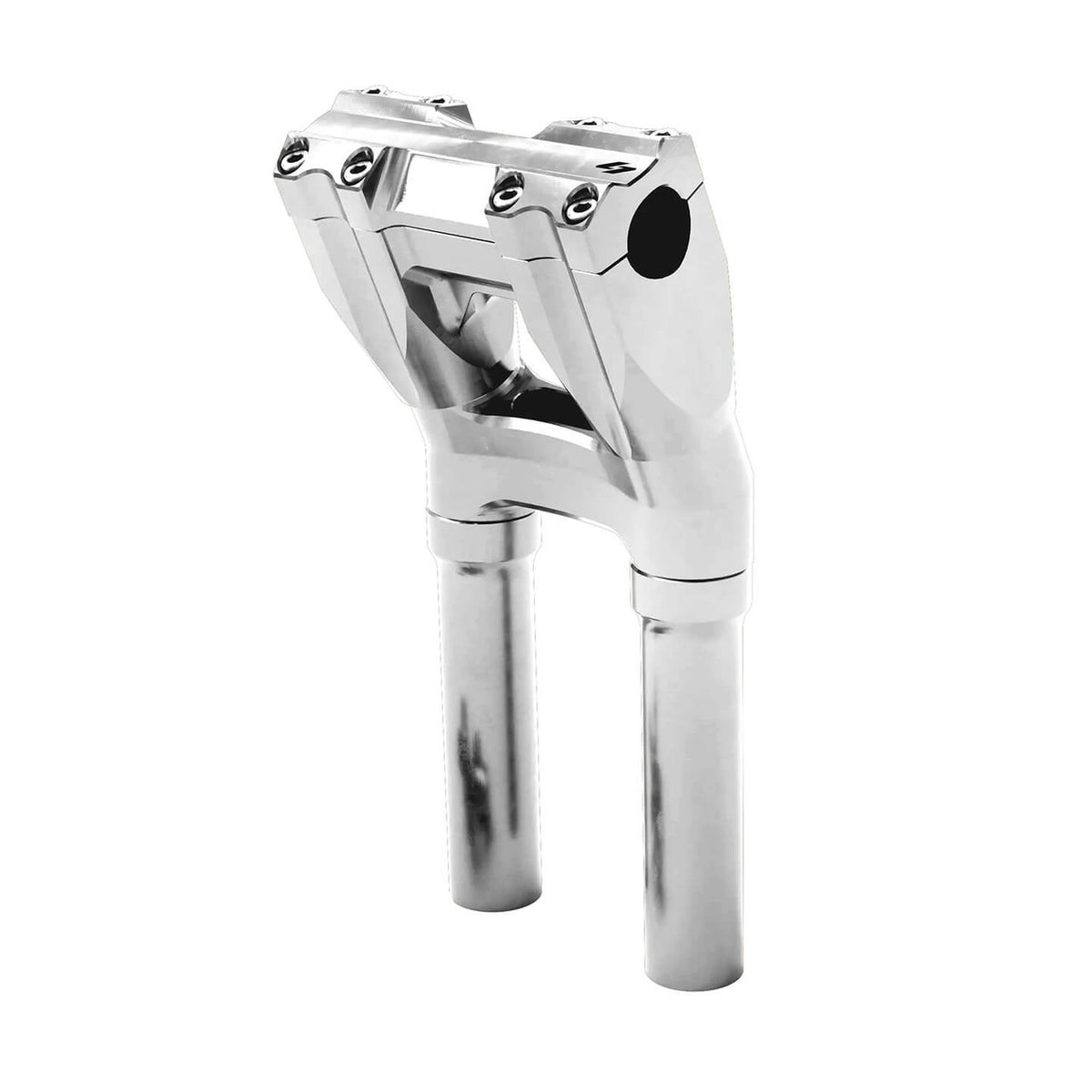

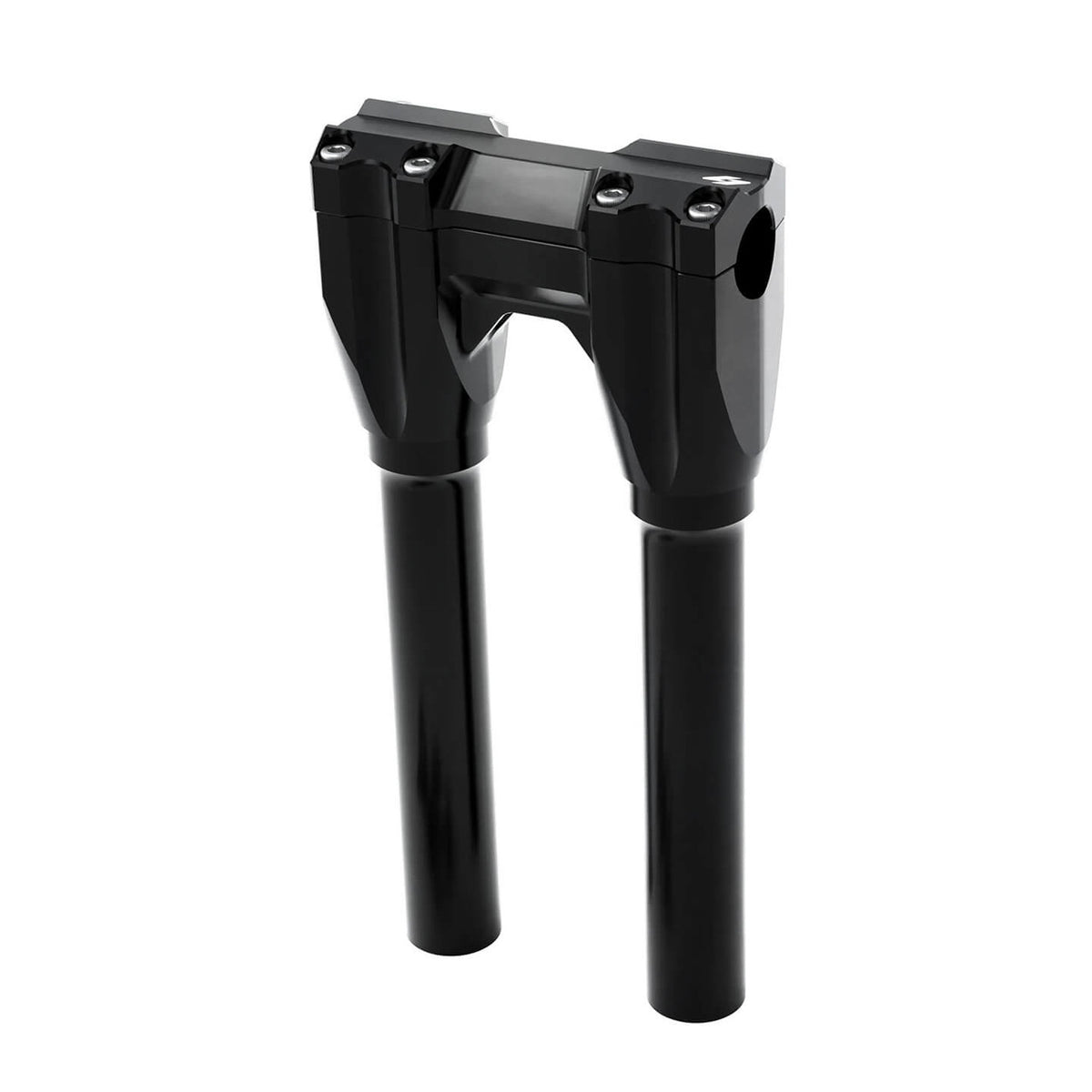

Aftermarket-fitment Isolated Risers use 3.5-inch mounting centers and 1/2-13 mounting bolts, with at least 1-1/4 inches protruding above the bushings. Mounting hardware is not included. Select straight or 1.5-inch-pullback Kickback geometry, exact height, and 1-inch or 1-1/8-inch bar clamp. Indian installations require a suitable adapter/pullback plate and verified dimensions; they are not direct bolt-on. Excludes integrated top-tree bar clamps. Custom modifications may be required. OEM/Kraus-tree packages with supplied mounting hardware are separate products.

Specifications

• Brand: Kraus Motor
• Manufacturer part number: UN-ISO-1066-B
• Manufacturer part number: UN-ISO-1056-B
• Manufacturer part number: UN-ISO-1068-B
• Manufacturer part number: UN-ISO-1058-B
• Manufacturer part number: UN-ISO-1060-B
• Manufacturer part number: UN-ISO-1050-B
• Manufacturer part number: UN-ISO-1062-B
• Manufacturer part number: UN-ISO-1052-B
• Manufacturer part number: UN-ISO-1026-B
• Manufacturer part number: UN-ISO-1006-B
• Manufacturer part number: UN-ISO-1028-B
• Manufacturer part number: UN-ISO-1008-B
• Manufacturer part number: UN-ISO-1020-B
• Manufacturer part number: UN-ISO-1010-B
• Manufacturer part number: UN-ISO-1022-B
• Manufacturer part number: UN-ISO-1012-B
• Manufacturer part number: UN-ISO-1066-M
• Manufacturer part number: UN-ISO-1056-M
• Manufacturer part number: UN-ISO-1068-M
• Manufacturer part number: UN-ISO-1058-M
• Manufacturer part number: UN-ISO-1060-M
• Manufacturer part number: UN-ISO-1050-M
• Manufacturer part number: UN-ISO-1062-M
• Manufacturer part number: UN-ISO-1052-M
• Manufacturer part number: UN-ISO-1026-M
• Manufacturer part number: UN-ISO-1006-M
• Manufacturer part number: UN-ISO-1028-M
• Manufacturer part number: UN-ISO-1008-M
• Manufacturer part number: UN-ISO-1020-M
• Manufacturer part number: UN-ISO-1010-M
• Manufacturer part number: UN-ISO-1022-M
• Manufacturer part number: UN-ISO-1012-M

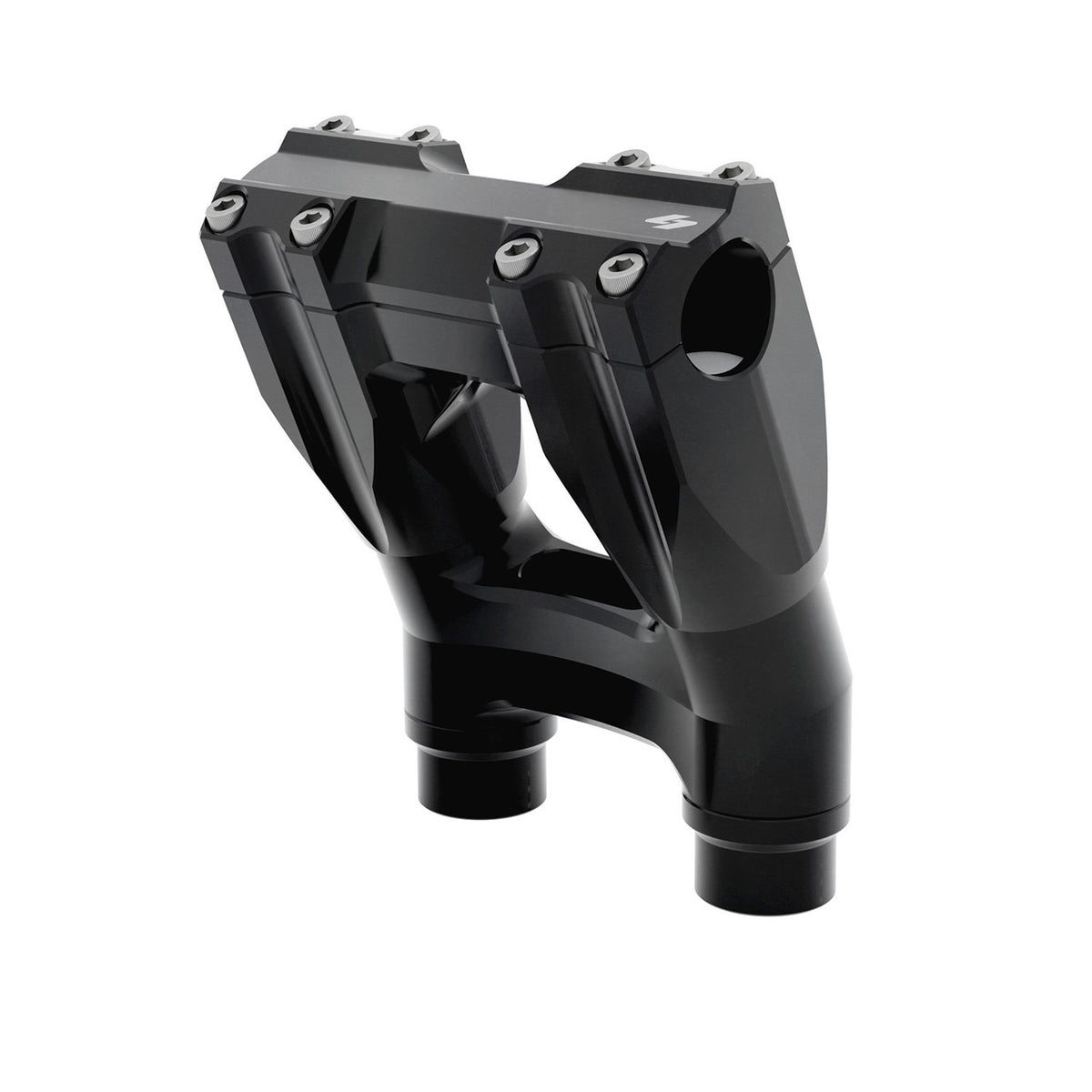

• UN-ISO-1066-B: Black Anodized / Kickback / 6" / 1-1/8"
• UN-ISO-1056-B: Black Anodized / Kickback / 6" / 1"
• UN-ISO-1068-B: Black Anodized / Kickback / 8" / 1-1/8"
• UN-ISO-1058-B: Black Anodized / Kickback / 8" / 1"
• UN-ISO-1060-B: Black Anodized / Kickback / 10" / 1-1/8"
• UN-ISO-1050-B: Black Anodized / Kickback / 10" / 1"

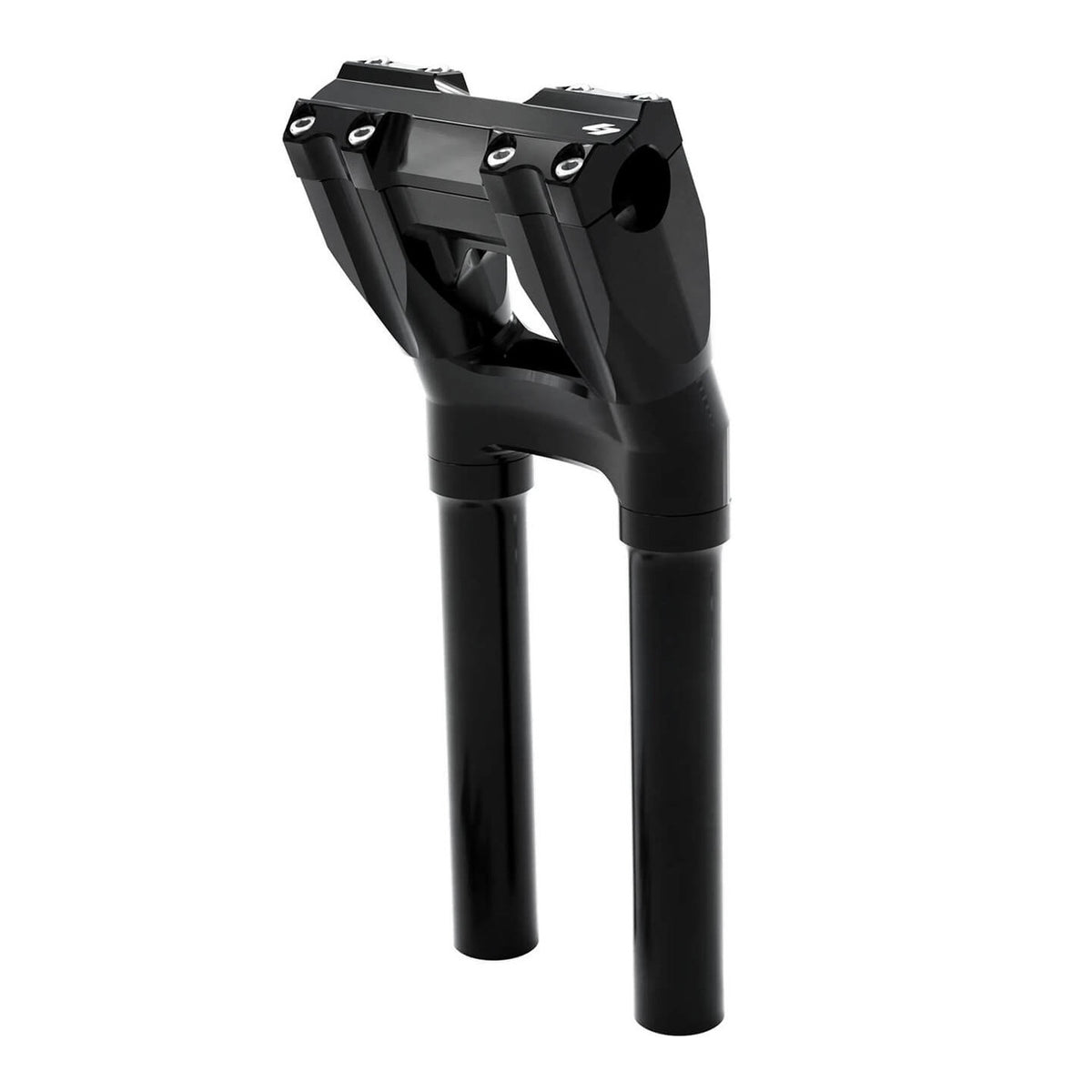

• UN-ISO-1062-B: Black Anodized / Kickback / 12" / 1-1/8"
• UN-ISO-1052-B: Black Anodized / Kickback / 12" / 1"

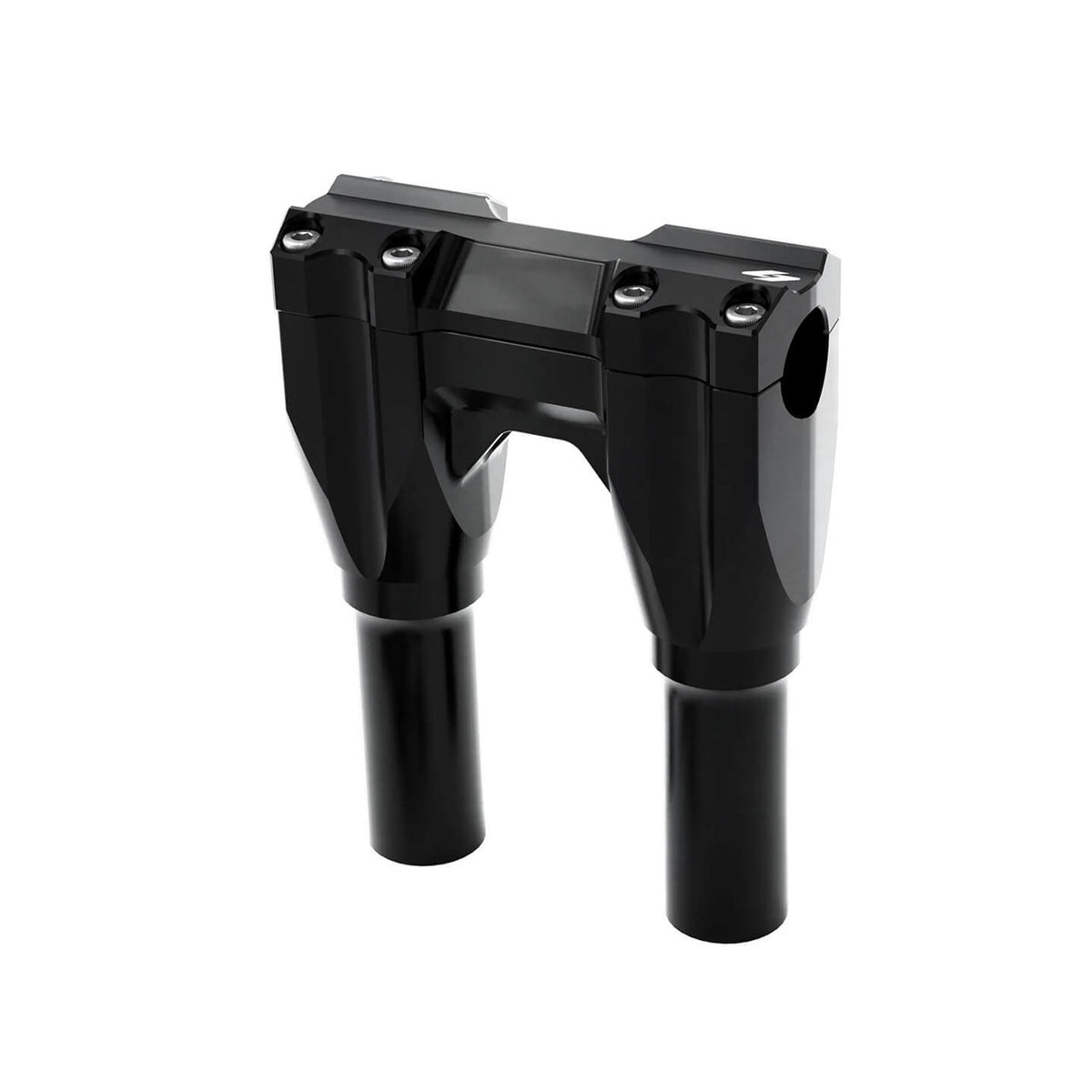

• UN-ISO-1026-B: Black Anodized / Straight / 6" / 1-1/8"
• UN-ISO-1006-B: Black Anodized / Straight / 6" / 1"

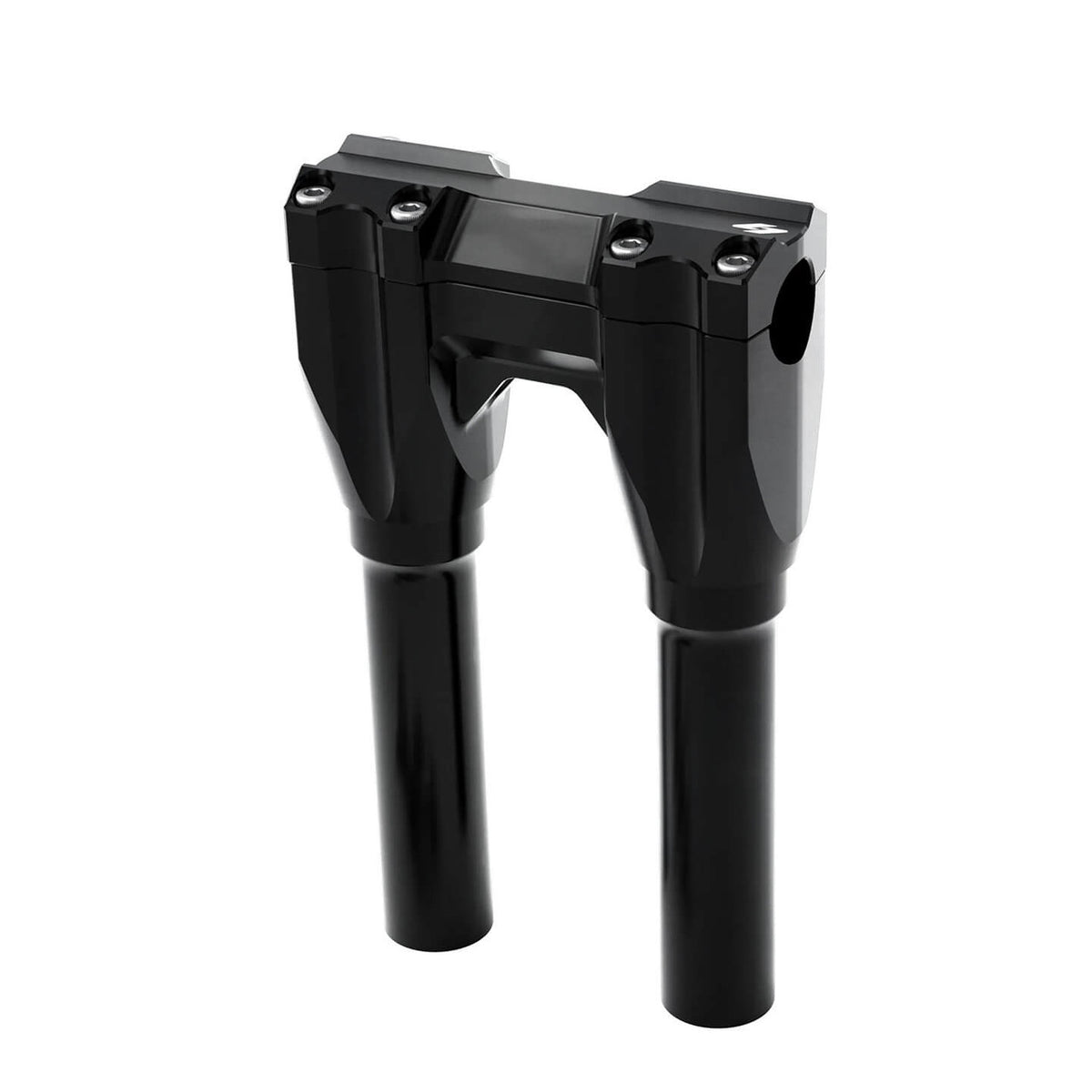

• UN-ISO-1028-B: Black Anodized / Straight / 8" / 1-1/8"
• UN-ISO-1008-B: Black Anodized / Straight / 8" / 1"
• UN-ISO-1020-B: Black Anodized / Straight / 10" / 1-1/8"
• UN-ISO-1010-B: Black Anodized / Straight / 10" / 1"
• UN-ISO-1022-B: Black Anodized / Straight / 12" / 1-1/8"
• UN-ISO-1012-B: Black Anodized / Straight / 12" / 1"

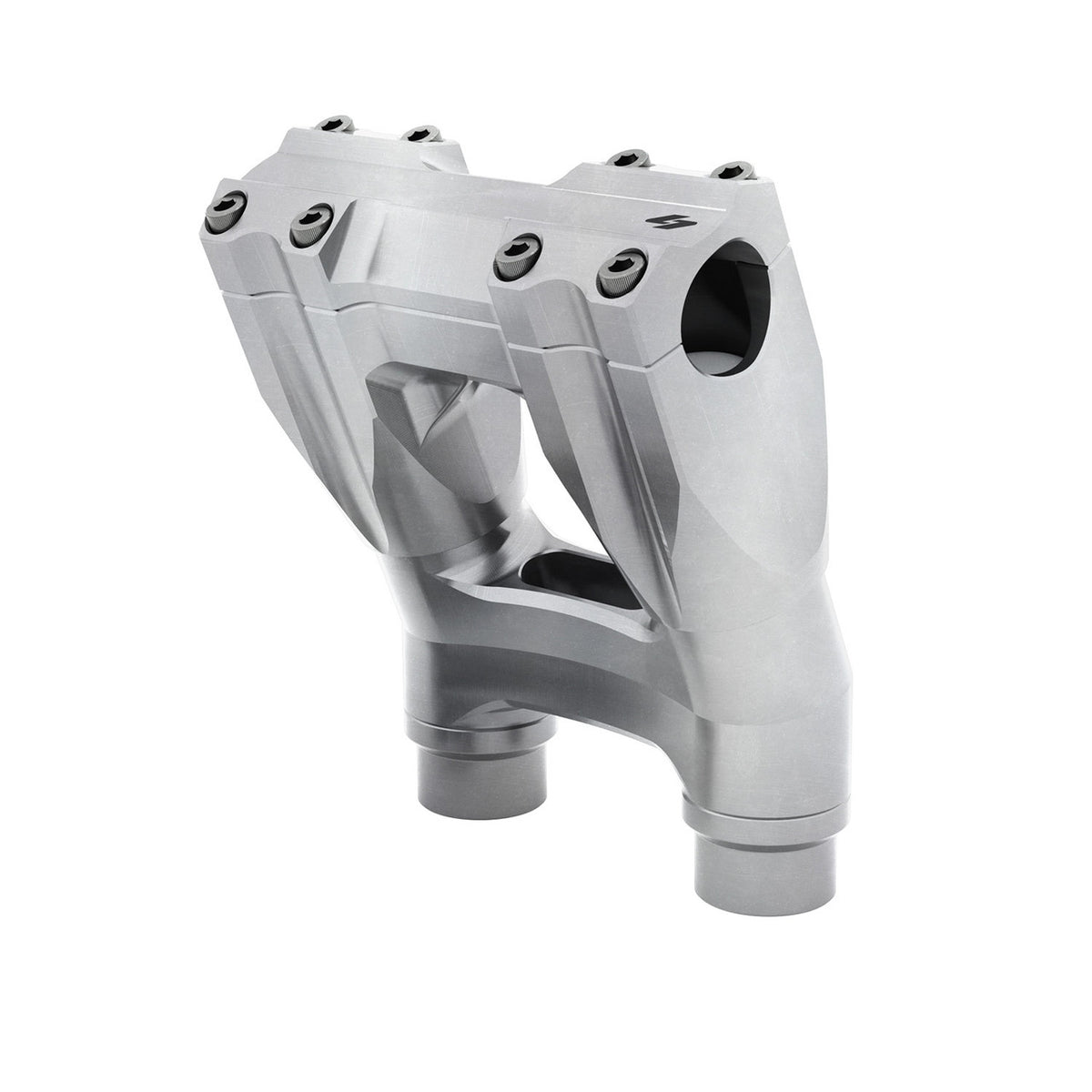

• UN-ISO-1066-M: Machine Finish / Kickback / 6" / 1-1/8"
• UN-ISO-1056-M: Machine Finish / Kickback / 6" / 1"
• UN-ISO-1068-M: Machine Finish / Kickback / 8" / 1-1/8"
• UN-ISO-1058-M: Machine Finish / Kickback / 8" / 1"
• UN-ISO-1060-M: Machine Finish / Kickback / 10" / 1-1/8"
• UN-ISO-1050-M: Machine Finish / Kickback / 10" / 1"
• UN-ISO-1062-M: Machine Finish / Kickback / 12" / 1-1/8"
• UN-ISO-1052-M: Machine Finish / Kickback / 12" / 1"

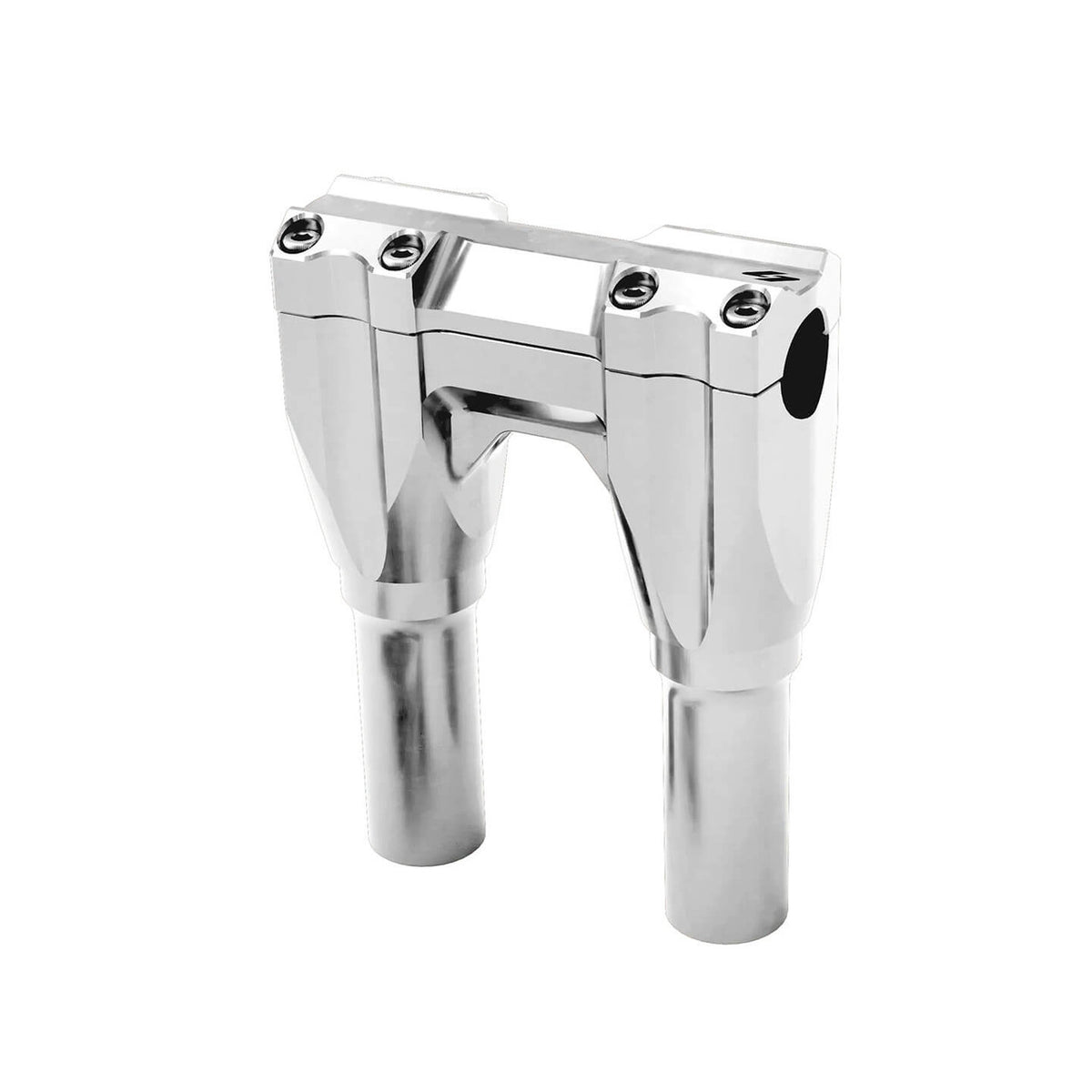

• UN-ISO-1026-M: Machine Finish / Straight / 6" / 1-1/8"
• UN-ISO-1006-M: Machine Finish / Straight / 6" / 1"

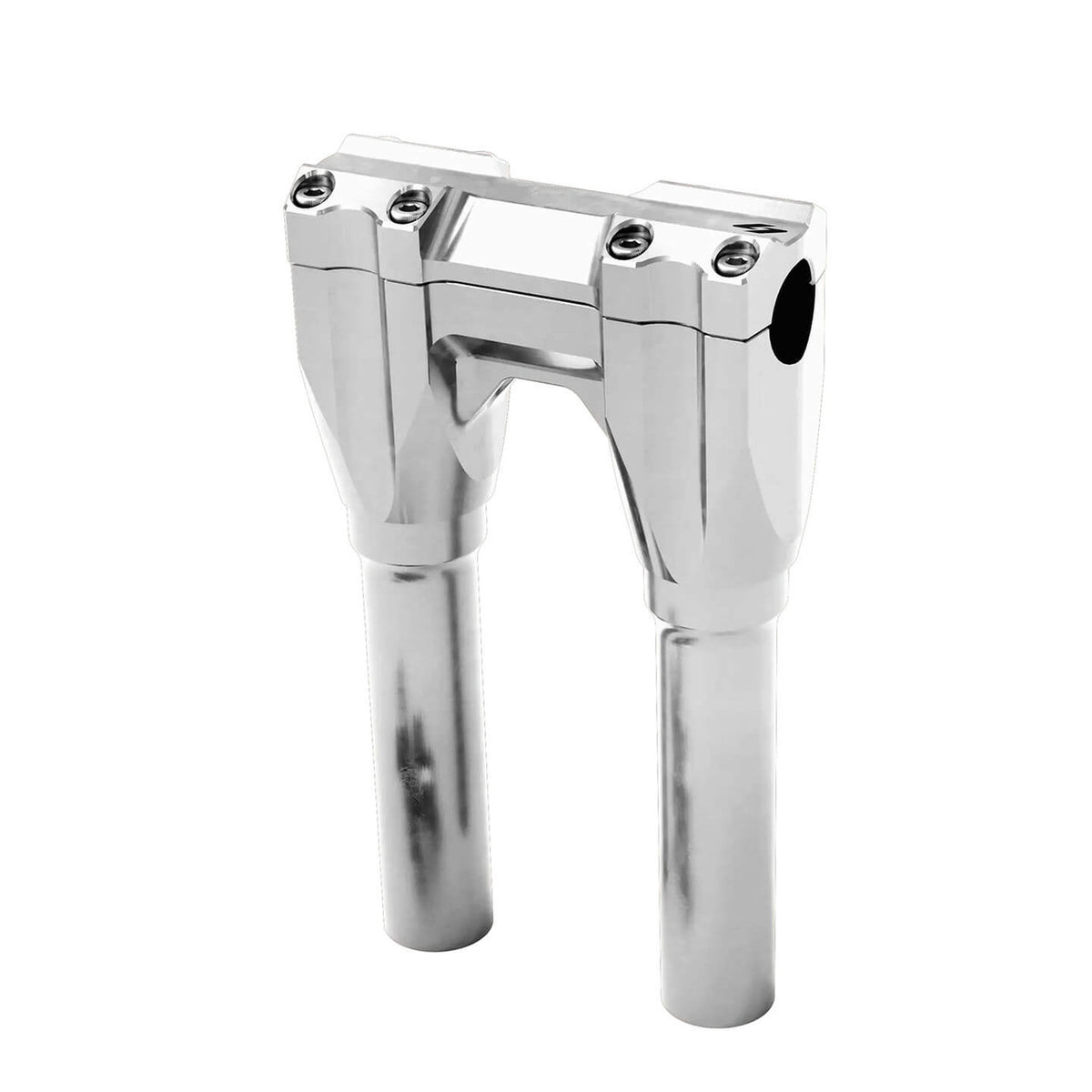

• UN-ISO-1028-M: Machine Finish / Straight / 8" / 1-1/8"
• UN-ISO-1008-M: Machine Finish / Straight / 8" / 1"
• UN-ISO-1020-M: Machine Finish / Straight / 10" / 1-1/8"
• UN-ISO-1010-M: Machine Finish / Straight / 10" / 1"

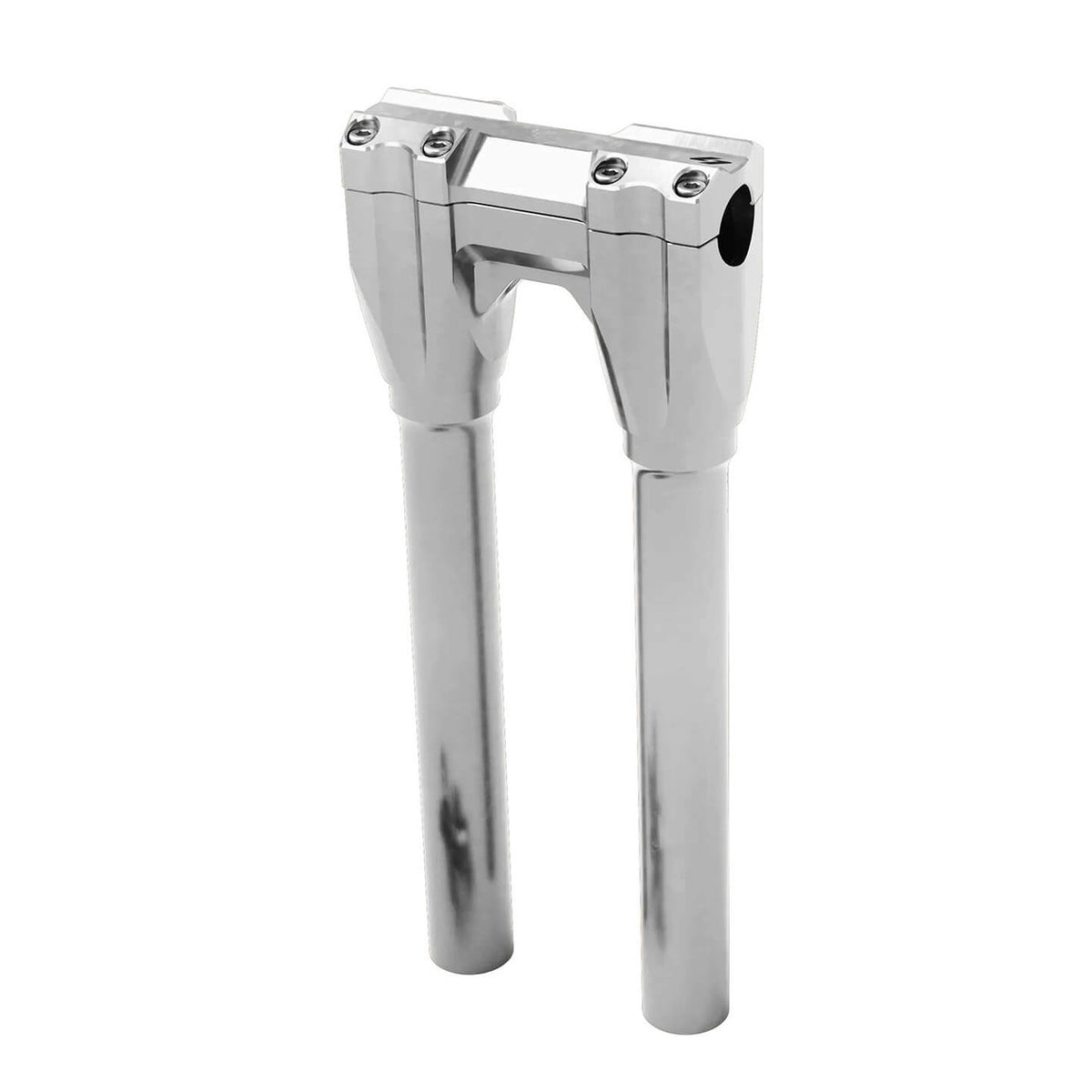

• UN-ISO-1022-M: Machine Finish / Straight / 12" / 1-1/8"
• UN-ISO-1012-M: Machine Finish / Straight / 12" / 1"

Supply and delivery

• Overseas warehouse. Estimated delivery: 7–10 business days.

Installation notes

• The shared diagrams’ OEM mounting bushing/bolt sets are excluded from this hardware-free version. Specified OEM 1/4-20 top-clamp bolts use 6 ft-lb with an even small clamp gap; do not force the gap closed. The diagrams’ specified 1/2-13 mounting hardware uses 55 ft-lb and Loctite 243; verify the actual separately supplied hardware’s material, length and torque applicability. Leg replacement requires removing the riser assembly and following the leg guide; it is not an on-bike height adjustment. Have a qualified technician follow the OEM manual, test slowly and recheck. Improper installation can cause severe injury or death.
• Manufacturer installation guide: https://krausmotorco.com/content/pdfs/iso_risers-schematic-v3.pdf
• Manufacturer installation guide: https://krausmotorco.com/content/pdfs/kickback_iso_risers-schematic-V3.pdf
• Manufacturer installation guide: https://krausmotorco.com/content/pdfs/iso-riser-leg-replace-install-guide.pdf
