Kraus Motor Pro-4 Docking Hardware - 2014+ Touring / No Clamp

Pro-4 billet-aluminum docking hardware for 2014-up Touring/Bagger models. This configuration does not include reservoir clamps. Supported reservoirs are FOX QS3-QSR and Öhlins HD 044, 779, 050 and 051. Other reservoir shocks, CVO Showa and Screamin’ Eagle Öhlins are excluded; the guide also advises against HD 357, 54000193 and 54000350. Base hardware includes one left and one right plate, four outer spacers, four docking bushings, and two each of the front/rear inner spacers. Fasteners depend on configuration; the guide lists two or four 1¾-inch bolts.

Specifications

• Brand: Kraus Motor
• Manufacturer part number: ST-SC-40-B
• Manufacturer part number: ST-SC-40-M

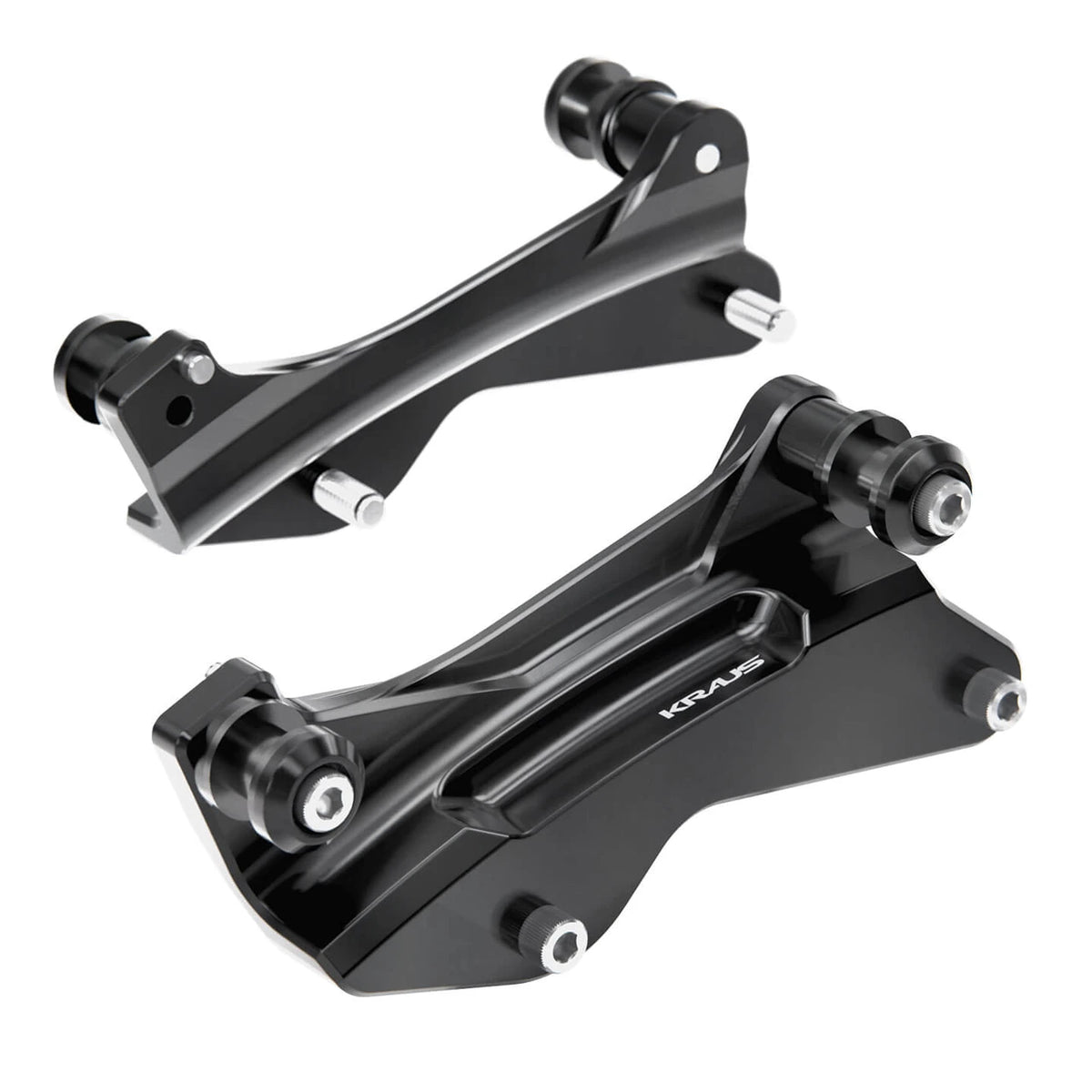

• ST-SC-40-B: Black Anodized / No Clamp

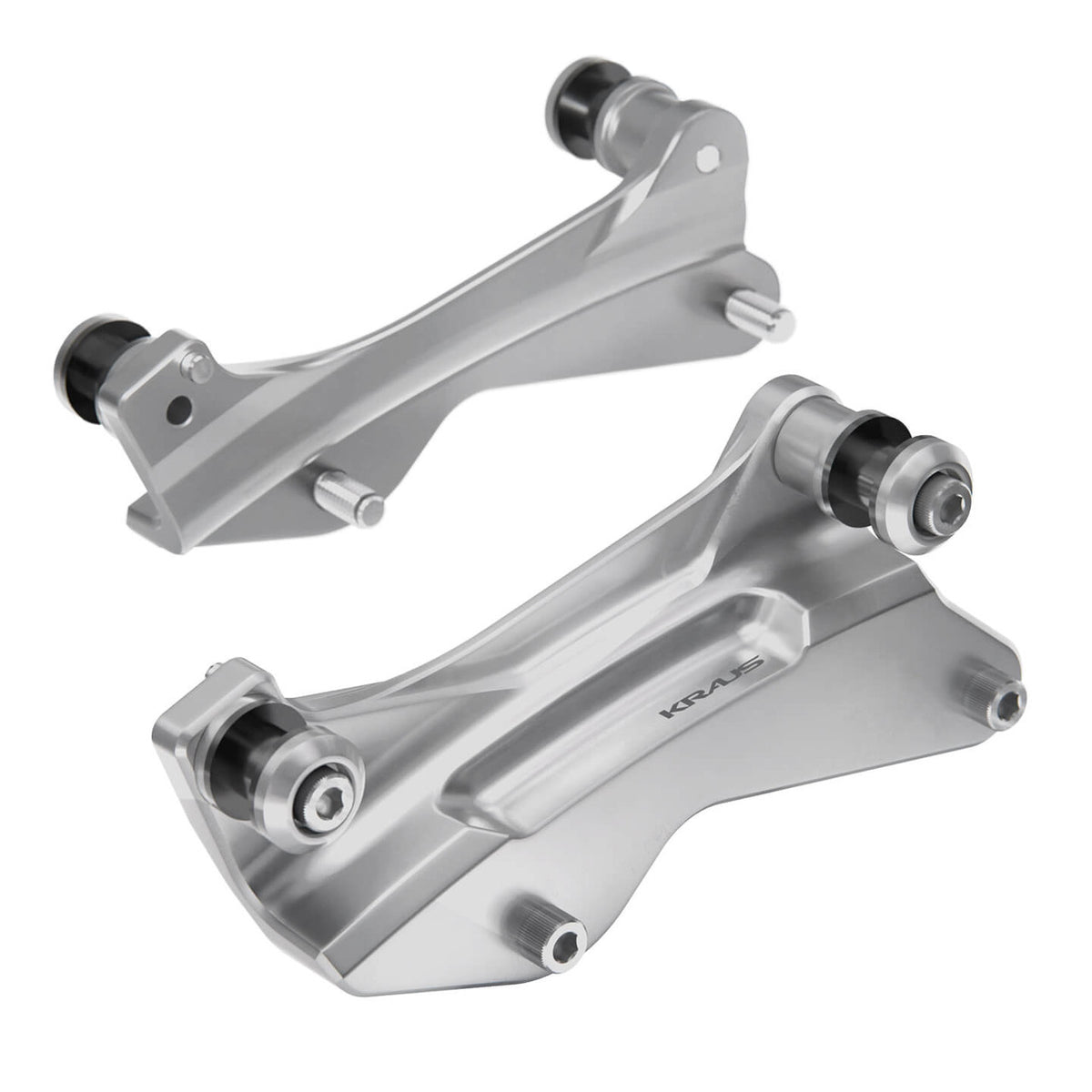

• ST-SC-40-M: Machine Finish / No Clamp

Supply and delivery

• Overseas warehouse. Estimated delivery: 7–10 business days.

Installation notes

• No-Clamp kits need separate clamps. Attach reservoir clamps to the plates before fitting them to the motorcycle because later nut access is restricted. Select the correct supplied long/short bolts. The guide specifies 11 ft-lb/15 N·m for plates, bushings and clamps, with blue threadlocker at the plates. Set reservoir orientation for hose length, fittings and clearance: FOX inverted/angled, Öhlins logo outward. Hold the Harley detachable locking mechanism during insertion. Test slowly and recheck. Improper installation can cause severe injury or death.
• Manufacturer installation guide: https://krausmotorco.com/content/pdfs/kraus-pro-4-docking-hardware-install.pdf
