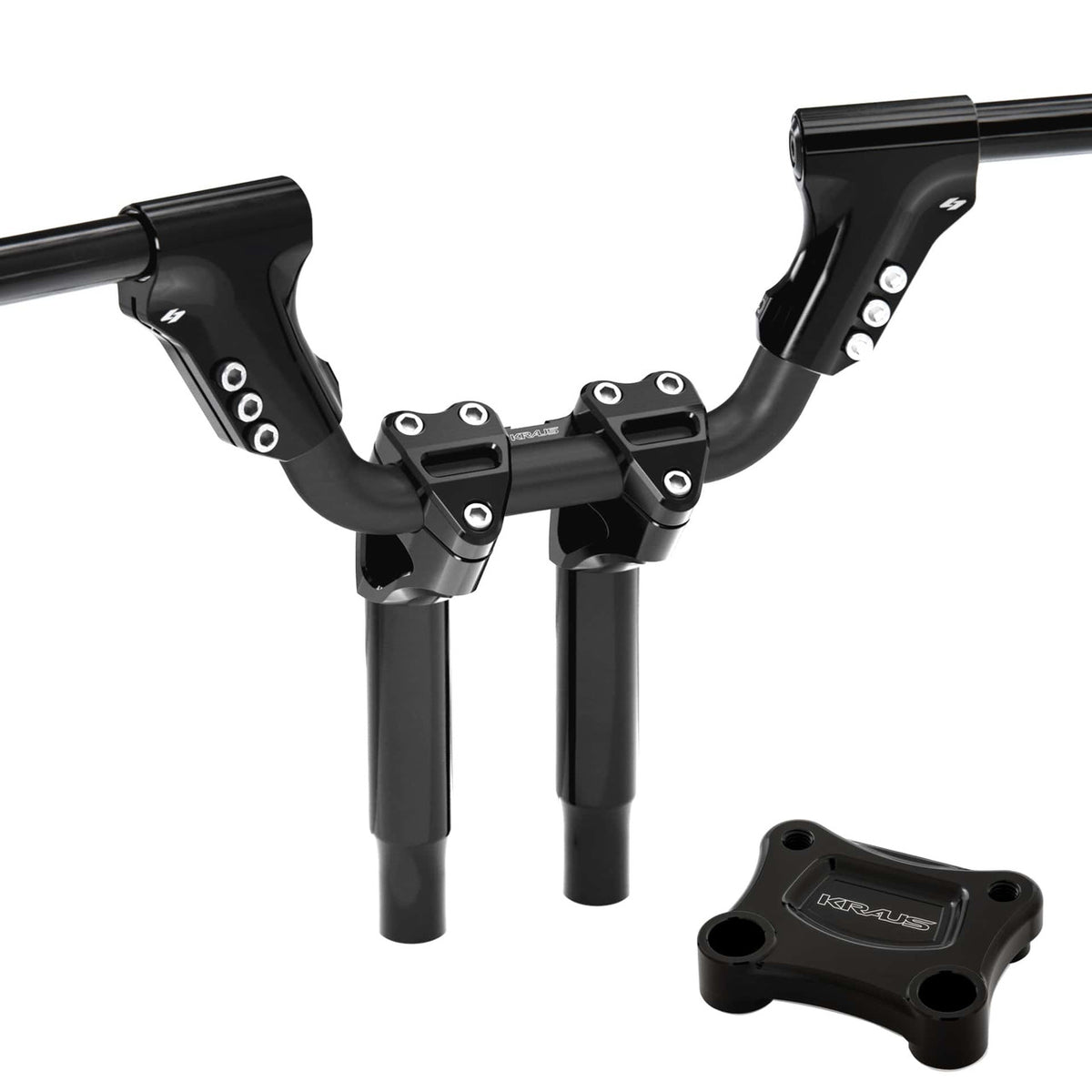

Kraus Motor Open Road Kit - 2008–2023 Street Glide / Ultra Glide / Electra Glide

For 2008–2023 Street Glide, Ultra Glide and Electra Glide. Includes Adjustable ISO bar, Workman Kickback risers and T-Rex plate. Selected nominal heights 13.5 or 15.5 inches already include the plate. The original ignition switch/steering-lock arrangement needs relocation or a confirmed dealer solution. Follow the correct model-year nacelle-cut template. Handlebar rise is 5.5 inches.

Specifications

• Brand: Kraus Motor
• Manufacturer part number: KT-ST-SG-232-B
• Manufacturer part number: KT-ST-SG-234-B
• KT-ST-SG-232-B: Black Anodized / 13.5"
• KT-ST-SG-234-B: Black Anodized / 15.5"

Supply and delivery

• Overseas warehouse. Estimated delivery: 7–10 business days.

Installation notes

• The Open Road configuration supplies solid riser bushings. Workman’s six 5/16-18 clamp screws use 10 ft-lb and two 1/2-13 mounting bolts 55 ft-lb, with recommended blue threadlocker. Follow the ISO bar guide for adjustable joints and verify brake/clutch/wiring slack. ISO bars require 1-1/8-inch riser clamps and matching pre 2024/ 2024-up bar ends. Inspect O-rings/grommets, route wires before tightening and align the clocking passage without pinching. Apply 8/14 ft-lb only at the respective illustrated joints, not uniformly. Black hardware is separate. Have a qualified technician follow the matching vehicle and kit manuals, test slowly and recheck. Improper installation can cause severe injury or death.
• Manufacturer installation guide: https://krausmotorco.com/content/pdfs/Kraus%20ISO%20Bar%20Instructions.pdf
• Manufacturer installation guide: https://krausmotorco.com/content/pdfs/kraus-workman-riser-install.pdf
• Manufacturer installation guide: https://krausmotorco.com/content/pdfs/ST-PB-01%20Schematic.pdf
• Manufacturer installation guide: https://krausmotorco.com/content/pdfs/Batwing-nacelle-cut-template.pdf
