Kraus Motor Open Road Gauge Relocation Kit - 2014–2023 Road Glide

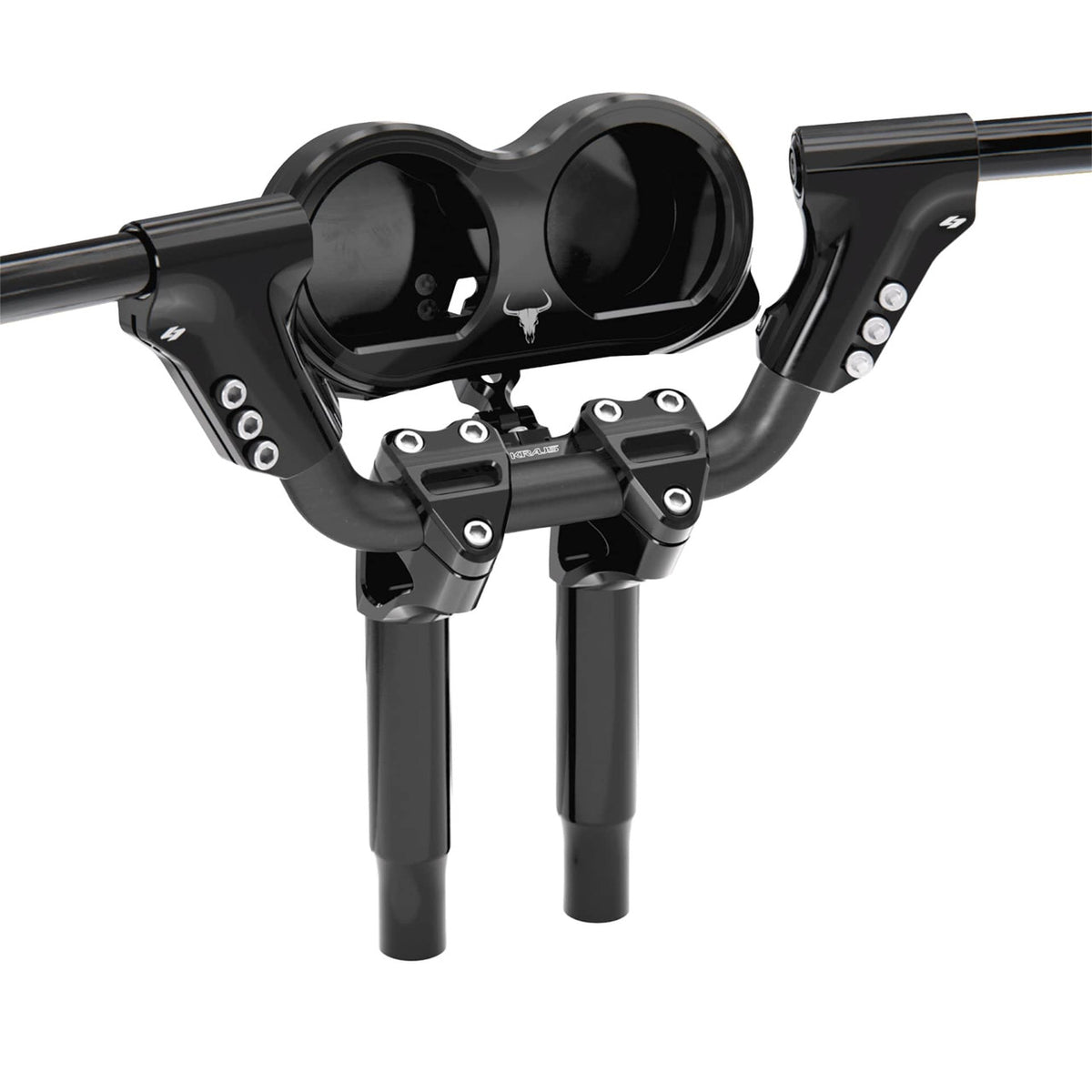

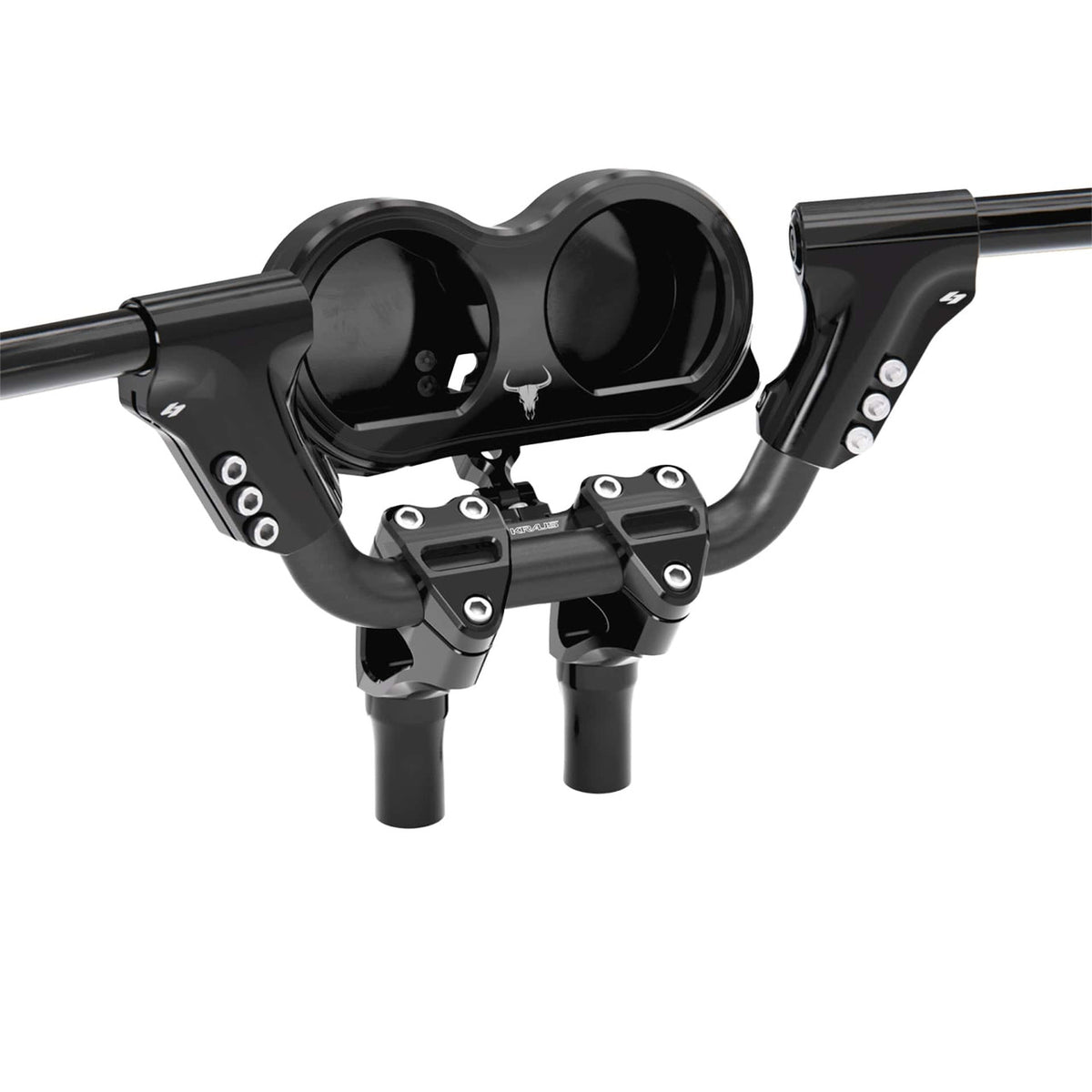

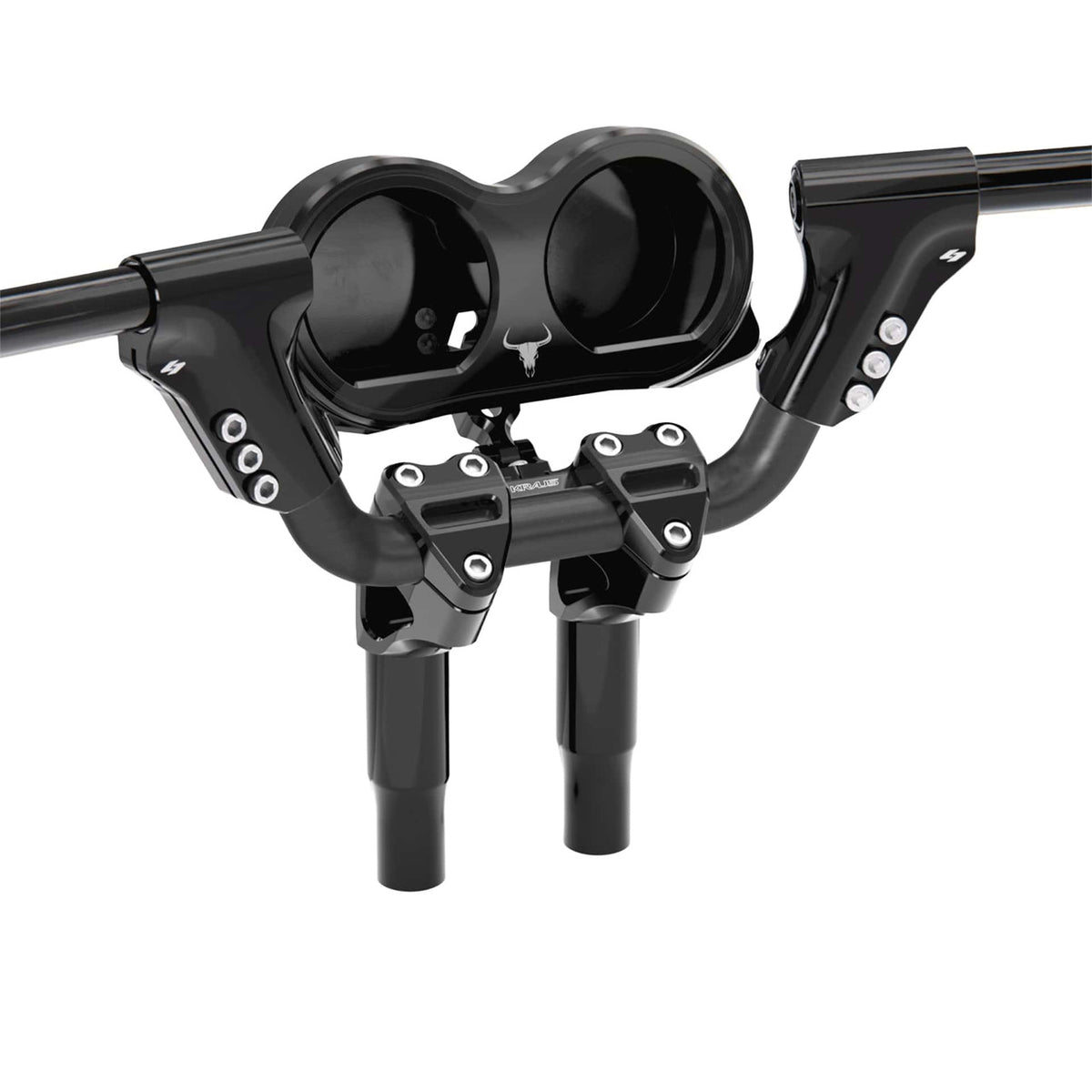

For 2014–2023 Road Glide. Includes Adjustable ISO bar and Workman Kickback risers. Handlebar rise is 5.5 inches; selected base heights are 10.5, 12.5 or 14.5 inches. Fitment for 2024 Road Glide Limited requires manufacturer confirmation before ordering. Includes Sandoval Dead Head RG bezel, Dovetail gauge mount and 1.5-inch extension for gauge relocation.

Specifications

• Brand: Kraus Motor
• Manufacturer part number: KT-ST-RG-230-Y-B
• Manufacturer part number: KT-ST-RG-232-Y-B
• Manufacturer part number: KT-ST-RG-234-Y-B
• KT-ST-RG-230-Y-B: Black Anodized / 10.5" / Yes
• KT-ST-RG-232-Y-B: Black Anodized / 12.5" / Yes
• KT-ST-RG-234-Y-B: Black Anodized / 14.5" / Yes

Supply and delivery

• Overseas warehouse. Estimated delivery: 7–10 business days.

Installation notes

• The Open Road configuration supplies solid riser bushings. Workman’s six 5/16-18 clamp screws use 10 ft-lb and two 1/2-13 mounting bolts 55 ft-lb, with recommended blue threadlocker. Follow the ISO bar guide for adjustable joints and verify brake/clutch/wiring slack. ISO bars require 1-1/8-inch riser clamps and matching pre 2024/ 2024-up bar ends. Inspect O-rings/grommets, route wires before tightening and align the clocking passage without pinching. Apply 8/14 ft-lb only at the respective illustrated joints, not uniformly. Black hardware is separate. Have a qualified technician follow the matching vehicle and kit manuals, test slowly and recheck. Improper installation can cause severe injury or death.
• Manufacturer installation guide: https://krausmotorco.com/content/pdfs/Kraus%20ISO%20Bar%20Instructions.pdf
• Manufacturer installation guide: https://krausmotorco.com/content/pdfs/kraus-workman-riser-install.pdf
