Biltwell Inc. Murdock O/S Straight Riser Set - 1-1/8-inch Clamp / 6–14 in

Straight Murdock O/S riser set for a 1-1/8-inch handlebar clamp section. Choose the height and finish, then check the fork-tree mounting pattern, controls and clearance.

Specifications

• Brand: Biltwell Inc.
• Manufacturer part number: 6413-105-06
• Manufacturer part number: 6413-105-08
• Manufacturer part number: 6413-105-10
• Manufacturer part number: 6413-105-12
• Manufacturer part number: 6413-201-14
• Investment-cast steel clamps with TIG-welded 4130 chromoly tubes.
• Handlebar clamp diameter: 1-1/8 in (28.575 mm).
• Mounting centres: 3.5 in (88.9 mm); lower mounting thread: 1/2-13.
• Clamp width: 5 in (127 mm) across the front and 2.25 in (57.15 mm) front to back.
• Height is measured from the mounting base to the handlebar centre in the manufacturer drawing.

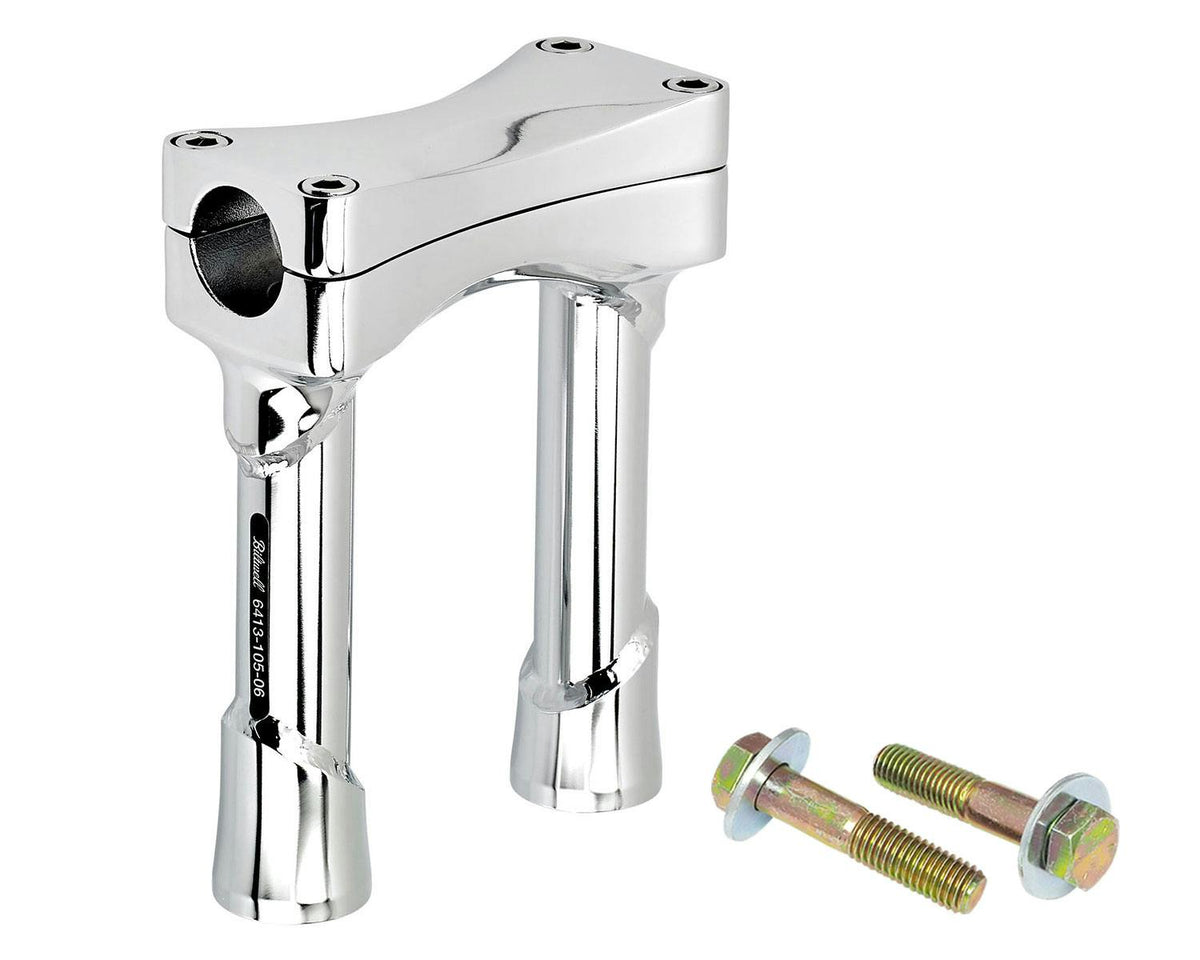

• 6413-105-06: 6 in / Chrome.

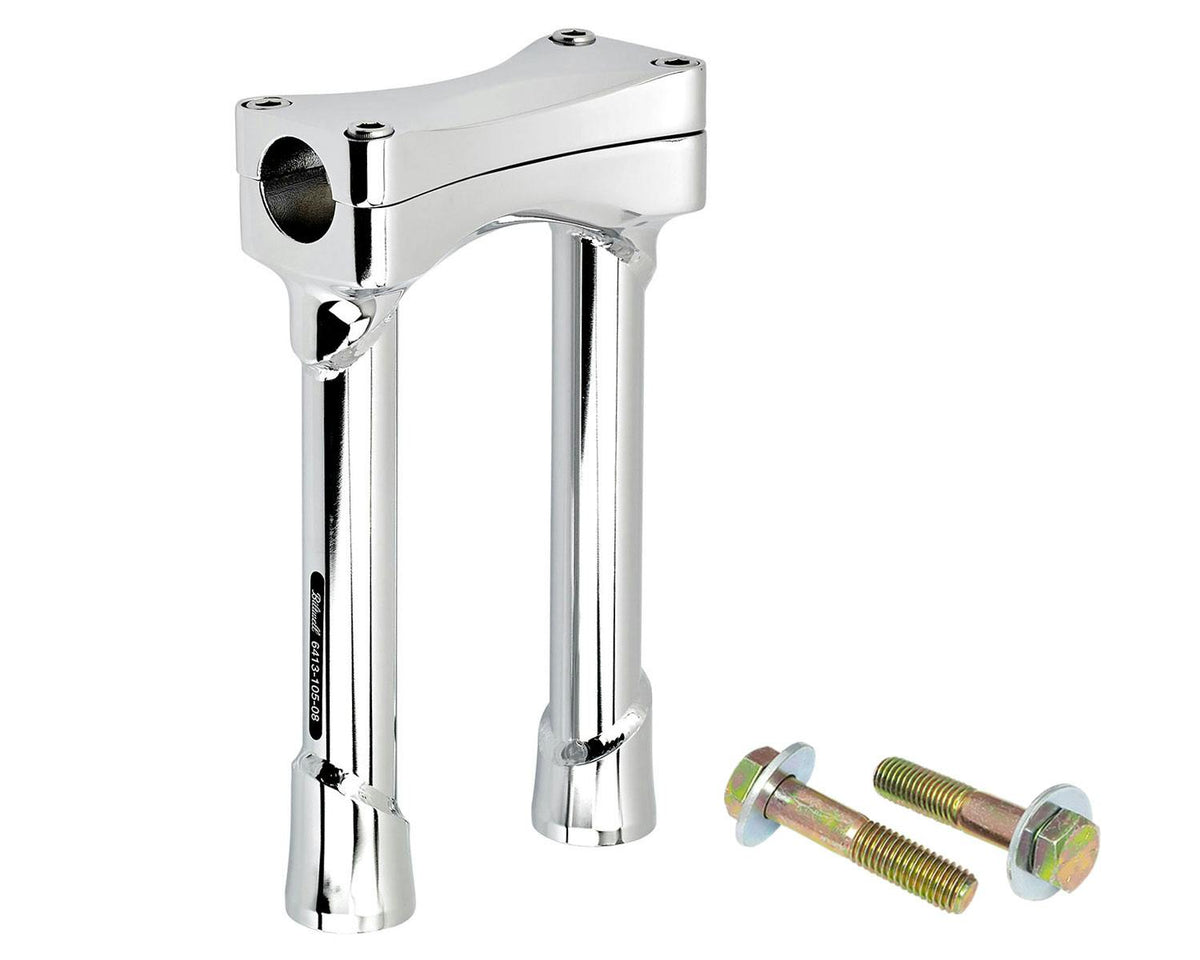

• 6413-105-08: 8 in / Chrome.

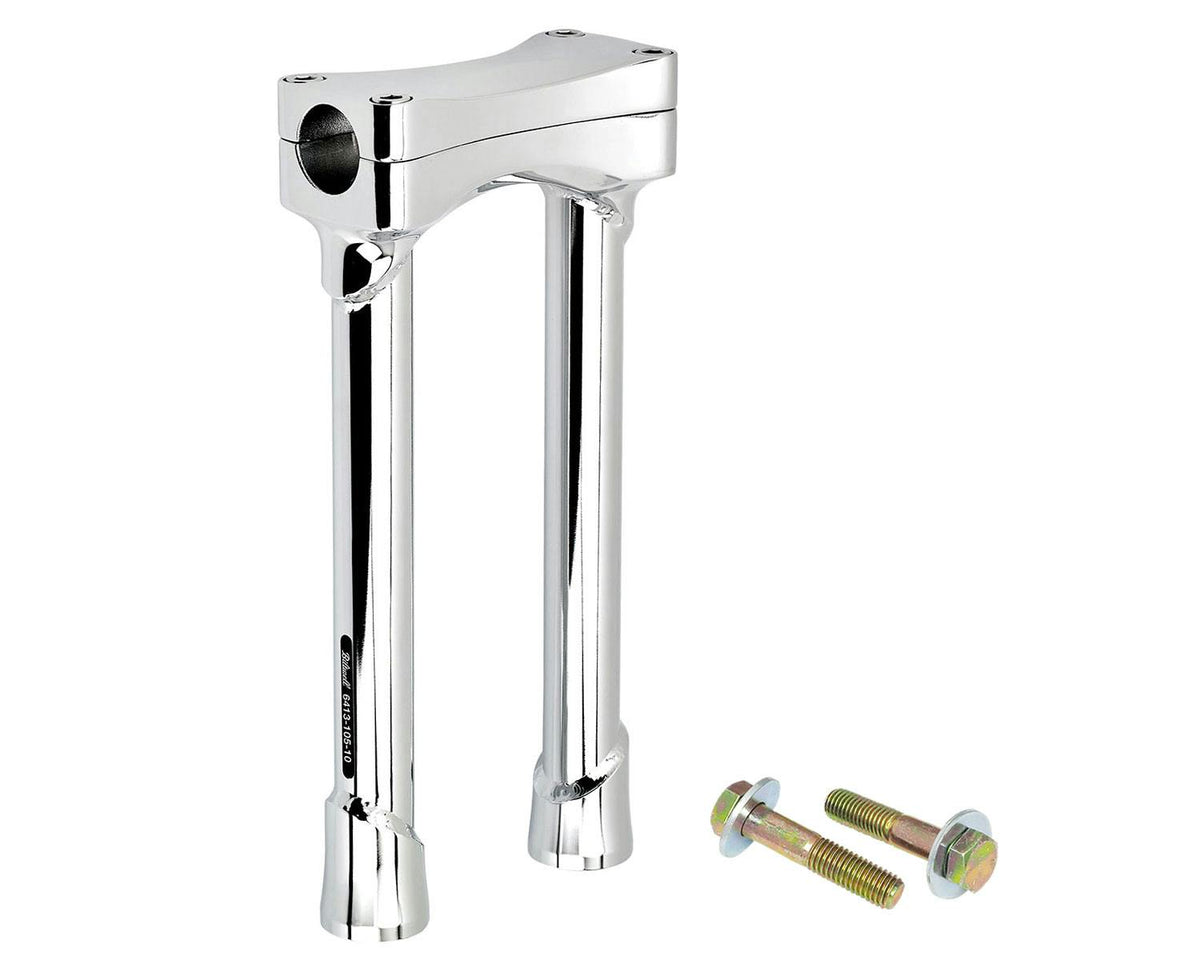

• 6413-105-10: 10 in / Chrome.

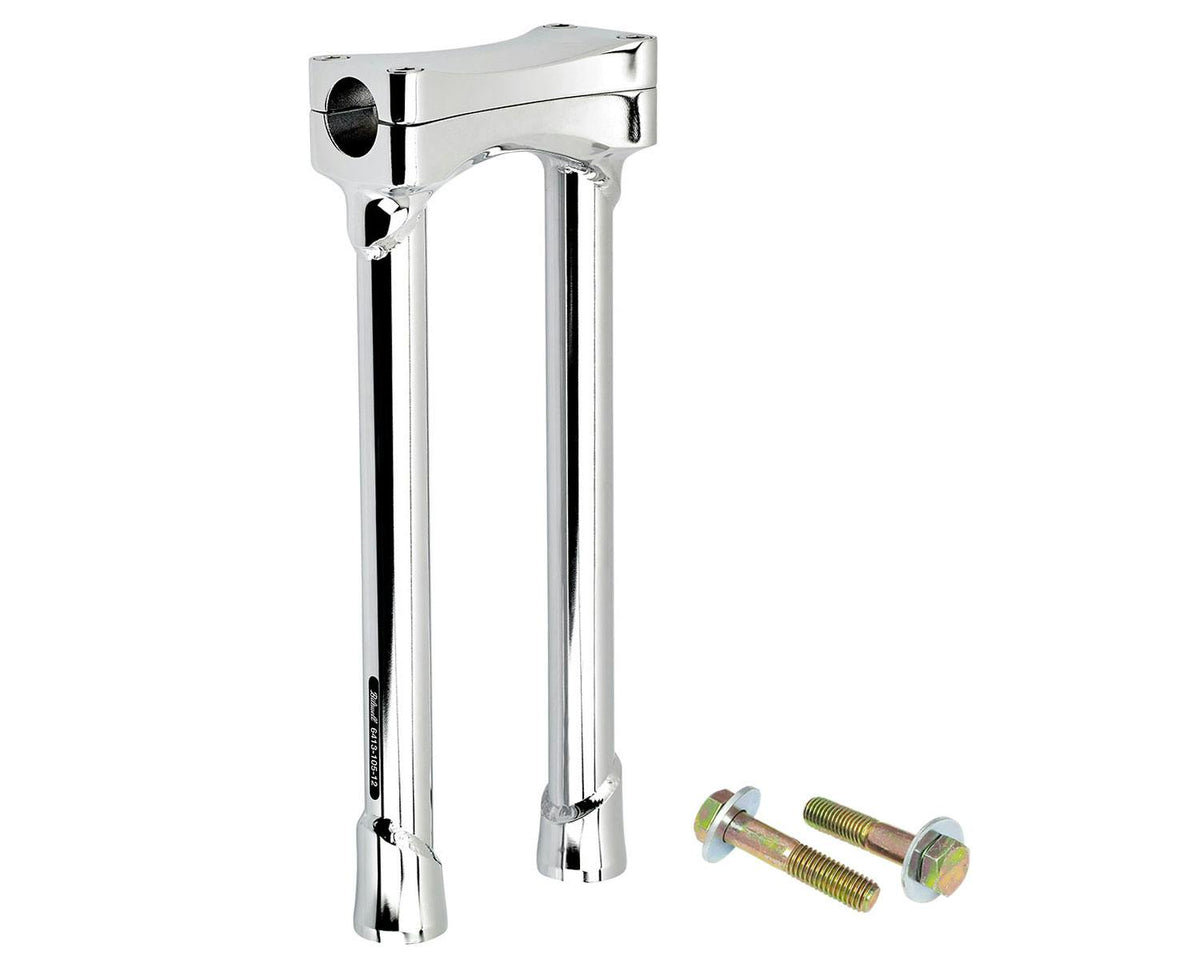

• 6413-105-12: 12 in / Chrome.

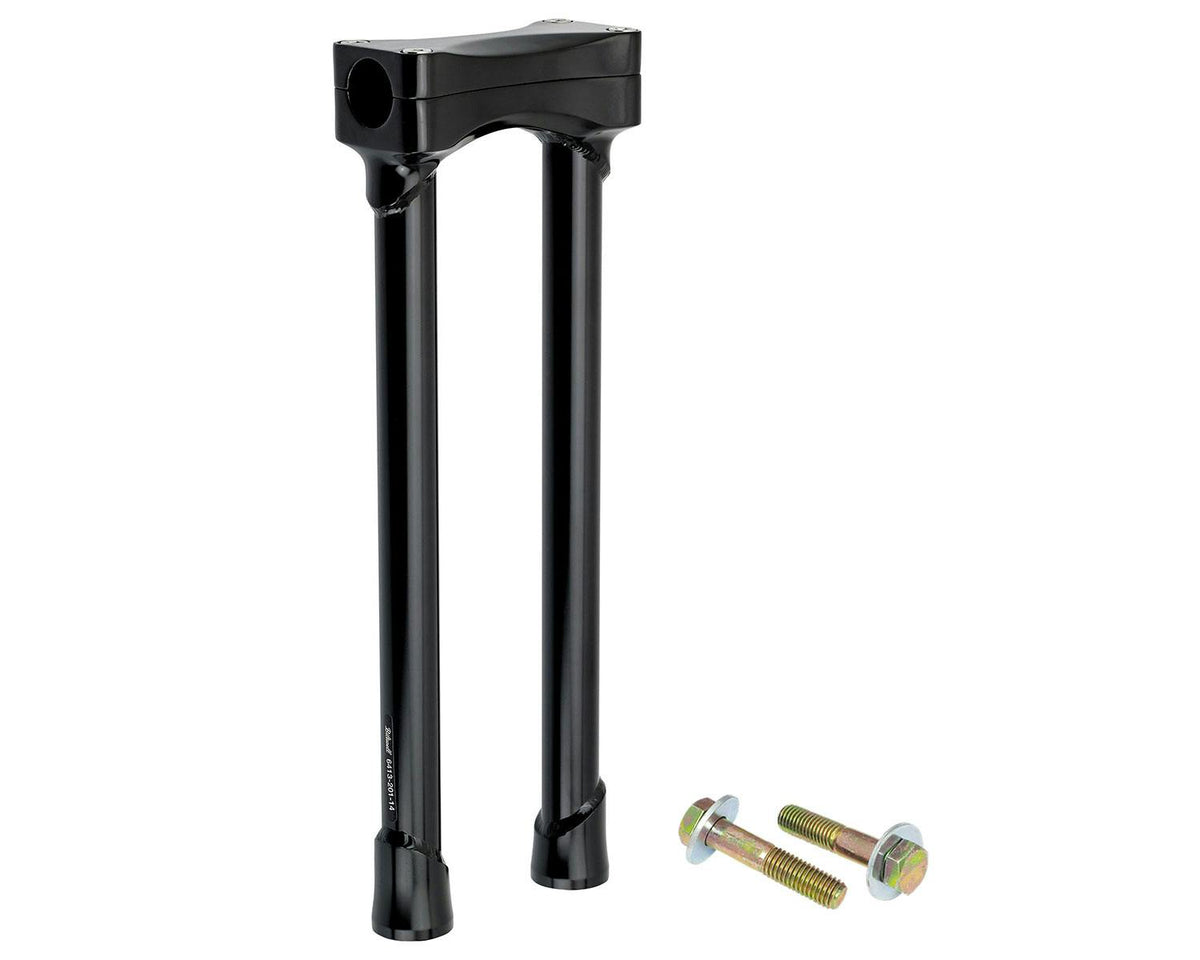

• 6413-201-14: 14 in / Black.
• Top-clamp screw thread: 5/16-18.

Fitment and installation

• For compatible Biltwell O/S handlebars with a 1-1/8-inch clamp section; confirm 3.5-inch fork-tree mounting centres and the 1/2-13 mounting interface.
• Not for 1-inch handlebar clamp sections or motorcycles with Springer forks.
• Installation requires professional knowledge and tools. Check control cables, hoses, wiring and clearance on the actual motorcycle.
• Use two 1/2-13 mounting bolts with flat washers and medium-strength blue threadlocker. Align the riser with the front wheel, then use a 3/4-inch socket and tighten to 30–40 ft-lb (40.6–54.2 N·m).
• Apply the same threadlocker to all four 5/16-18 clamp screws and start them by hand. Tighten progressively in an X pattern with a 1/4-inch Allen tool, then torque to 12–18 ft-lb (16.2–24.4 N·m).
• Thread condition or coating may require reworking with a tap or die.
• Hollow uprights permit internal wiring only with the required fabrication; this is not a prewired assembly.
• Check the top-clamp bolt pattern before reusing an original gauge bracket.

Package contents

• One assembled riser set in the selected height and finish.

Supply and delivery

• Overseas warehouse; estimated delivery in 7–10 business days.
• The supplier lists this series as discontinued when remaining stock sells out.
