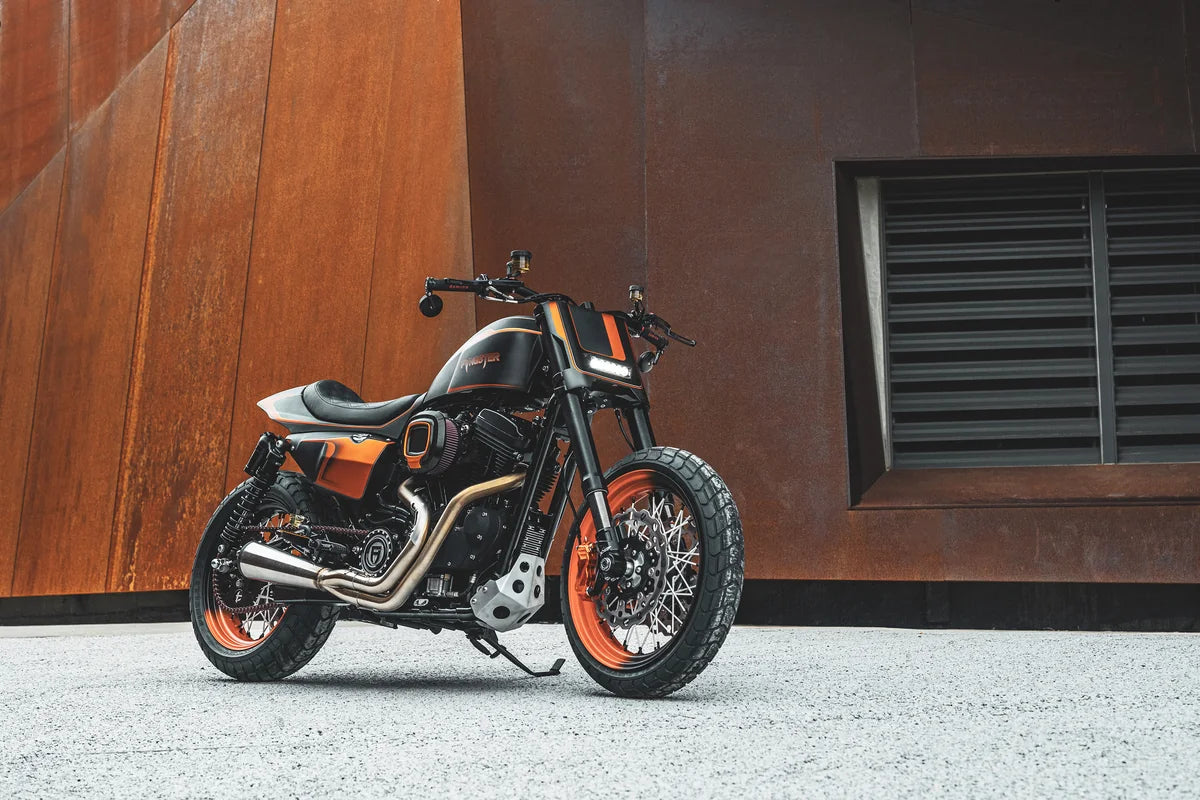

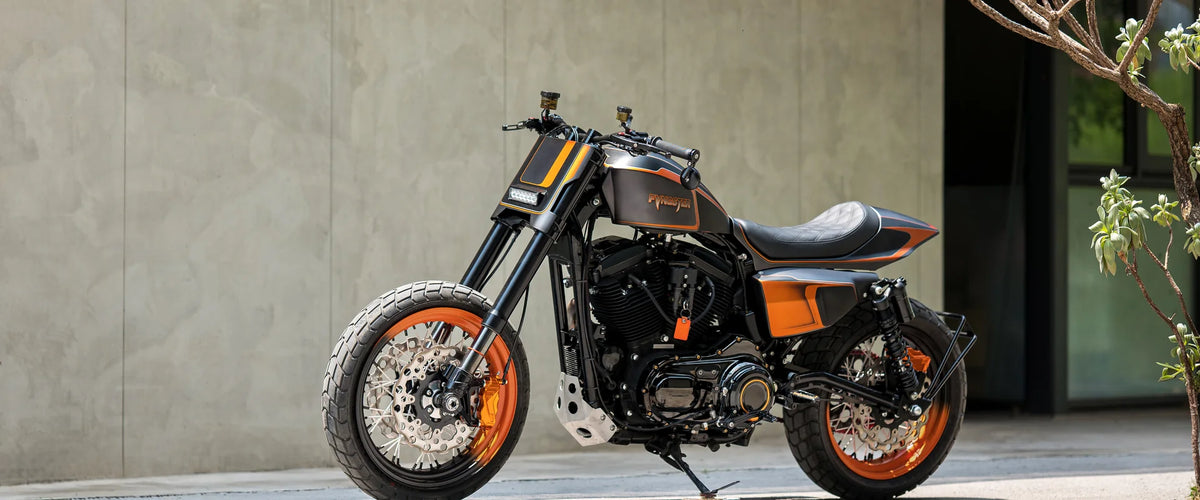

FANGSTER Street Tracker motorcycle build

STREET TRACKER | 2023

Street Tracker

FANGSTER’s first motorcycle build, defined by a compact street-tracker stance.

PROJECT SUMMARY

Design & Development

Keep the Sportster’s core platform, limit frame cutting and welding, and coordinate stance, proportion, color and function across the complete motorcycle.

Base Motorcycle
2009 Harley-Davidson Sportster 1200N Nightster
FANGSTER Street Tracker motorcycle build

PROJECT STORY

Motorcycle Build

Starting with the Nightster

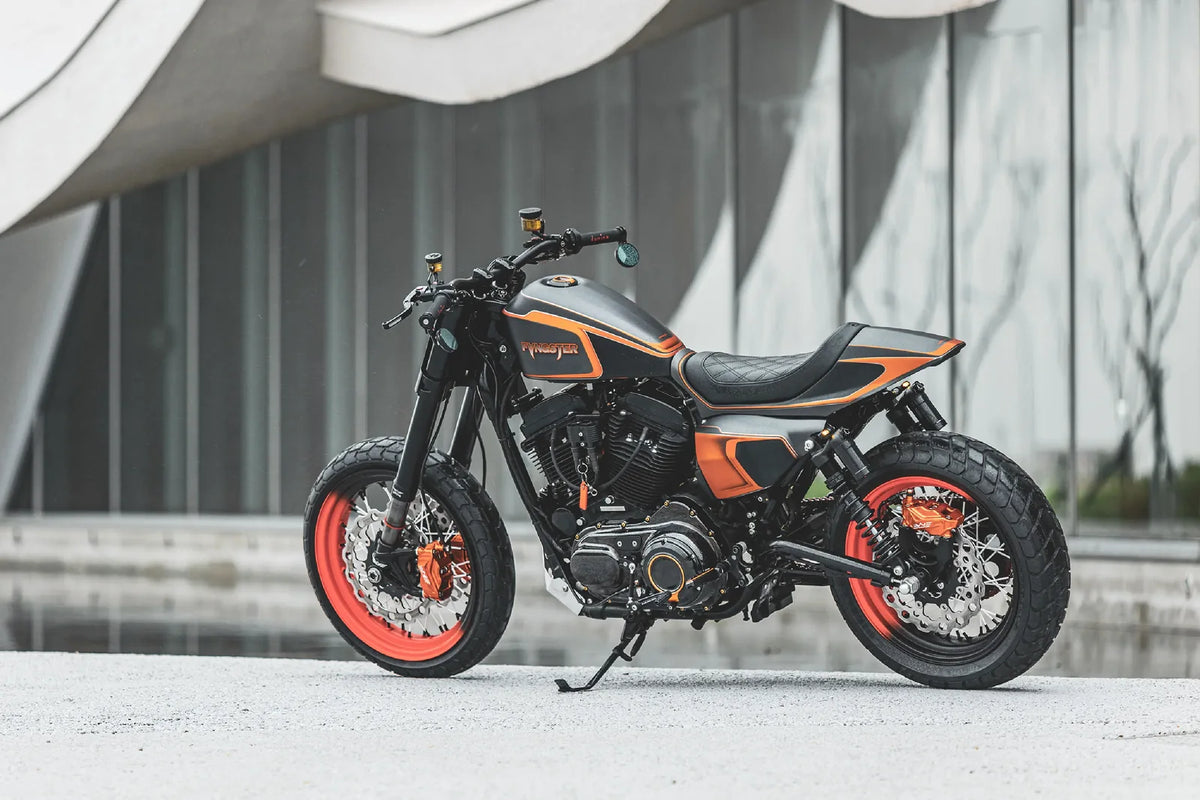

The taller rear stance and mixed wheel sizes set the tracker direction while keeping the Nightster recognizable. Developing the complete motorcycle allowed each installed component to work within one shared design language.

Color Collection as a complete system

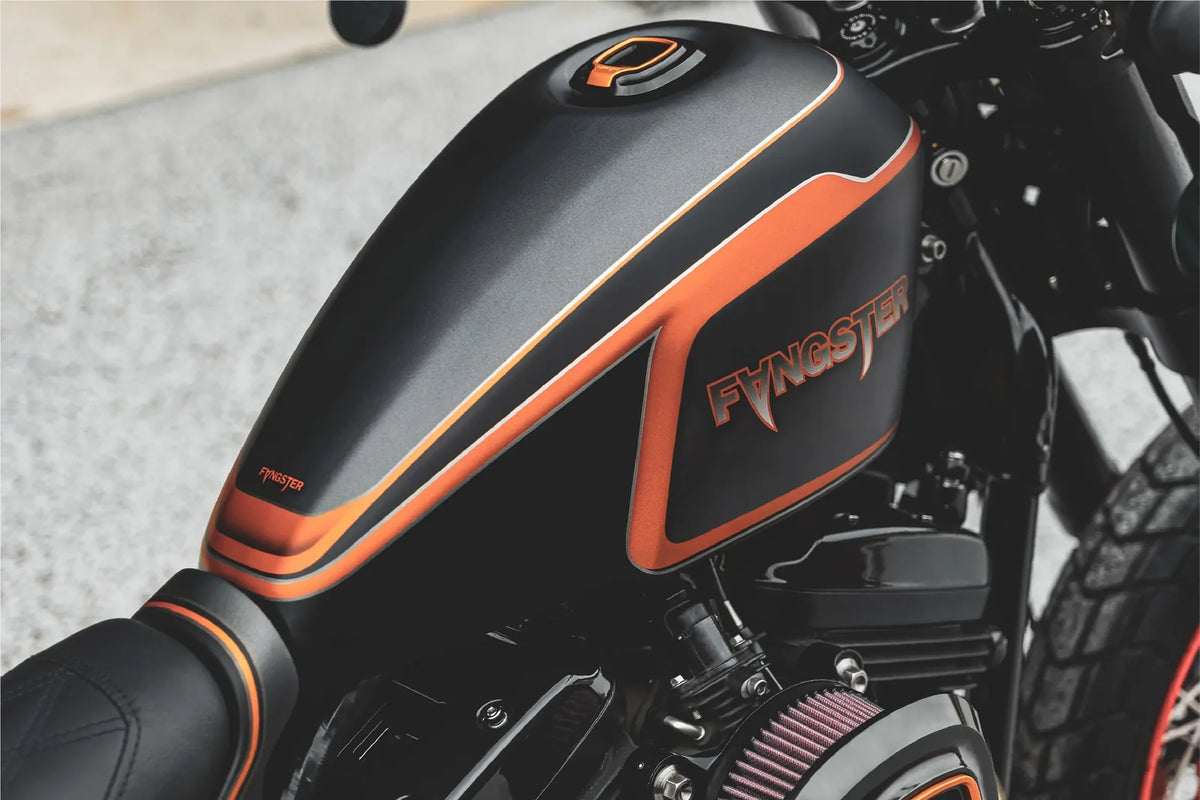

The Color Collection extends through the rider contact points, engine-side covers and wheels. The coordinated bodywork paint carries the finish across the motorcycle, allowing repeated colors and machined details to read as one complete system.

Build Specification

FANGSTER parts

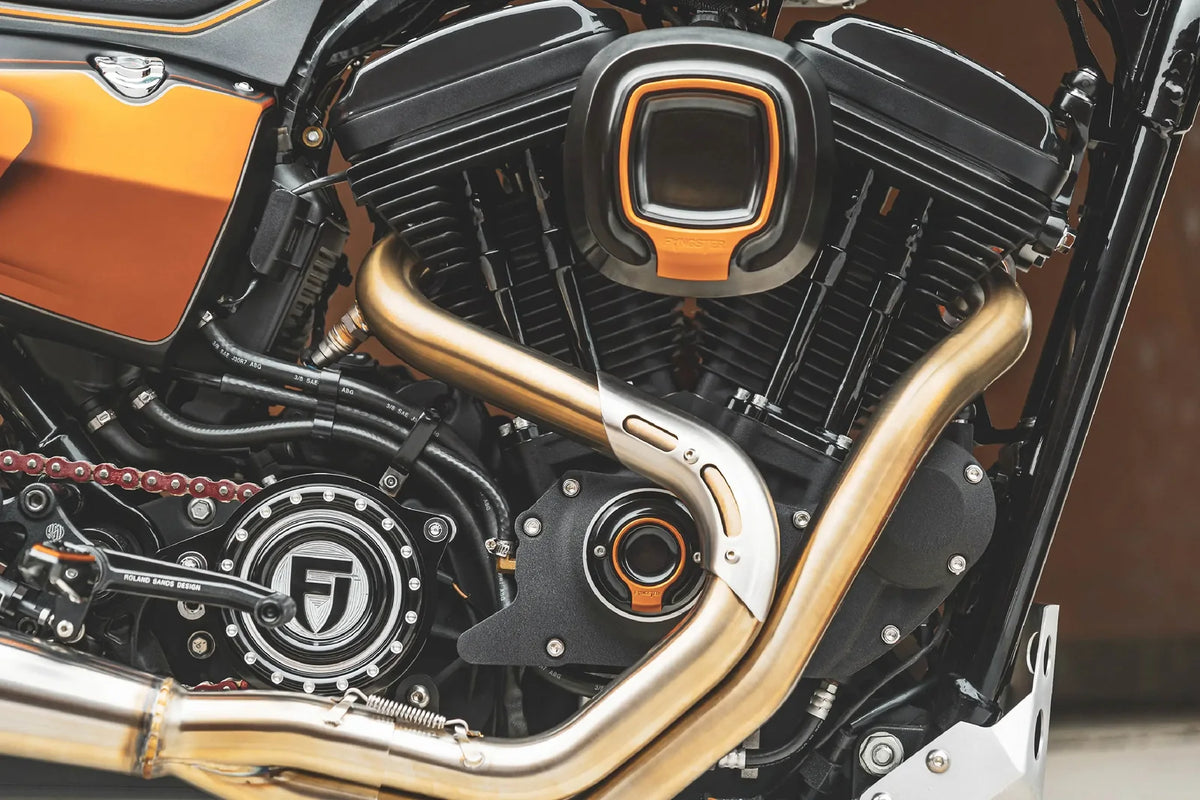

  • Color Collection footpegs, gas cap, air-cleaner cover and derby cover
  • 18 × 3 front wheel and 17 × 4.5 rear wheel

Chassis, wheels and brakes

  • Rebuffini Nexo 5.0 front end and RR108 brake calipers
  • Kodlin swingarm and Progressive 970 14-inch rear suspension
  • Galfer Cubiq rotors, Pirelli MT 60 RS tires and chain drive

Rider interface

  • Saddlemen Ronan bodywork and seat
  • Thrashin Supply low-bend handlebar and Domino quick throttle
  • Magura HC3 controls, Motone switches and Roland Sands Design rearsets

Finish and exhaust

  • Paint by Jeffrey’s Finishing Touch
  • Vance & Hines 2-into-1 exhaust
